LED Display Modules - China Sourcing


 Products List:  All Electrical  >>  LED Modules

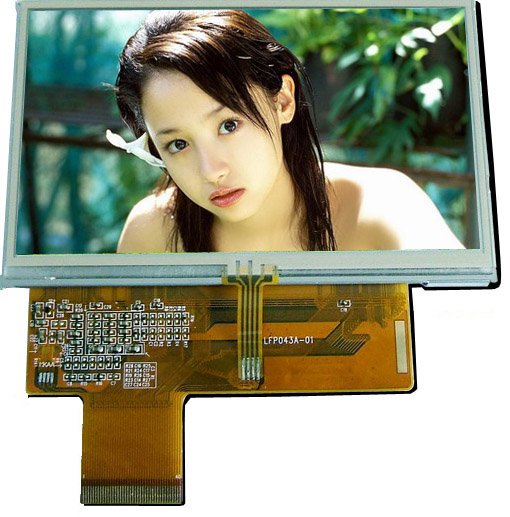

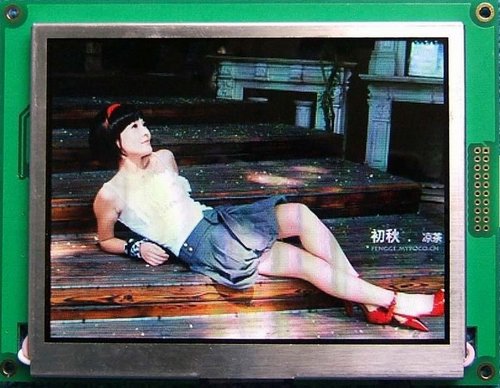

Character dot matrix | Graphic dot matrix | TFT module



Dot matrix characters module
Type
Characters of x line number
       Shape dimension
     WxHxT(mm)
Horizon size
WxH(mm)
Character size
WxH(mm)
    Dot size
WxH(mm)
Backlighting type
controller
Product pictures

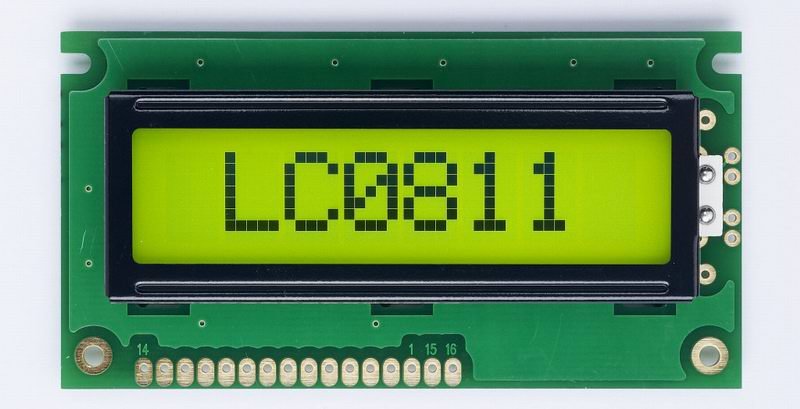

LC0811

    8 x 1
84.0 x 44.0 x 14.0
64.6 x 16.0
6.45 x 10.75
1.25 x 1.30
LED Green and yellow
S6A0069
Pictures

LC082H1

    8 x 2
40.0 x 35.4 x 8.0
30.4 x 13.9
2.95 x 4.75
0.55 x 0.55
S6A0069
Pictures

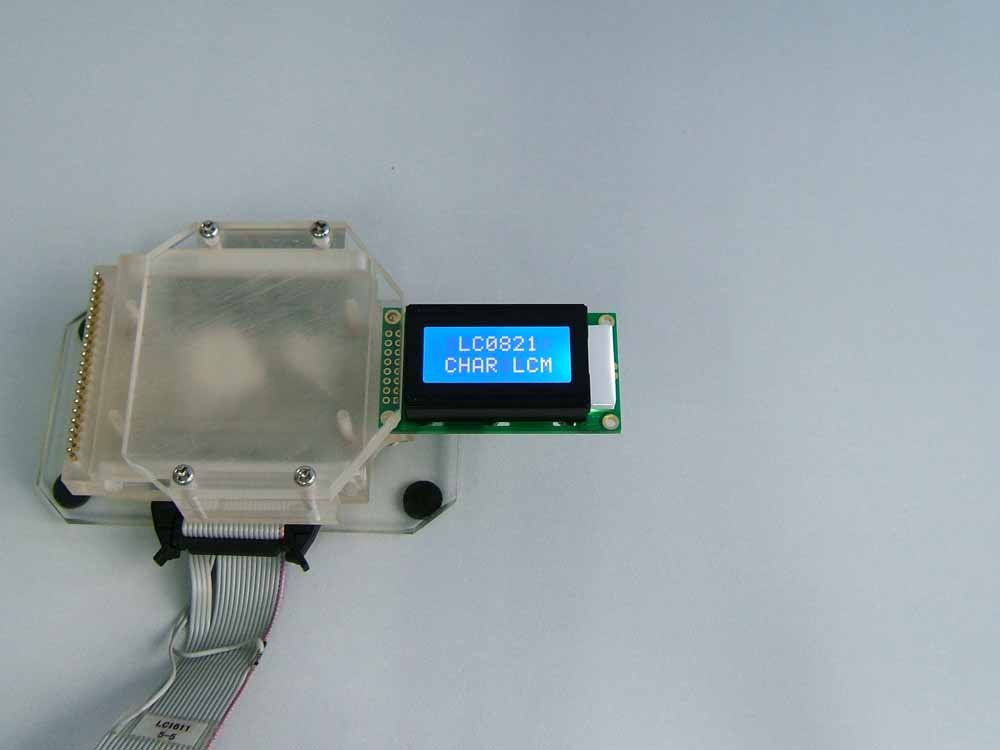

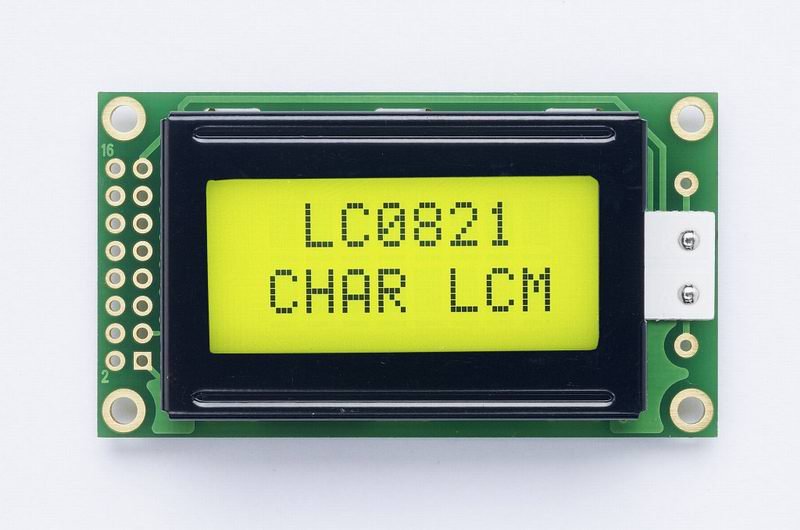

LC0821

    8 x 2
58.0 x 32.0 x 14..0
35.0 x 15.0
2.45 x 5.00
0.45 x 0.50
LED Green and yellow
S6A0069
Pictures

LC0821-DW

    8 x 2
58.0 x 32.0 x 14.0
35.0 x 15.0
2.45 x 5.00
0.45 x 0.50
LED 白色
S6A0069
Pictures

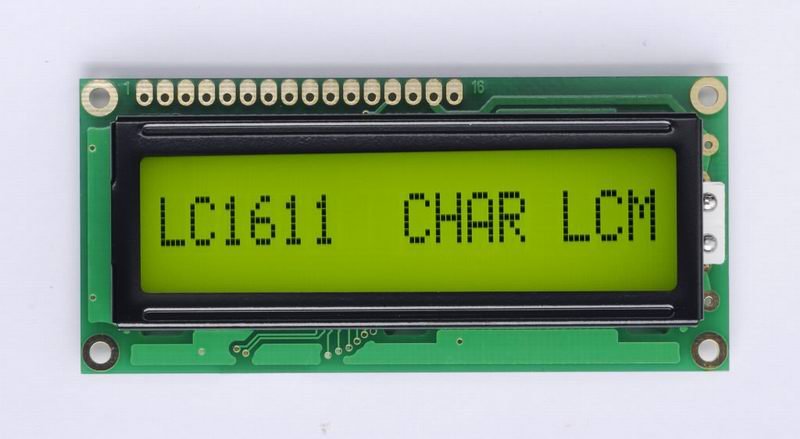

LC1611

    16 x 1
80.0 x 36.0 x 14.0
64.6 x 16.0
3.07 x 6.56
0.55 x 0.75
LEDGreen and yellow
S6A0069
Pictures

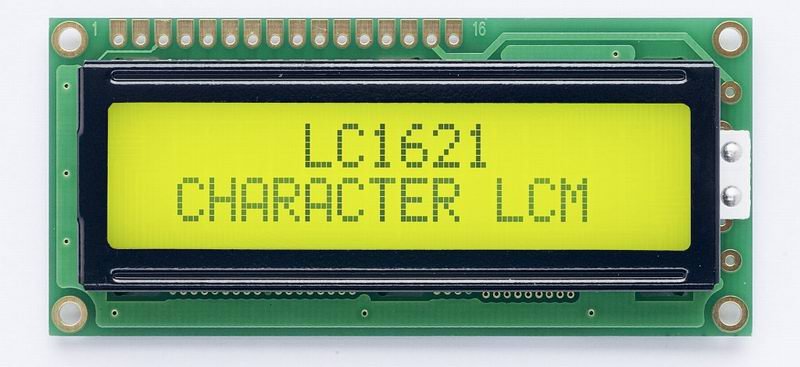

LC1621

    16 x 2
80.0 x 36.0 x 14.0
64.5 x 16.0
2.95 x 5.55
0.55 x 0.65
LEDGreen and yellow
S6A0069
Pictures

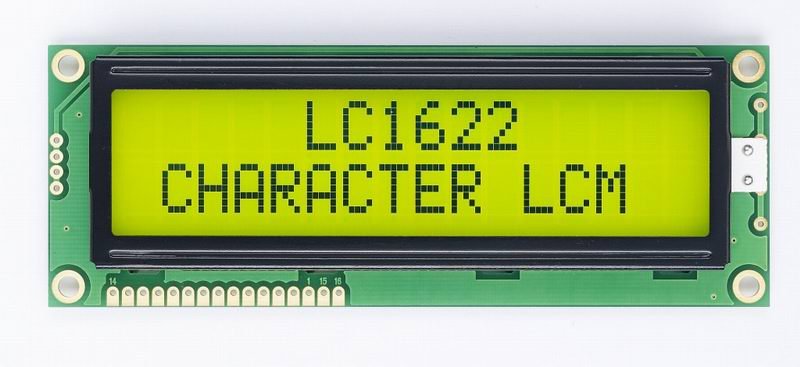

LC1622

    16 x 2
122.0 x 44.0 x 14.0
99.0 x 24.0
4.84 x 9.66
0.92 x 1.10
LEDGreen and yellow
S6A0069
Pictures

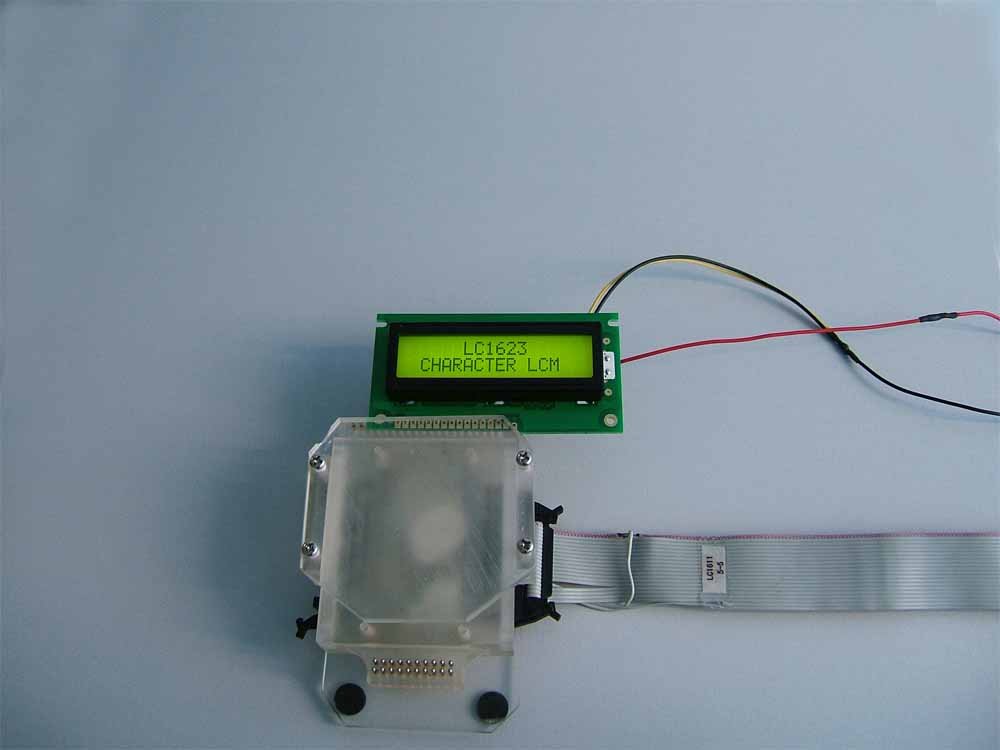

LC1623

    16 x 2
84.0 x 44.0 x 14.0
64.6 x 16.0
2.95 x 5.55
0.55 x 0.65
LEDGreen and yellow
S6A0069
Pictures

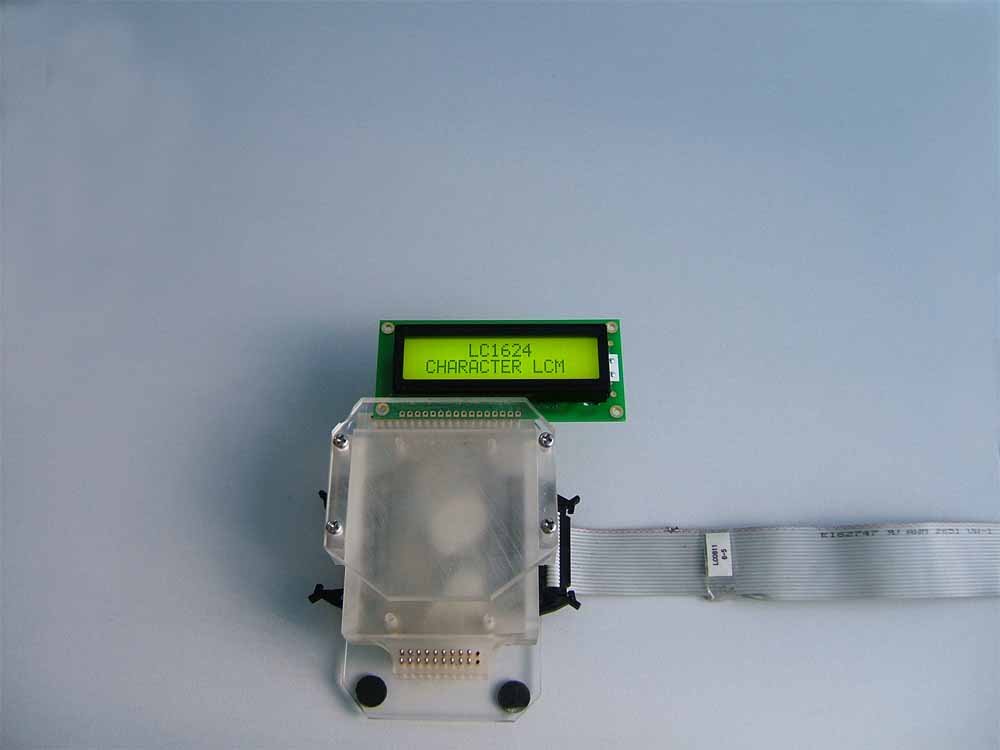

LC1624

    16 x 2
83.4 x 37.5 x 14.0
64.6 x 16.0
2.95 x 5.55
0.55 x 0.65
LEDGreen and yellow
S6A0069
Pictures

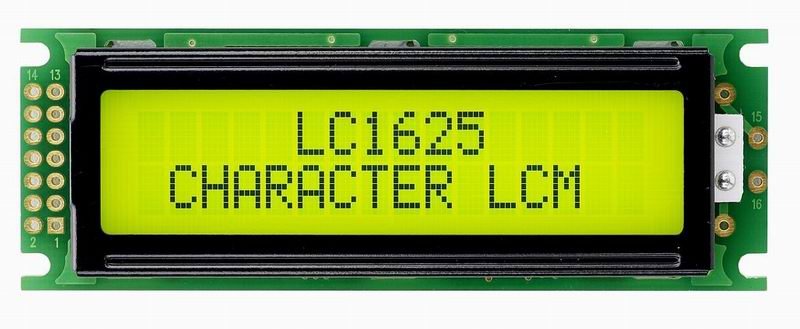

LC1625

    16 x 2
85.0 x 30.0 x 14.0
64.6 x 16.0
2.95 x 5.55
0.55 x 0.65
LEDGreen and yellow
S6A0069
Pictures

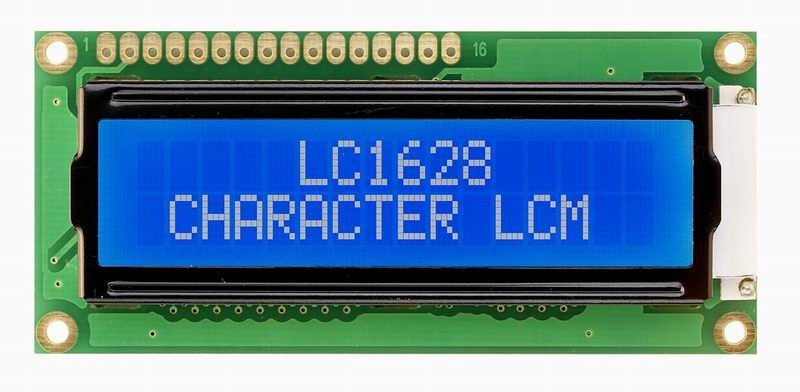

LC1628-DW

    16 x 2
80.0 x 36.0 x 12.0
64.5 x 16.0
2.96 x 5.56
0.56 x 0.66
LEDwhite
S6A0069
Pictures

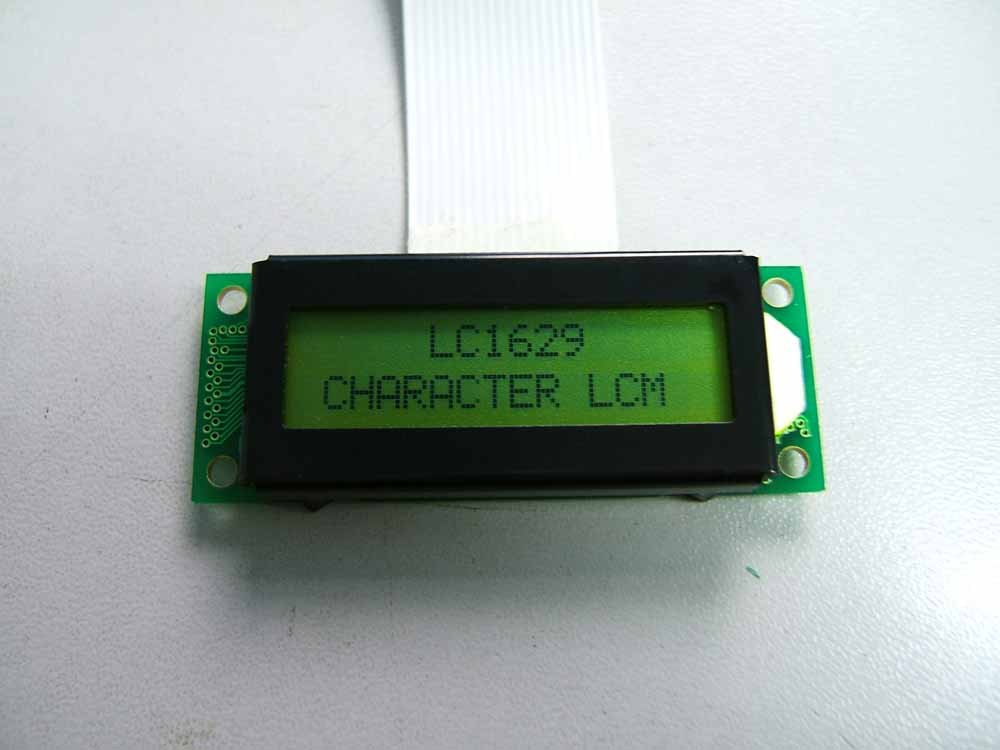

LC1629

    16 x 2
53.0 x 20.0 x 8.5
36.0 x 10.0
1.85 x 3.15
0.33 x 0.35
LEDGreen and yellow
S6A0069
Pictures

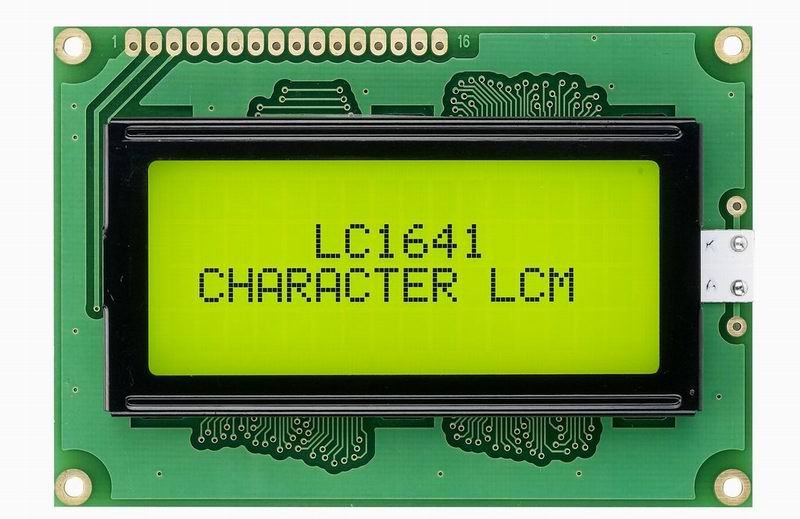

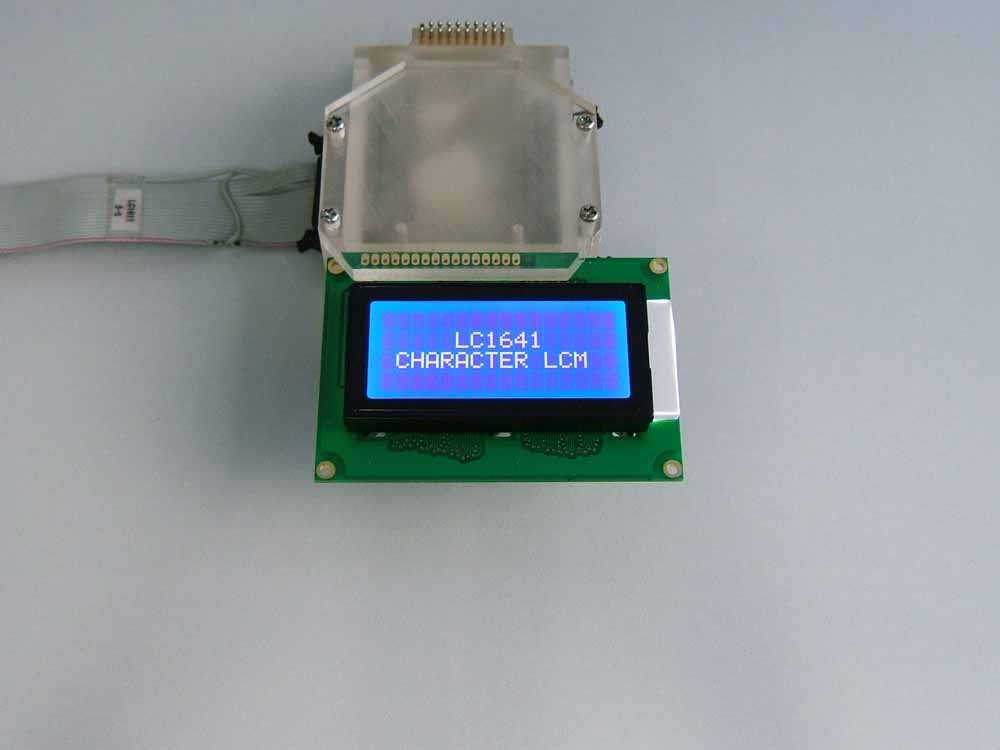

LC1641

    16 x 4
87.0 x 60.0 x 13.5
62.0 x 26.0
1.85 x 3.15
0.33 x 0.35
LEDGreen and yellow
S6A0069
Pictures

LC1641-DW

    16 x 4
87.0 x 60.0 x 13.5
62.0 x 26.0
2.95 x 4.75
0.55 x 0.55
LEDwhite
S6A0069
Pictures

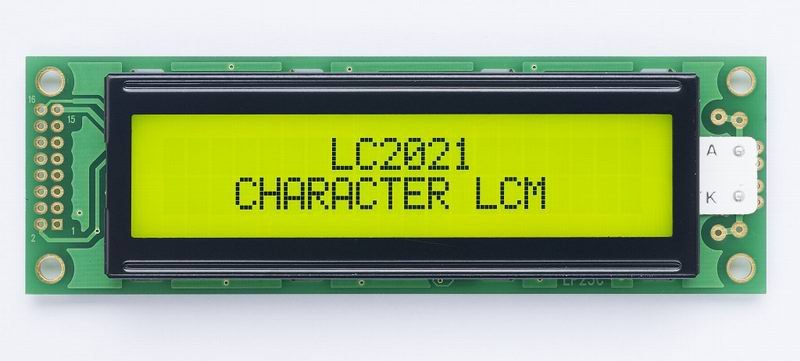

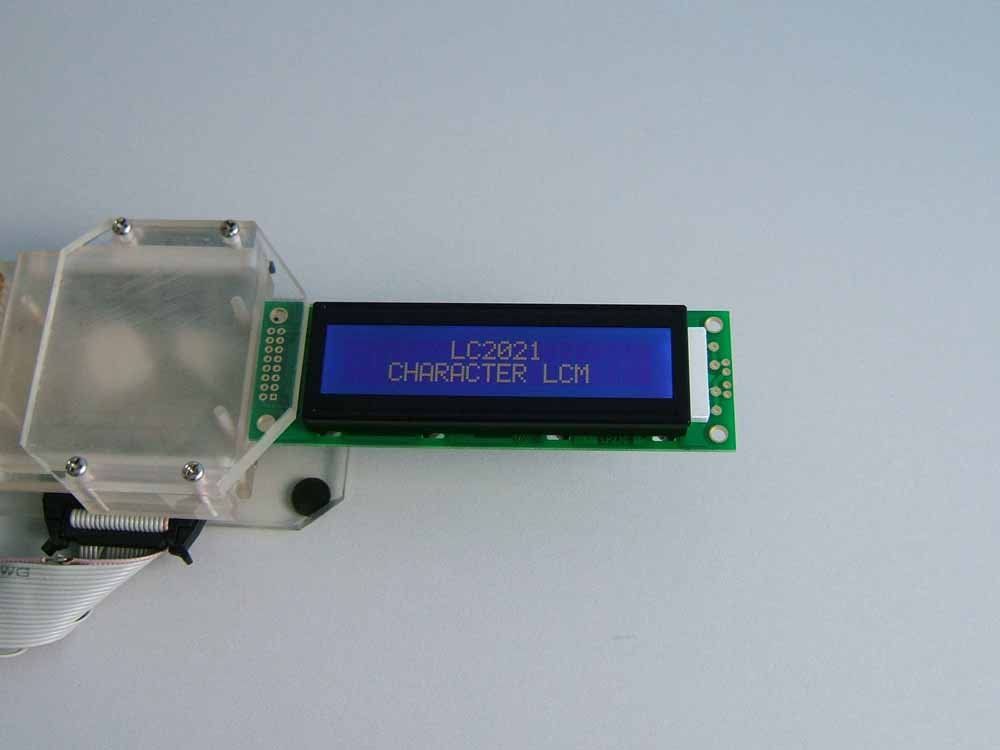

LC2021

    20 x 2
116.0 x 37.0 x 13.5
83.0 x 18.6
3.20 x 5.55
0.60 x 0.65
LEDGreen and yellow
S6A0069
Pictures

LC2021-DW

    20 x 2
116.0 x 37.0 x 13.5
83.0 x 18.6
3.20 x 5.55
0.60 x 0.65
LEDwhite
S6A0069
Pictures

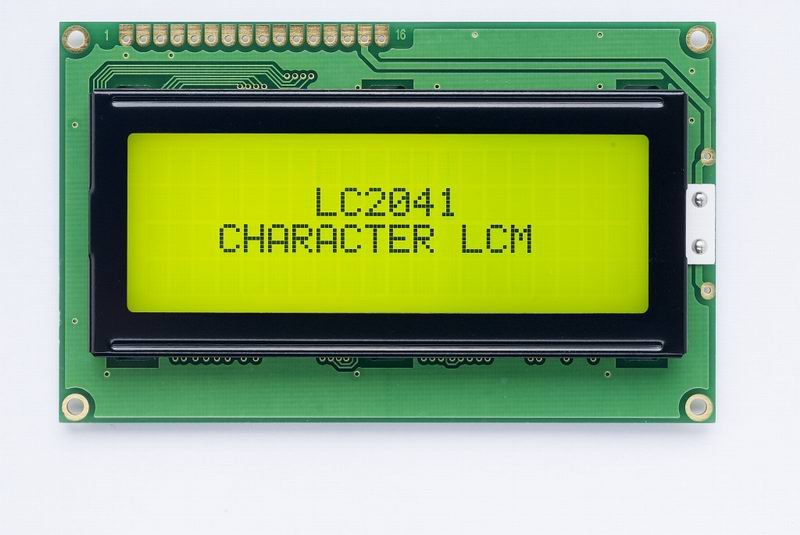

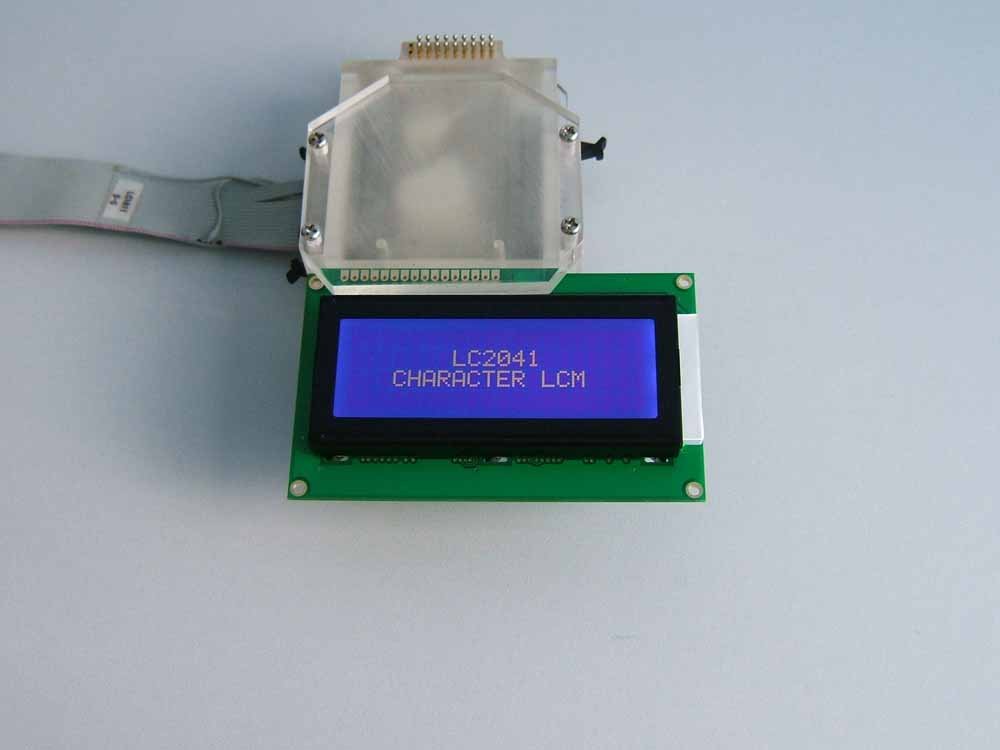

LC2041

    20 x 4
98.0 x 60.0 x 13.5
76.0 x 26.0
2.95 x 4.75
0.55 x 0.55
LEDGreen and yellow
S6A0069
Pictures

LC2041-DW

    20 x 4
98.0 x 60.0 x 13.5
76.0 x 26.0
2.95 x 4.75
0.55 x 0.55
LEDwhite
S6A0069
Pictures

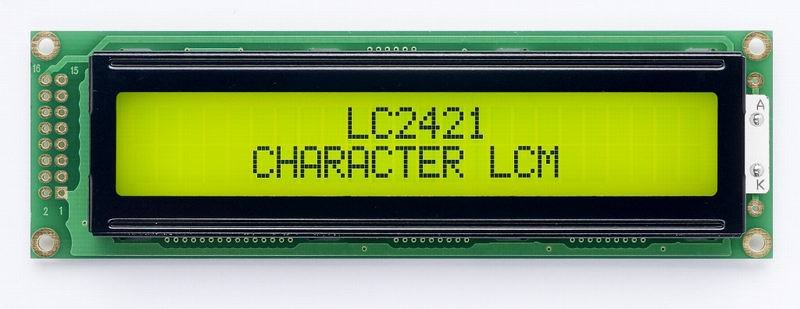

LC2421

    24 x 2
118.0 x 36.0 x 14.0
93.5 x 15.8
3.20 x 5.55
0.60 x 0.65
LEDGreen and yellow
S6A0069
Pictures

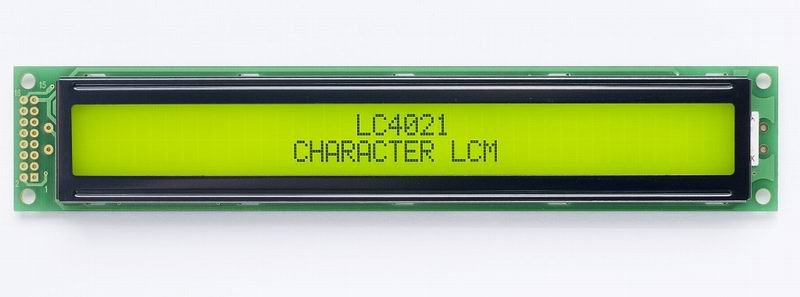

LC4021

    40 x 2
182.0 x 33.5 x 14.5
155.0 x 16.0
3.20 x 5.55
0.60 x 0.65
LEDGreen and yellow
S6A0069
Pictures

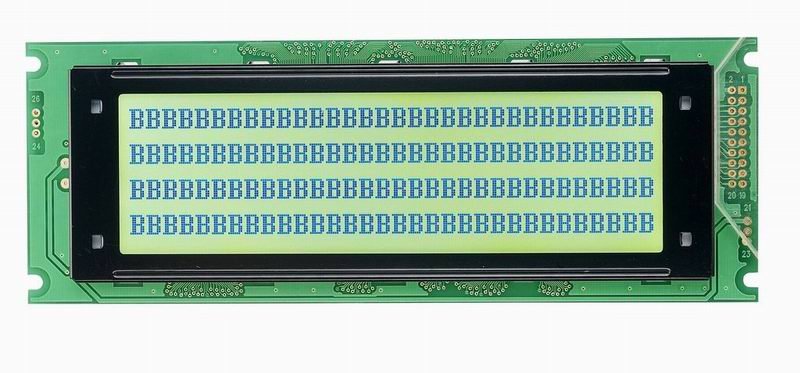

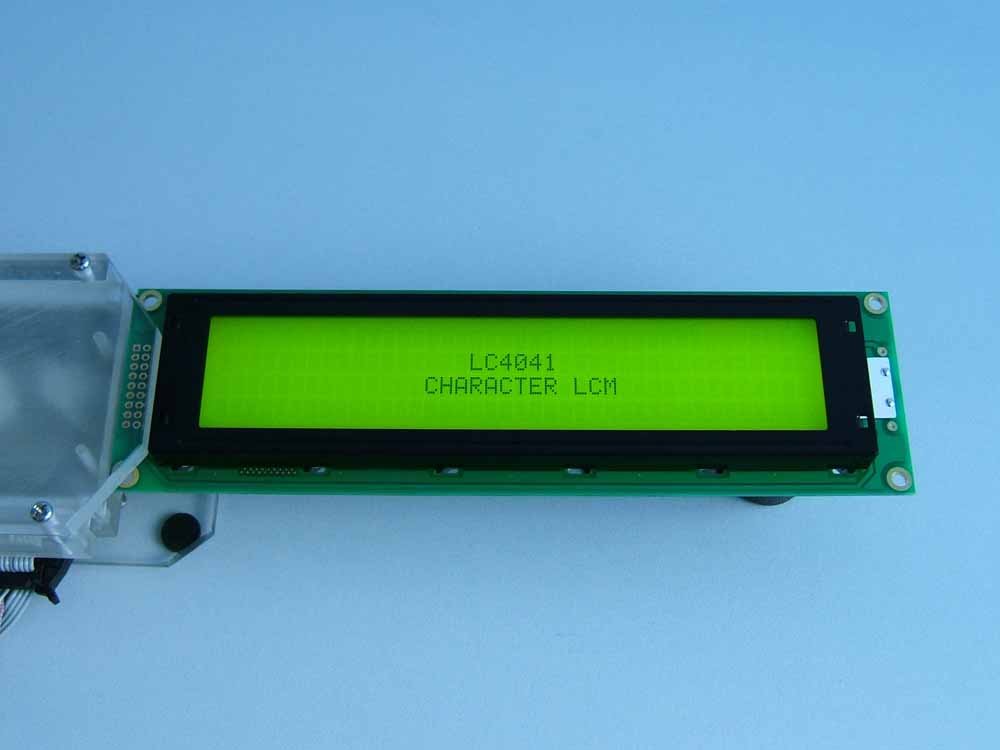

LC4041

    40 x 4
190.0 x 54.0 x 14.5
147.0 x 29.5
2.78 x 4.97
0.50 x 0.56
LEDGreen and yellow
S6A0069
Pictures
Graphic dot matrix module
Type
Bitmap number
       Shape dimension
     WxHxT(mm)
Horizon size
WxH(mm)
    Some distance
WxH(mm)
    Dot size
WxH(mm)
Backlighting type
controller
Product pictures

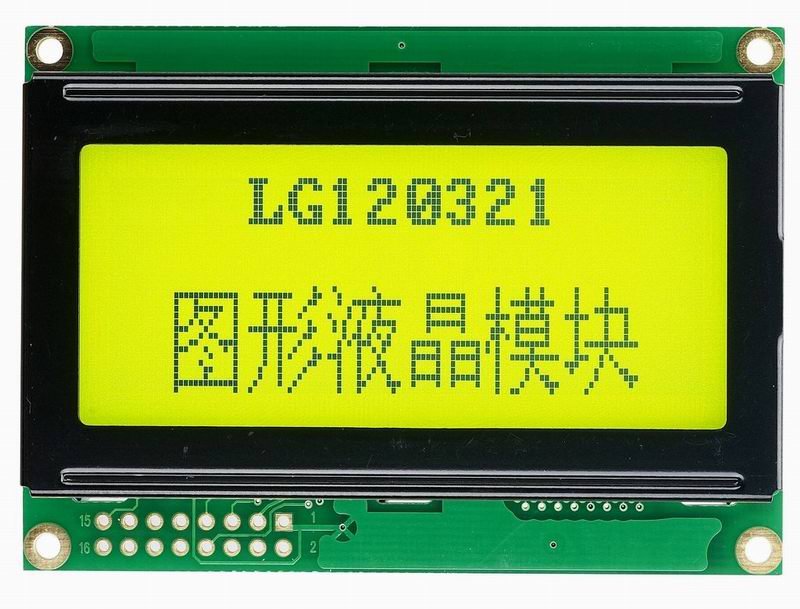

LG120321

    120 x 32
75.0 x 54.0 x 14.0
62.0 x 27.0
0.475 x 0.65
0.425 x 0.60
LEDGreen and yellow
SBN1661G_M18
Pictures

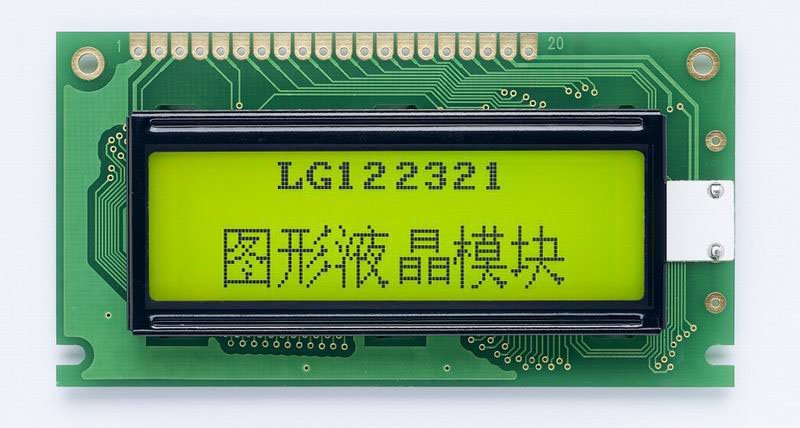

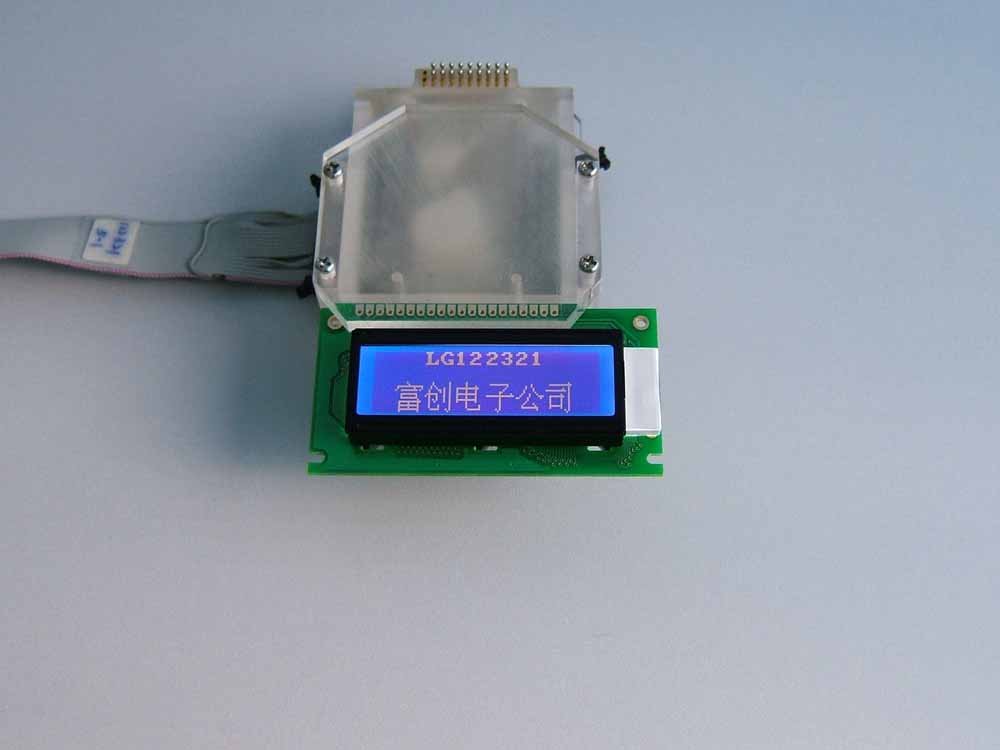

LG122321-LY

    122 x 32
84.0 x 44.0 x 13.5
60.5 x 18.5
0.44 x 0.49
0.40 x 0.45
LEDGreen and yellow
SBN1661G_M02
Pictures

LG122321-DW

    122 x 32
84.0 x 44.0 x 13.5
60.5 x 18.5
0.44 x 0.49
0.40 x 0.45
LEDwhite
SBN1661G_M02
Pictures

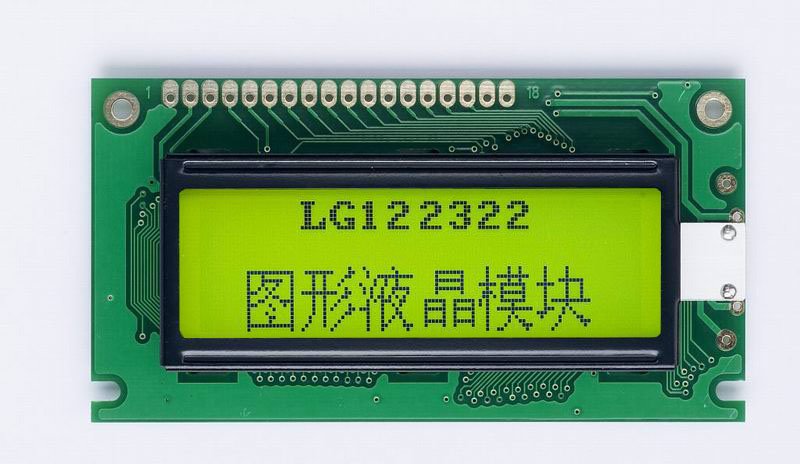

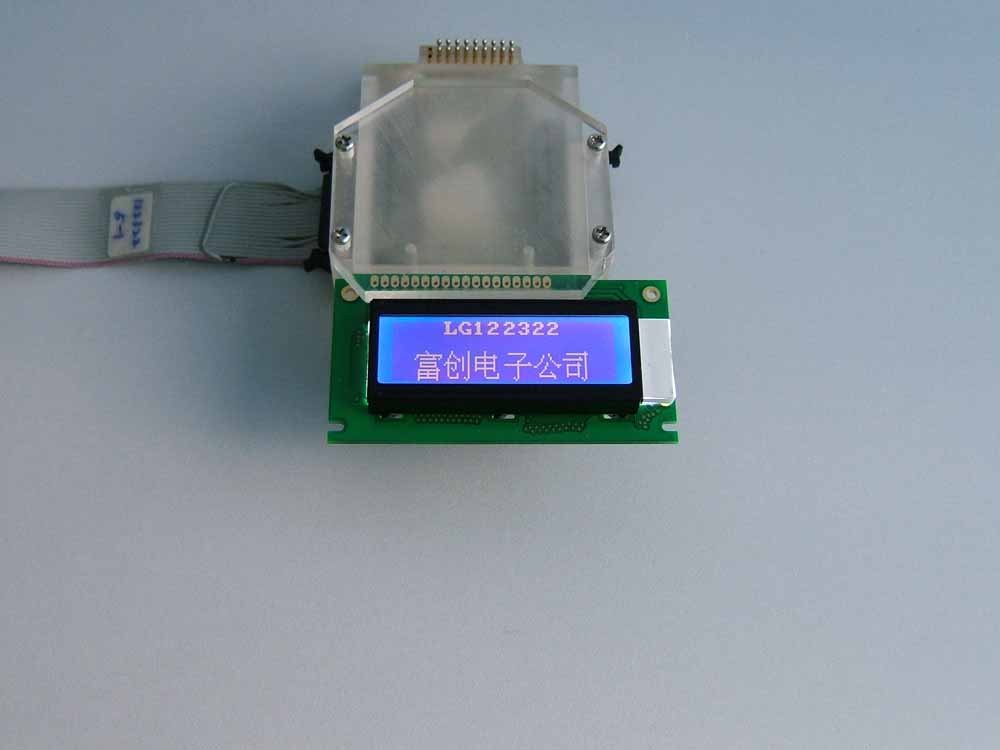

LG122322-LY

    122 x 32
84.0 x 44.0 x 13.5
60.5 x 18.5
0.44 x 0.49
0.40 x 0.45
LEDGreen and yellow
SBN1661G_M18
Pictures

LG122322-DW

    122 x 32
84.0 x 44.0 x 13.5
60.5 x 18.5
0.44 x 0.49
0.40 x 0.45
LEDwhite
SBN1661G_M18
Pictures

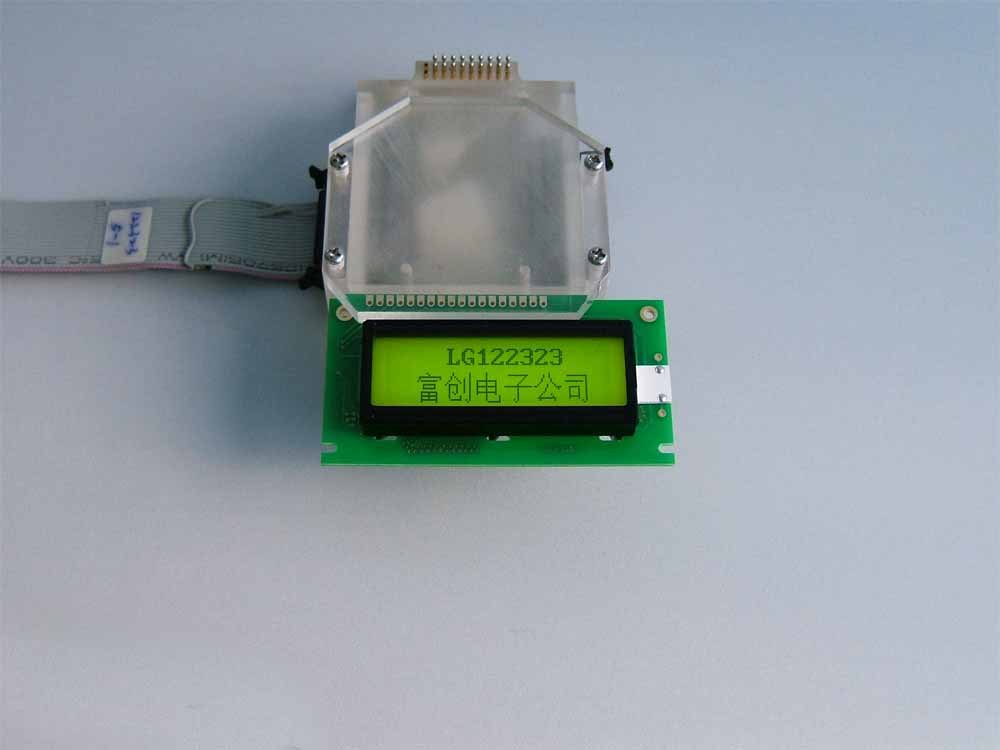

LG122323

    122 x 32
84.0 x 44.0 x 13.5
60.5 x 18.5
0.44 x 0.49
0.40 x 0.45
LEDGreen and yellow
ST7920
Pictures

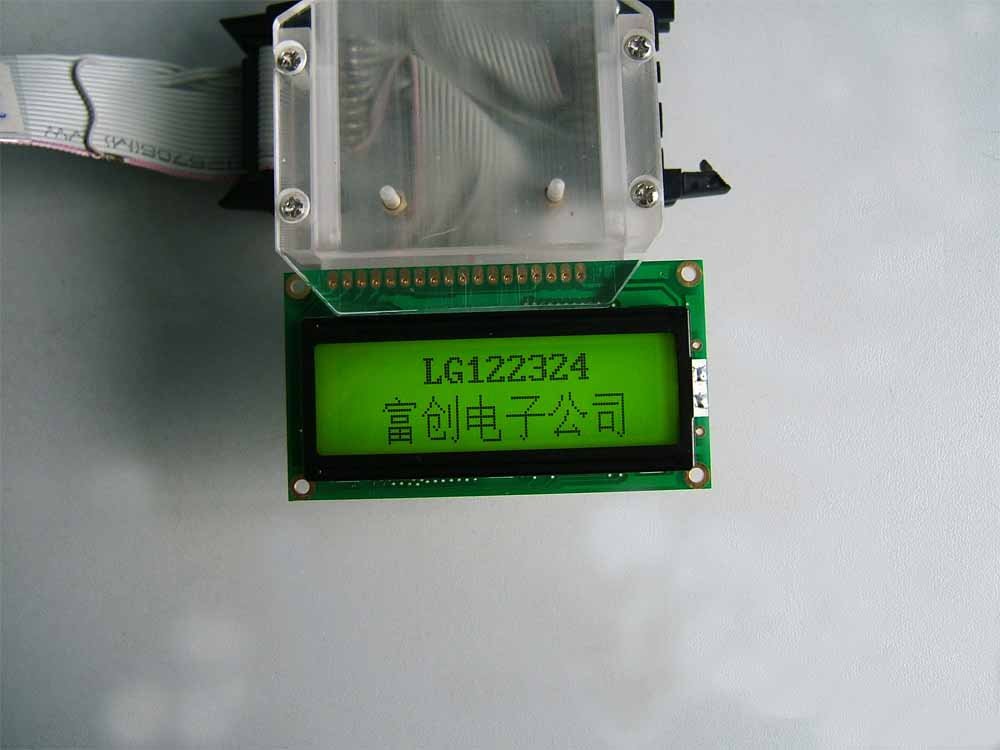

LG122324

    122 x 32
74.0 x 40.0 x 13.5
60.5 x 18.5
0.44 x 0.49
0.40 x 0.45
LEDGreen and yellow
ST7920
Pictures

LG122324-DW

    122 x 32
74.0 x 40.0 x 13.5
60.5 x 18.5
0.44 x 0.49
0.40 x 0.45
LEDwhite
ST7920
Pictures

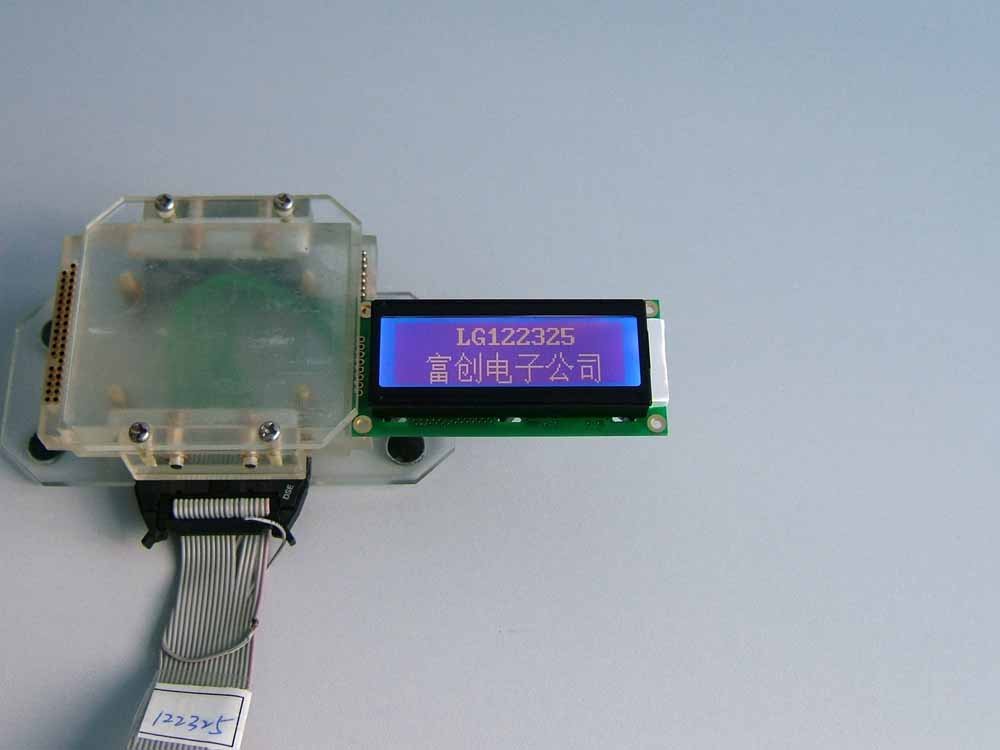

LG122325

    122 x 32
74.0 x 35.0 x 13.5
60.5 x 18.5
0.44 x 0.49
0.40 x 0.45
LEDGreen and yellow
ST7920
Pictures

LG122325-DW

    122 x 32
74.0 x 35.0 x 13.5
60.5 x 18.5
0.44 x 0.49
0.40 x 0.45
LEDwhite
ST7920
Pictures

LG122326

    122 x 32
65.4 x 29.1 x 6.0
55.0 x 19.1
0.40 x 0.45
0.36 x 0.41
LEDGreen and yellow
SBN1661G_M18
Pictures

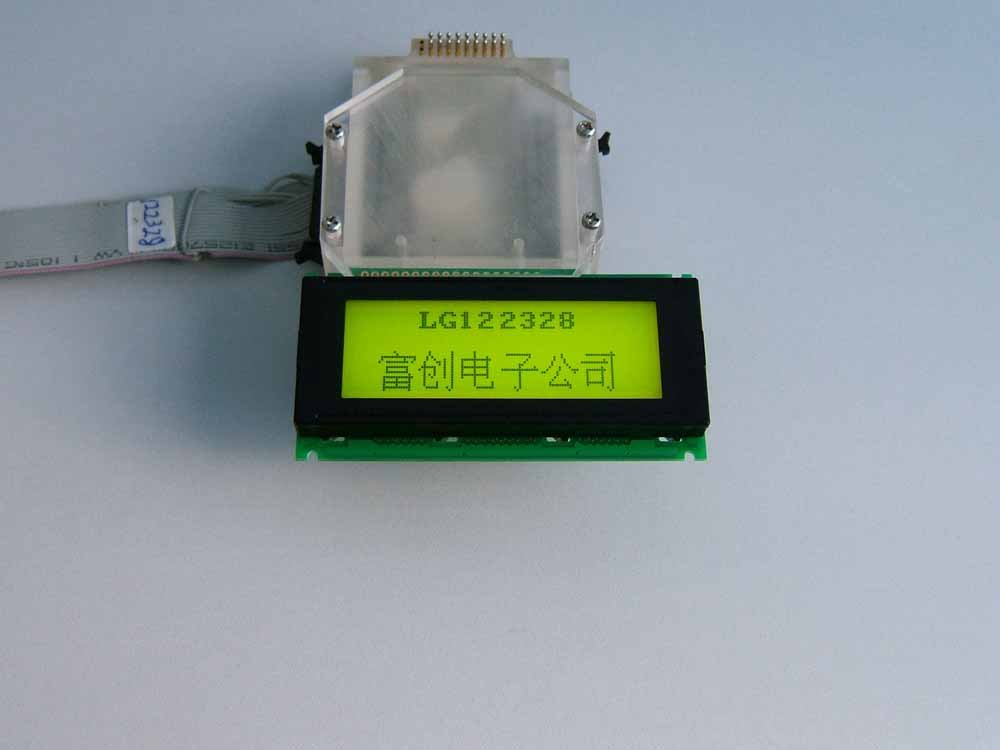

LG122328

    122 x 32
98.0 x 50.0 x 13.5
76.0 x 26.0
0.60 x 0.60
0.55 x 0.55
LEDGreen and yellow
SBN1661G_M18
Pictures

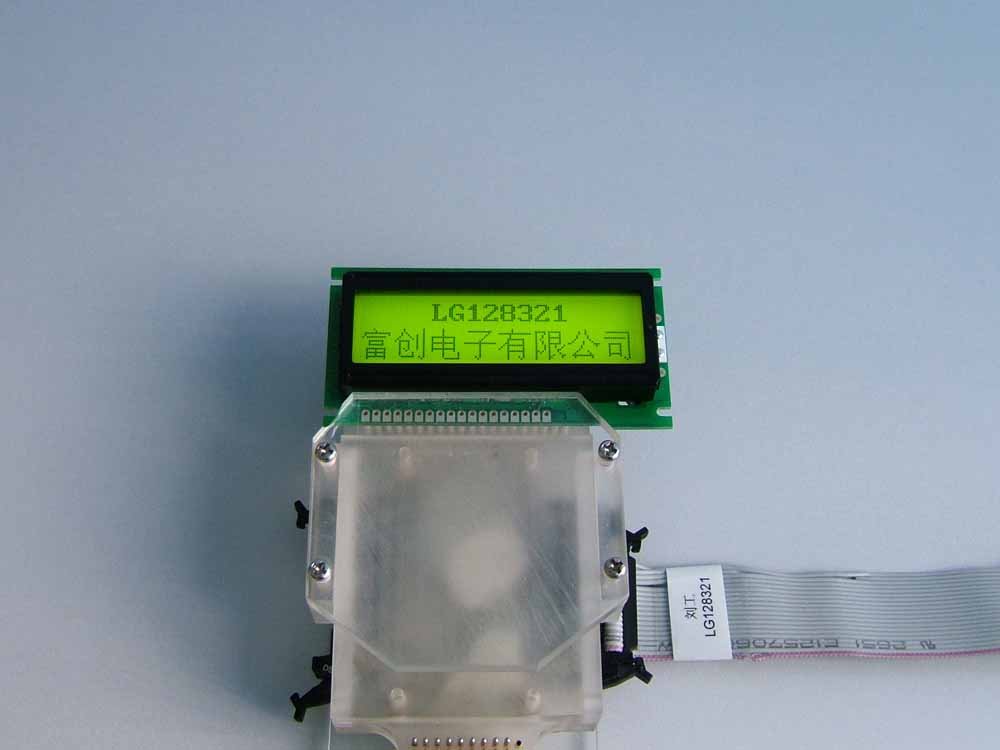

LG128321

    128 x 32
84.0 x 44.0 x 14.5
70.0 x 20.0
0.52 x 0.52
0.48 x 0.48
LEDGreen and yellow
ST7920
Pictures

LG128322

    128 x 32
58.0 x 55.0 x 6.5
54.0 x 18.0
0.40 x 0.50
0.36 x 0.46
LEDGreen and yellow
ST7920
Pictures

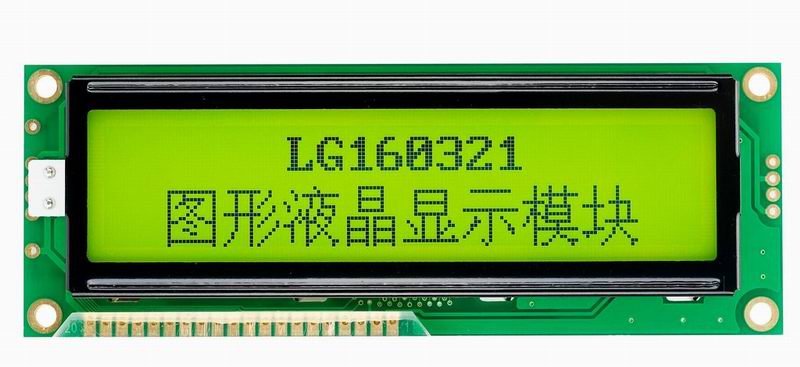

LG160321

    160 x 32
122.0 x 44.0 x14.0
99.0 x 24.0
0.59 x 0.60
0.55 x 0.56
LEDGreen and yellow
ST7920
Pictures

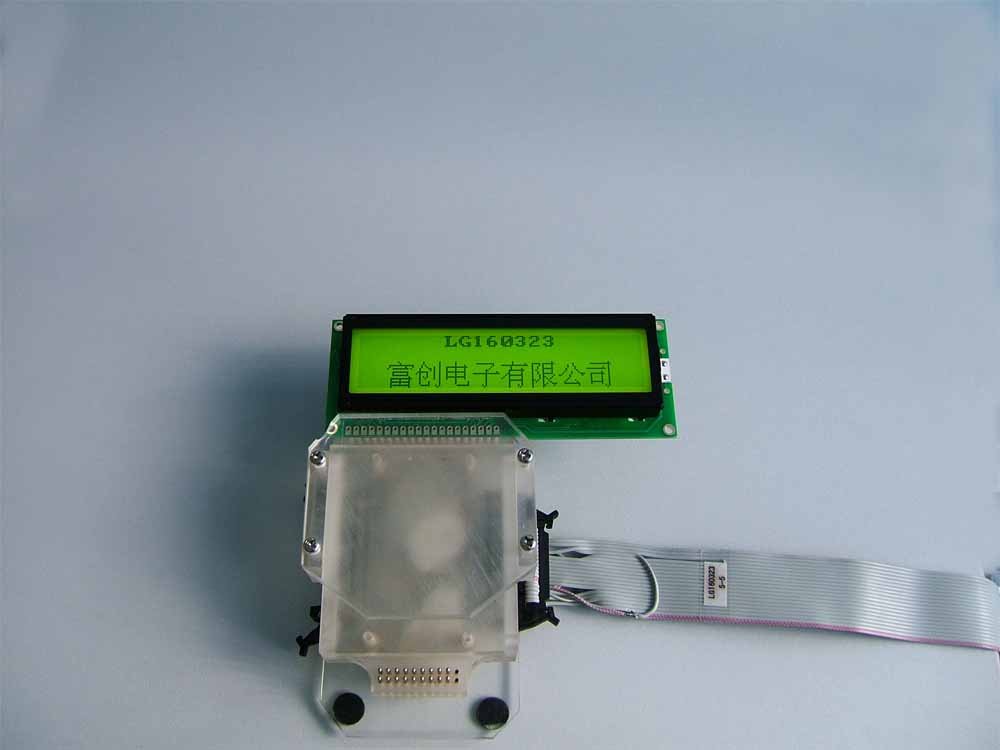

LG160323-LY

    160 x 32
116.0 x 44.0 x 14.0
99.0 x 24.0
0.59 x 0.60
0.55 x 0.56
LEDGreen and yellow
SBN0080G_S02
Pictures

LG160323-DW

    160 x 32
116.0 x 44.0 x 14.0
99.0 x 24.0
0.59 x 0.60
0.55 x 0.56
LEDwhite
SBN0080G_S02
Pictures

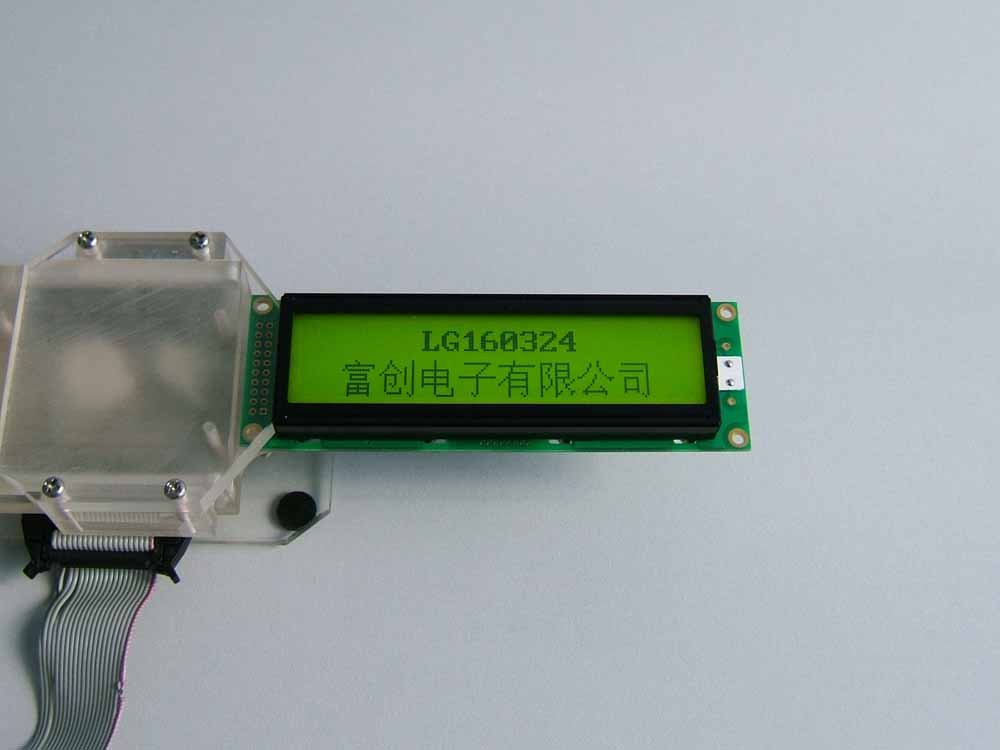

LG160324

    160 x 32
122.0 x 40.0 x 14.0
99.0 x 24.0
0.59 x 0.60
0.55 x 0.56
LEDGreen and yellow
ST7920
Pictures

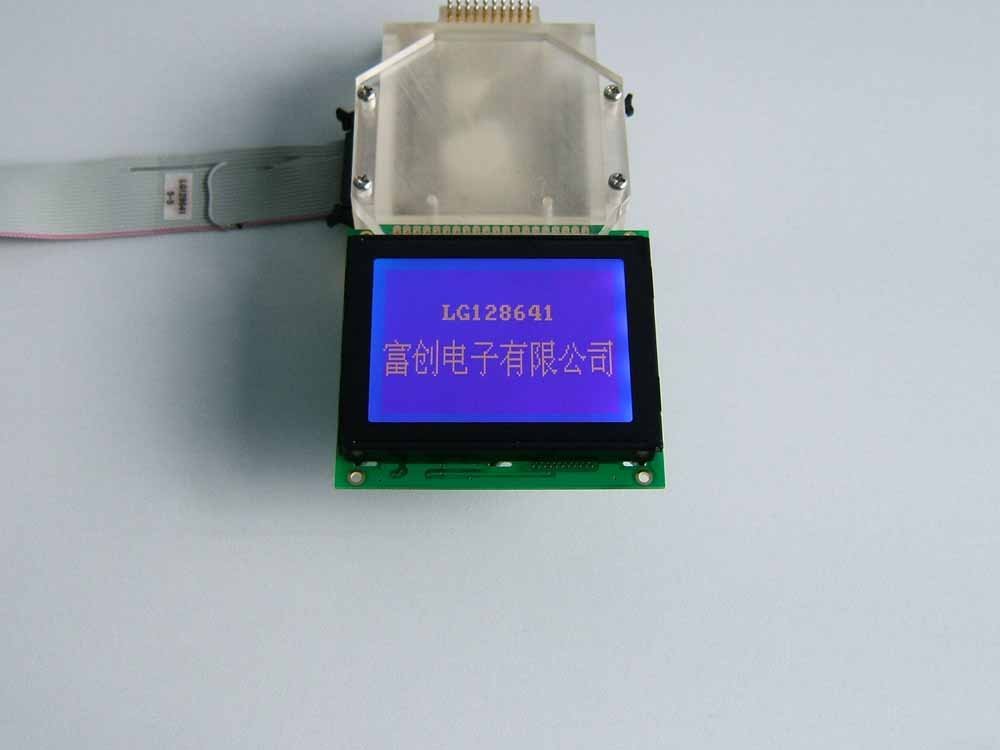

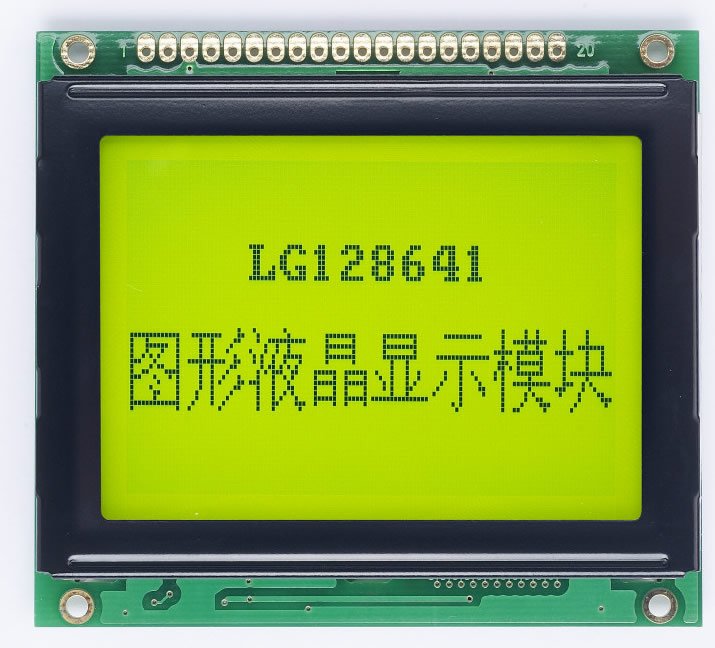

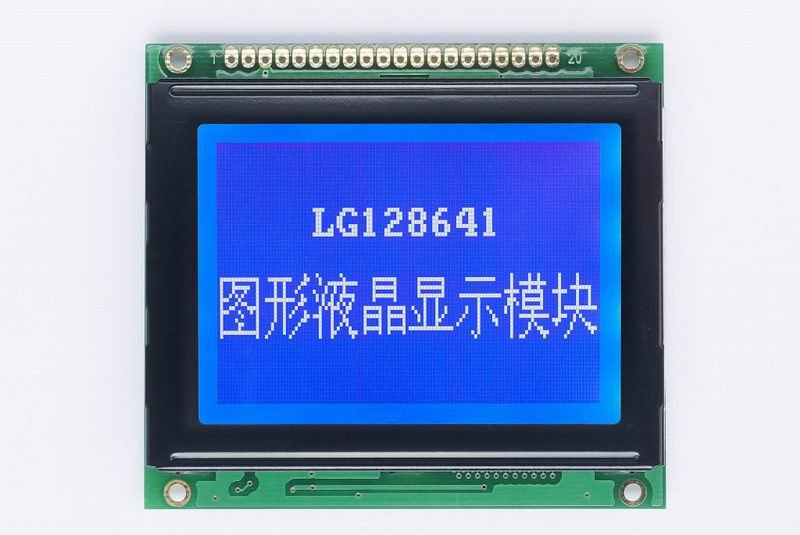

LG128641-LY

    128 x 64
78.0 x 70.0 x 13.0
62.0 x 44.0
0.44 x 0.60
0.40 x 0.56
LEDGreen and yellow
S6B0108
Pictures

LG128641-DW

    128 x 64
78.0 x 70.0 x 13.0
62.0 x 44.0
0.44 x 0.60
0.40 x 0.56
LEDwhite
S6B0108
Pictures

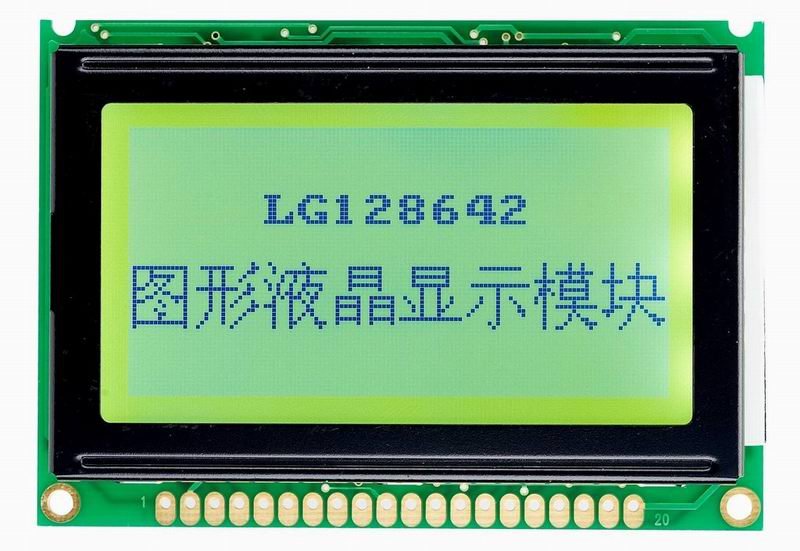

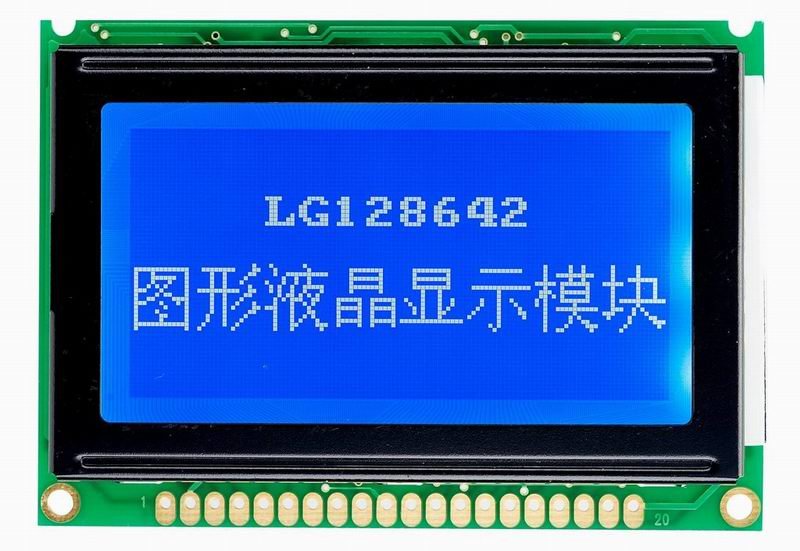

LG128642

    128 x 64
75.0 x 52.7 x 9.5
60.0 x 32.6
0.43 x 0.43
0.40 x 0.40
LEDGreen and yellow
S6B0108
Pictures

LG128642-DW

    128 x 64
75.0 x 52.7 x 11.5
60.0 x 32.6
0.43 x 0.43
0.40 x 0.40
LEDwhite
S6B0108
Pictures

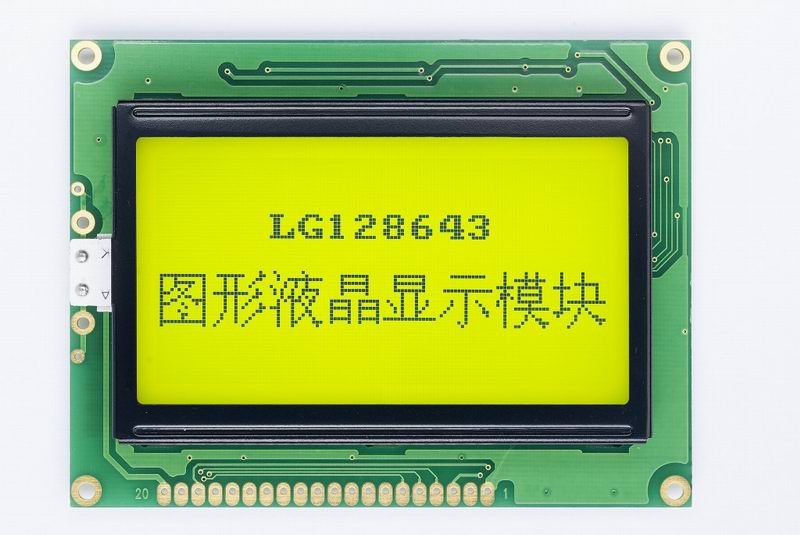

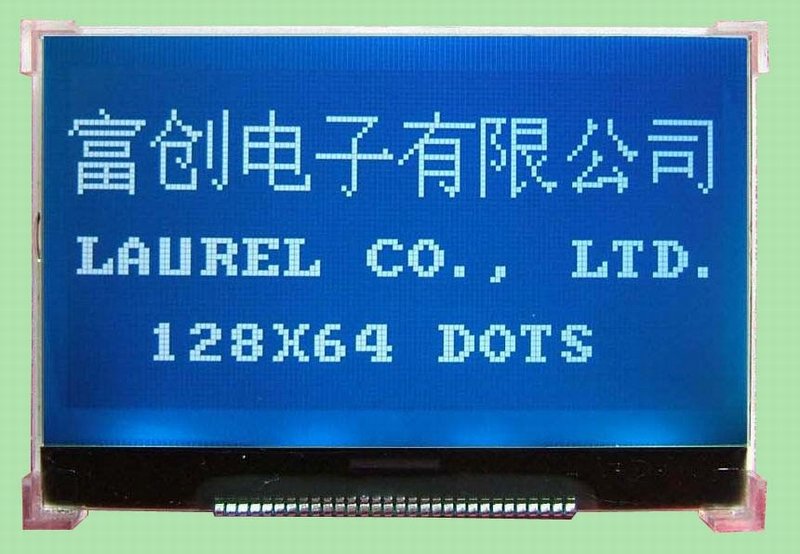

LG128643-LY

    128 x 64
93.0 x 70.0 x 13.5
72.0 x 39.0
0.52 x 0.52
0.48 x 0.48
LEDGreen and yellow
S6B0108
Pictures

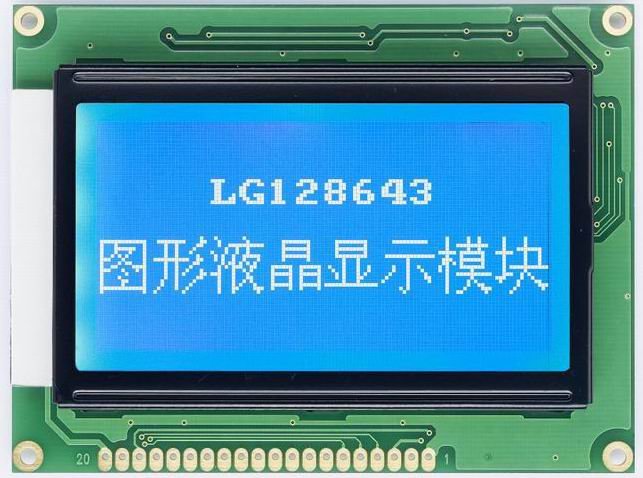

LG128643-DW

    128 x 64
93.0 x 70.0 x 13.5
72.0 x 39.0
0.52 x 0.52
0.48 x 0.48
LEDwhite
S6B0108
Pictures

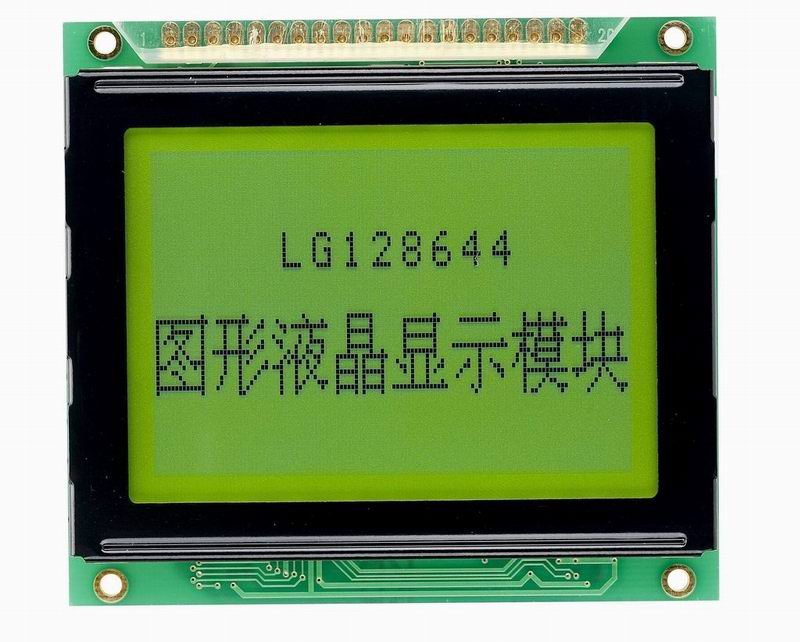

LG128644-Y

    128 x 64
78.0 x 70.0 x 13.5
62.0 x 44.0
0.44 x 0.60
0.40 x 0.56
LEDGreen and yellow
T6963C
Pictures

LG128644-DW

    128 x 64
78.0 x 70.0 x 13.5
62.0 x 44.0
0.44 x 0.60
0.40 x 0.56
LEDwhite
T6963C
Pictures

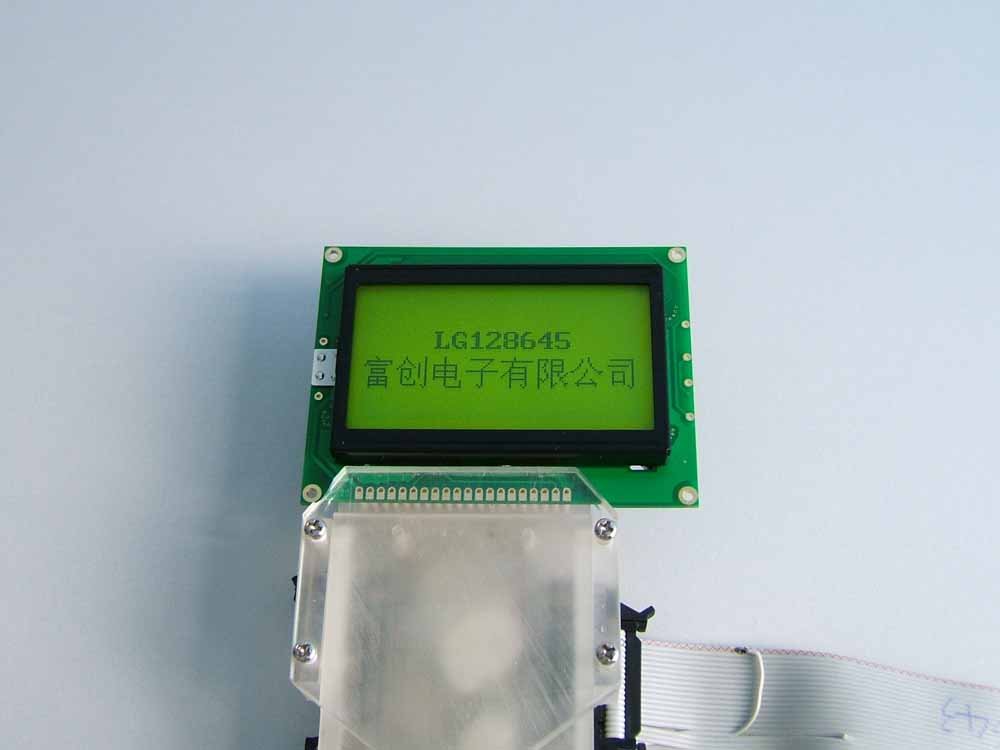

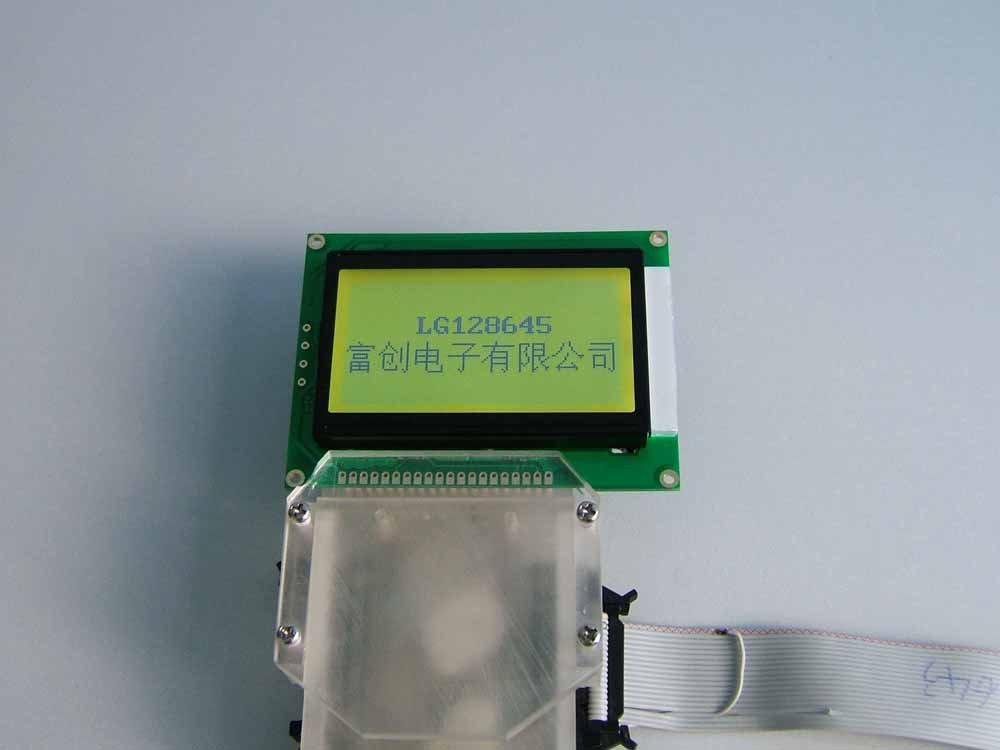

LG128645-LY

    128 x 64
93.0 x 70.0 x 13.5
72.0 x 39.0
0.52 x 0.52
0.48 x 0.48
LEDGreen and yellow
ST7920
Pictures

LG128645-DW

    128 x 64
93.0 x 70.0 x 13.5
72.0 x 39.0
0.52 x 0.52
0.48 x 0.48
LEDwhite
ST7920
Pictures

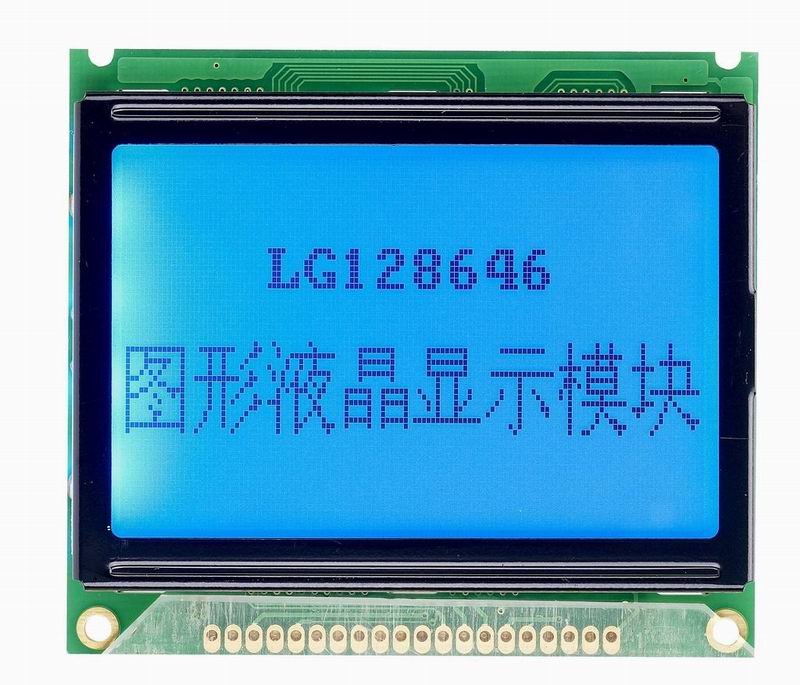

LG128646-FDB

    128 x 64
66.0 x 58.0 x 10.5
57.0 x 37.0
0.43 x 0.55
0.39 x 0.51
LED蓝
S6B0108
Pictures

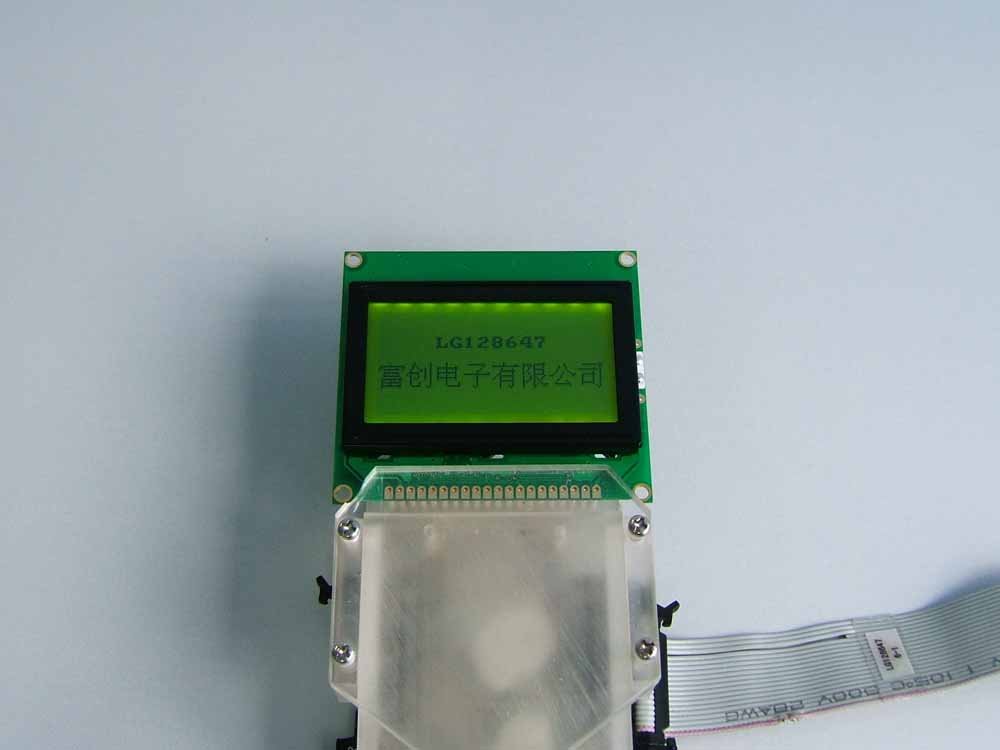

LG128647

    128 x 64
75.0 x 68 x 9.5
60.0 x 32.6
0.43 x 0.43
0.40 x 0.40
LEDGreen and yellow
S6B0108
Pictures

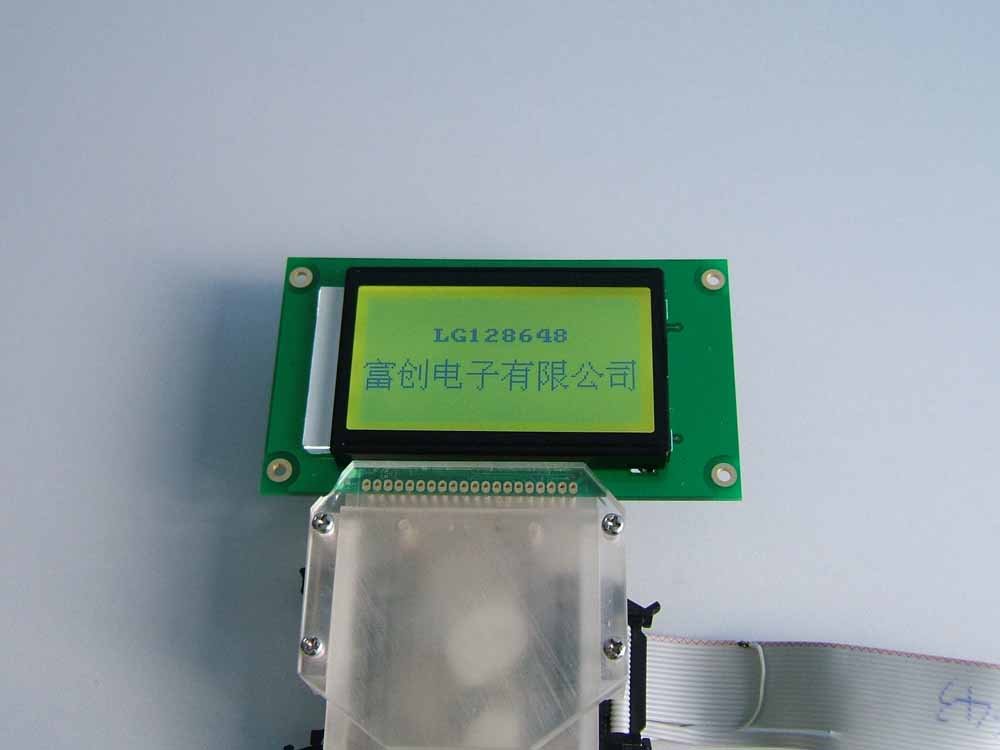

LG128648-DW

    128 x 64
113.0 x 65.0 x 13.5
72.0 x 39.0
0.52 x 0.52
0.48 x 0.48
LEDwhite
S6B0108
Pictures

LG12864A-DW

    128 x 64
77.0 x 56.0 x 11.5
60.0 x 32.6
0.43 x 0.43
0.40 x 0.40
LEDGreen and yellow
S6B0108
Pictures

LG12864B-SDW

    128 x 64
54.0 x 50.0 x 8.7
43.5 x 29.0
0.32 x 0.39
0.28 x 0.35
LEDwhite
S6B0108
Pictures

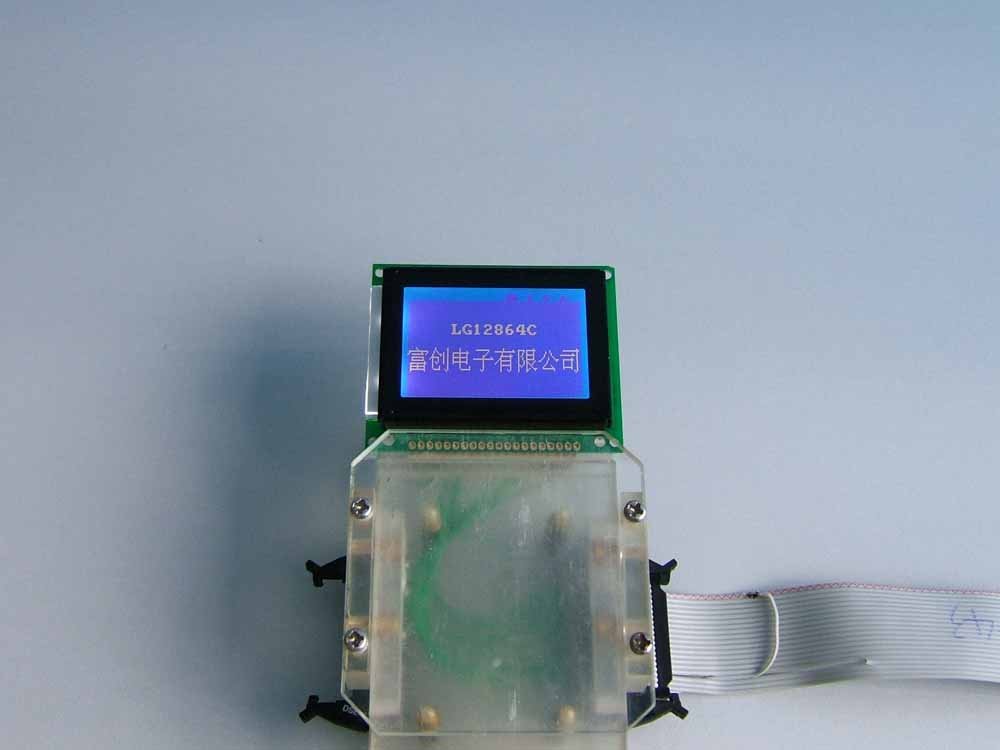

LG12864C-BDW

    128 x 64
60.0 x 50.0 x 11.5
43.5 x 29.0
0.32 x 0.39
0.28 x 0.35
LEDwhite
S6B0108
Pictures

LG12864D-BDW

    128 x 64
71.0 x 57.0 x 12.0
43.5 x 29.0
0.32 x 0.39
0.28 x 0.35
LEDwhite
S6B0108
Pictures

LG12864E-LDW

    128 x 64
64.6 x 44.6 x 8.5
58.6 x 31.0
0.43 x 0.43
0.41 x 0.41
LED白
ST7565P
Pictures

LG12864E-FDW

    128 x 64
64.6 x 44.6 x 8.5
58.6 x 31.0
0.43 x 0.43
0.41 x 0.41
LED white
ST7565P
Pictures

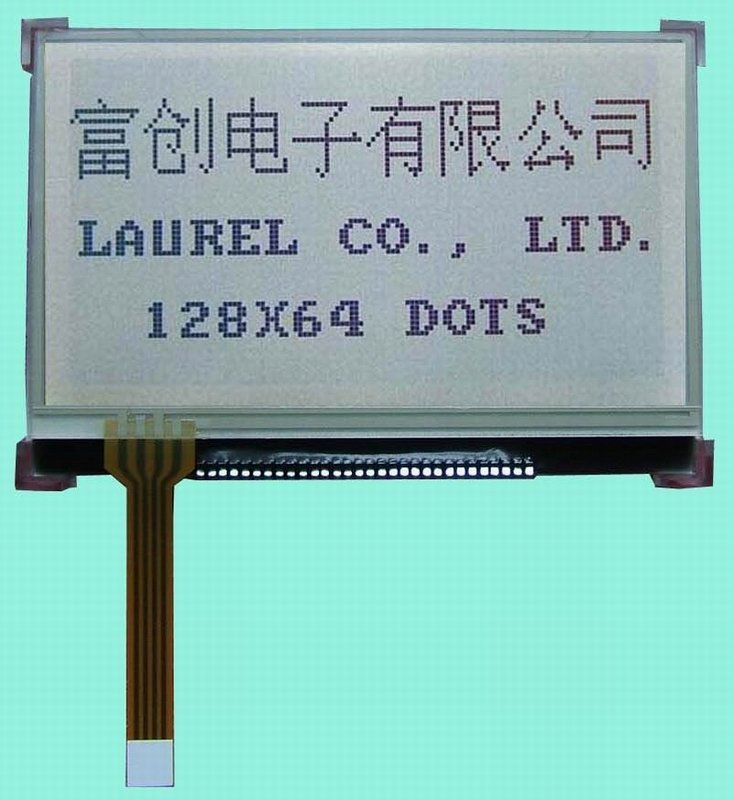

LG12864F-DW-TP

    128 x 64
77.4 x 52.4 x 12.3
70.0 x 40.0
0.52 x 0.52
0.48 x 0.48
LEDwhite
ST7565P
Pictures

LG12864F-FDW

    128 x 64
77.4 x 52.4 x 12.3
70.0 x 40.0
0.52 x 0.52
0.48 x 0.48
LEDwhite
ST7565P
Pictures

LG12864F-LDW

    128 x 64
77.4 x 52.4 x 12.3
70.0 x 40.0
0.52 x 0.52
0.48 x 0.48
LEDwhite
ST7565P
Pictures

LG12864G-LY

    128 x 64
89.7 x 49.8 x 11.8
66.8 x 35.5
0.50 x 0.50
0.48 x 0.48
LED Y/G
SPLC501C
Pictures

LG12864H-DW

    128 x 64
44.5 x 39.5 x 8.5
39.0 x 28.0
0.282 x 0.36
0.252 x 0.33
LEDwhite
ST7565P
Pictures

LG12864J-DW

    128 x 64
51.0 x 38.0 x 8.5
46.0 x 26.0
0.345 x 0.36
0.315 x 0.33
LEDwhite
ST7565P
Pictures

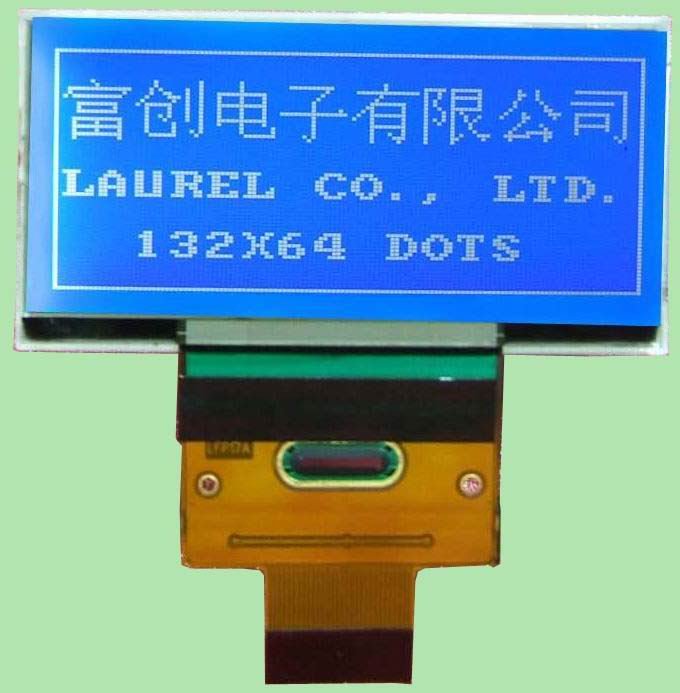

LG132641-DW

    132 x 64
67.4 x 34.9 x 5.0
59.0 x 26.0
0.41 x 0.34
0.37 x 0.30
LED white
NT7534H
Pictures

LG192641-DW

    192 x 64
113.0 x 71.0 x 13.0
97.0 x 48.0
0.48 x 0.66
0.44 x 0.62
LEDwhite
S6B0108
Pictures

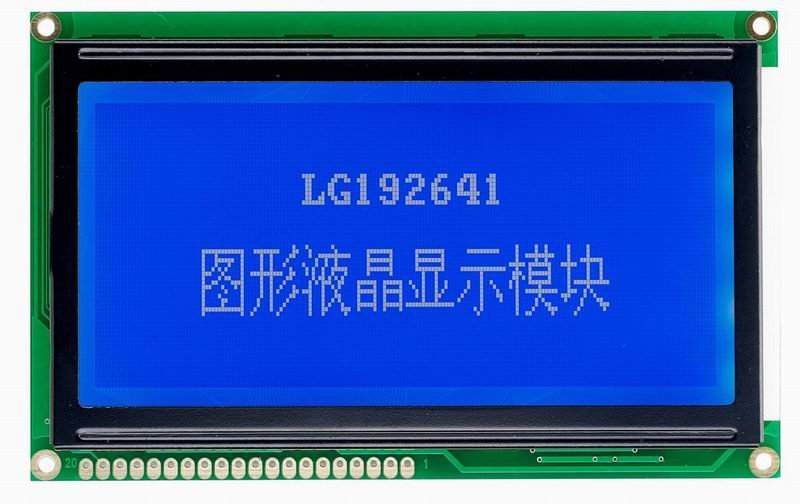

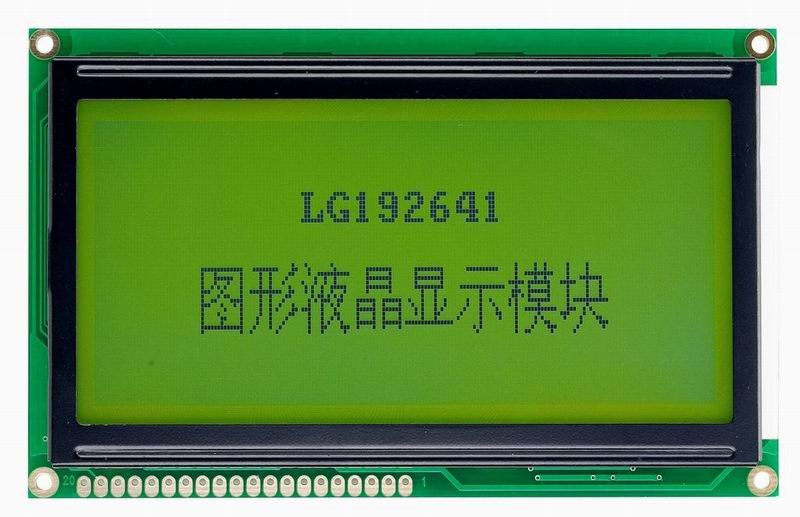

LG192641

    192 x 64
113.0 x 71.0 x 15.5
97.0 x 48.0
0.48 x 0.66
0.44 x 0.62
LEDGreen and yellow
S6B0108
Pictures

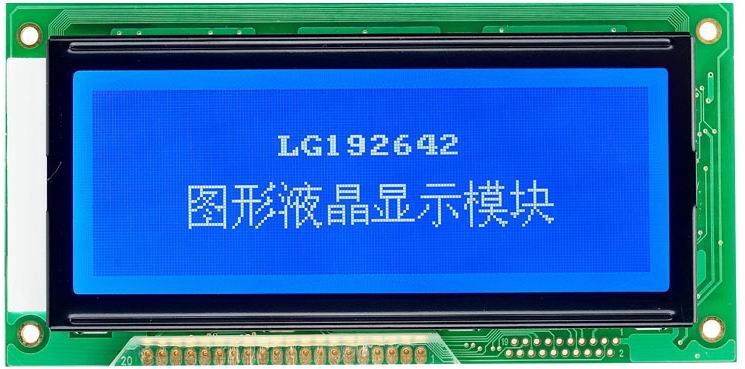

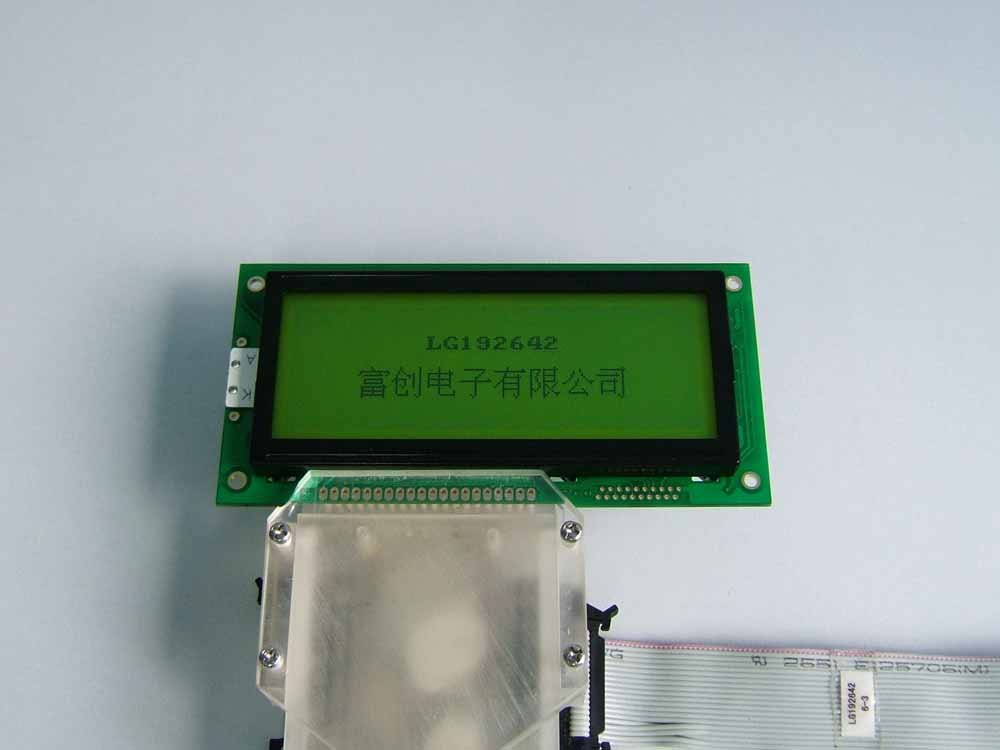

LG192642

    192 x 64
130.0 x 65.0 x 13.0
104.0 x 39.0
0.51 x 0.51
0.46 x 0.46
LEDGreen and yellow
S6B0108
Pictures

LG192642-DW

    192 x 64
130.0 x 65.0 x 13.0
104.0 x 39.0
0.51 x 0.51
0.46 x 0.46
LEDwhite
S6B0108
Pictures

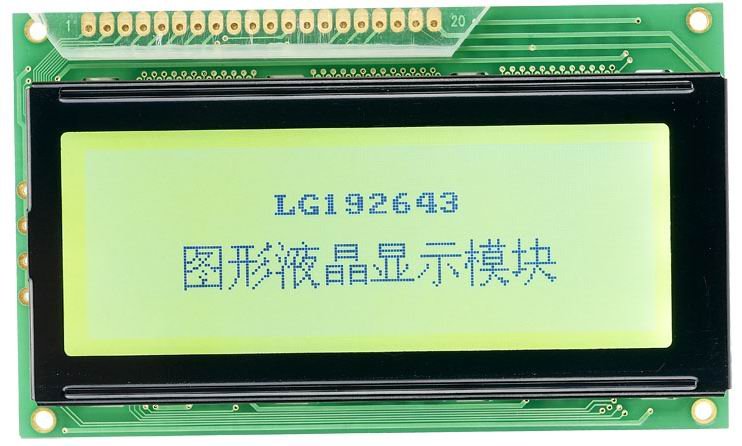

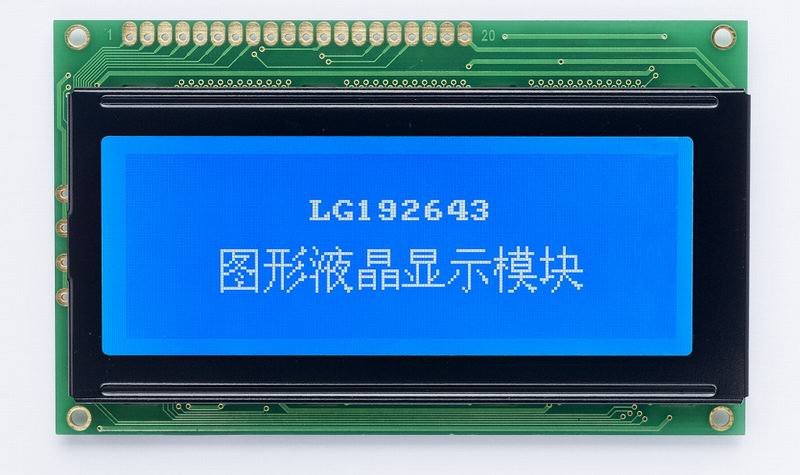

LG192643-SDW

    192 x 64
100.0 x 60.0 x 12.5
84.0 x 31.0
0.41 x 0.41
0.37 x 0.37
LEDwhite
S6B0108
Pictures

LG192643-BDW

    192 x 64
100.0 x 60.0 x 12.5
84.0 x 31.0
0.41 x 0.41
0.37 x 0.37
LEDwhite
S6B0108
Pictures

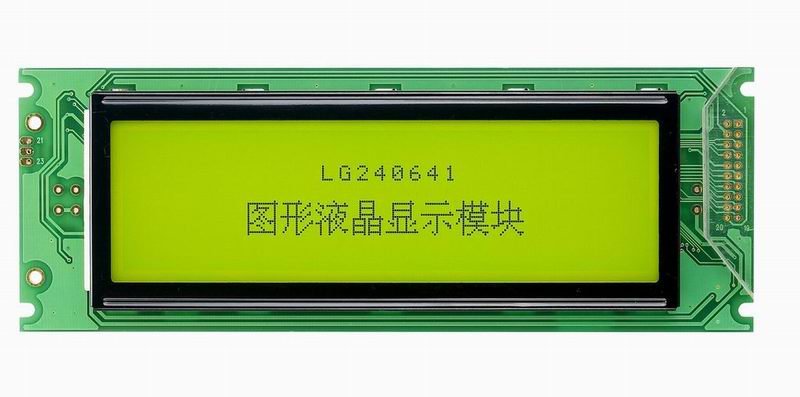

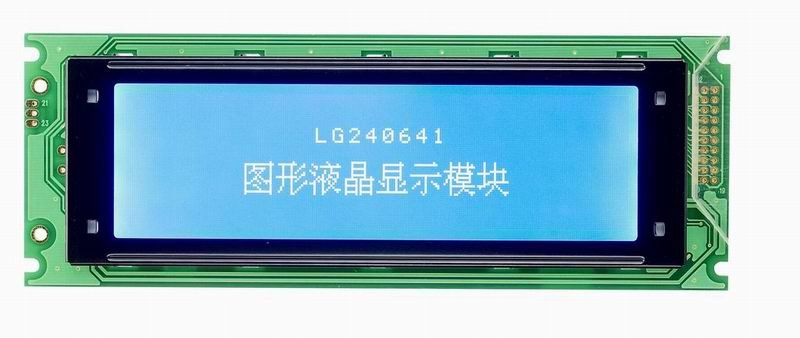

LG240641

    240 x 64
180.0 x 65.0 x 16.5
132.0 x 39.0
0.53 x 0.53
0.49 x 0.49
LEDGreen and yellow
T6963C
Pictures

LG240641-DW

    240 x 64
180.0 x 65.0 x 14.0
132.0 x 39.0
0.53 x 0.53
0.49 x 0.49
LEDwhite
T6963C
Pictures

LG240643

    240 x 64
180.0 x 75.0 x 15.5
132.0 x 39.0
0.53 x 0.53
0.49 x 0.49
LEDGreen and yellow
S6B0108
Pictures

LG256641

    256 x 64
180.0 x 65.0 x 15.5
132.0 x 39.0
0.50 x 0.54
0.46 x 0.50
LEDGreen and yellow
ST7920
Pictures

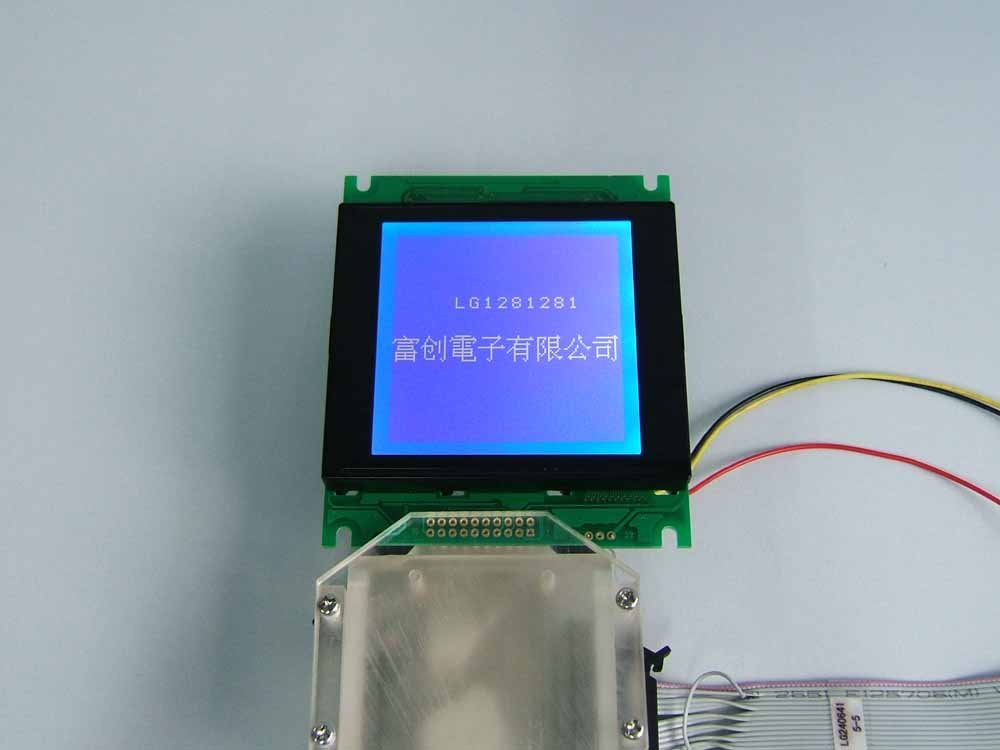

LG1281281-DW

    128 x 128
85.0 x 100.0 x 14.0
62.0 x 62.0
0.43 x 0.43
0.39 x 0.39
LEDwhite
T6963C
Pictures

LG1281282-DW

    128 x 138
88.4 x 88.4 x 13.0
67.0 x 67.0
0.50 x 0.50
0.46 x 0.46
LED 白
T6963C
Pictures

LG1281282-DW-TP

    128 x 128
88.4 x 88.4 x 14.5
67.0 x 67.0
0.50 x 0.50
0.46 x 0.46
LEDwhite
T6963C
Pictures

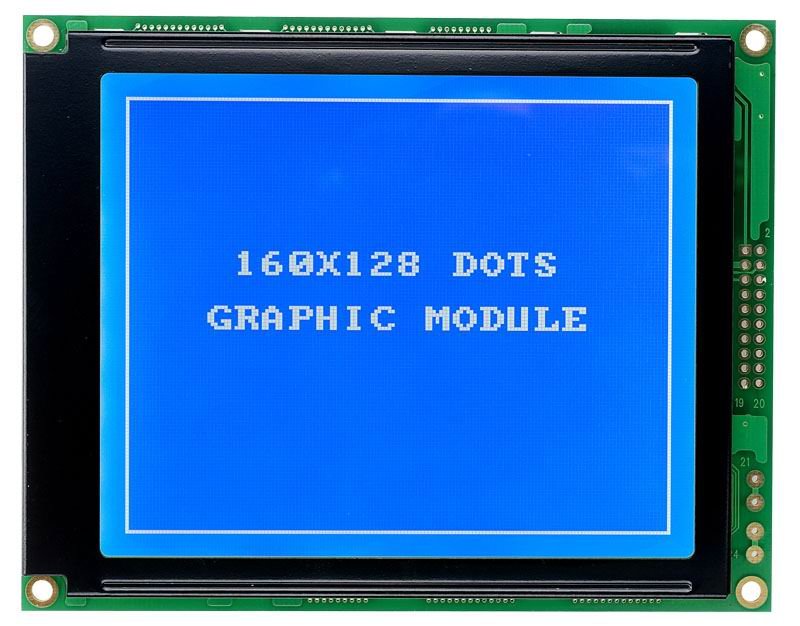

LG1601281-DW

    160 x 128
129.0 x 102.0 x 13.0
101.0 x 82.0
0.58 x 0.58
0.54 x 0.54
LEDwhite
T6963C
Pictures

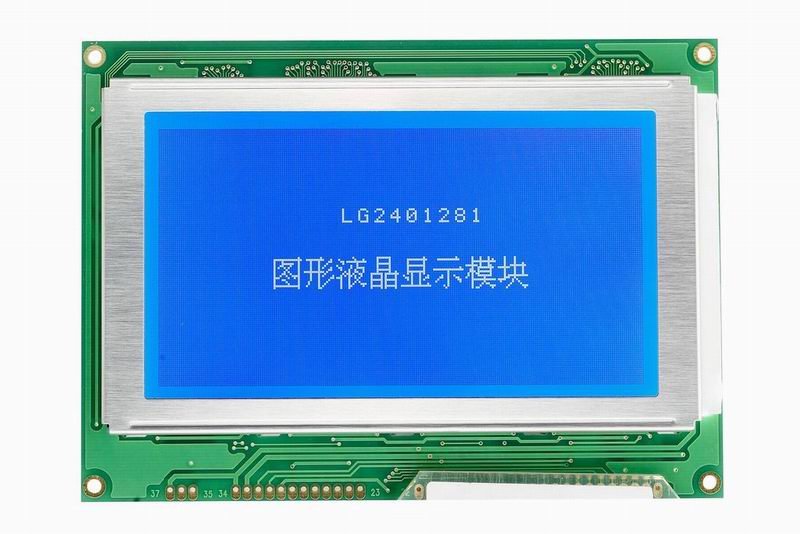

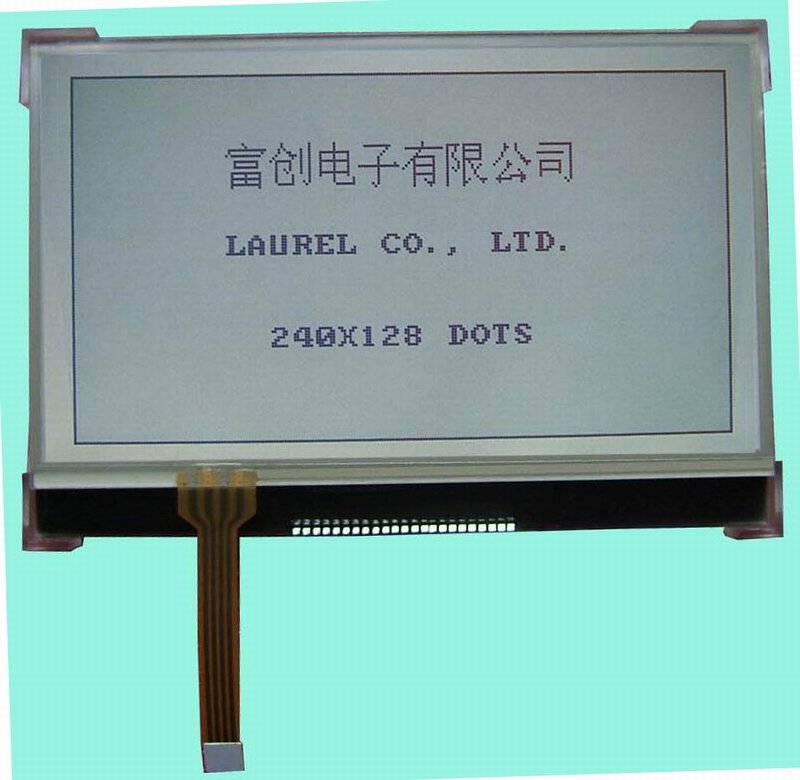

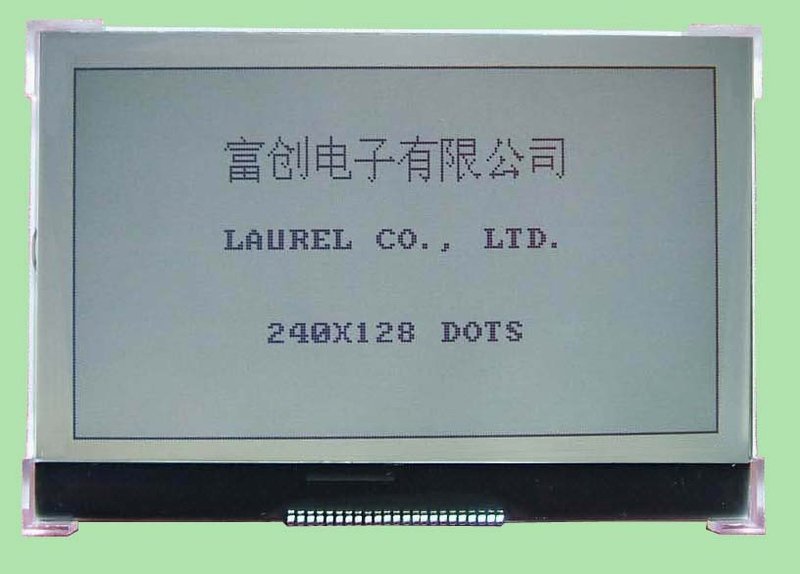

LG2401281-DW

    240 x 128
144.0 x 104.0 x 14.0
114.0 x 64.0
0.45 x 0.45
0.40 x 0.40
LEDwhite
T6963C
Pictures

LG2401281-LY

    240 x 128
144.0 x 104.0 x 16.5
114.0 x 64.0
0.45 x 0.45
0.40 x 0.40
LEDGreen and yellow
T6963C
Pictures

LG2401283-DW

    240 x 128
98.7 x 67.7 x 10.5
92.0 x 53.0
0.35 x 0.35
0.325 x 0.325
LEDwhite
UC1608
Pictures

LG2401283-DW-TP

    240 x 128
98.7 x 67.7 x 12.0
92.0 x 53.0
0.35 x 0.35
0.325 x 0.325
LEDwhite
UC1608
Pictures

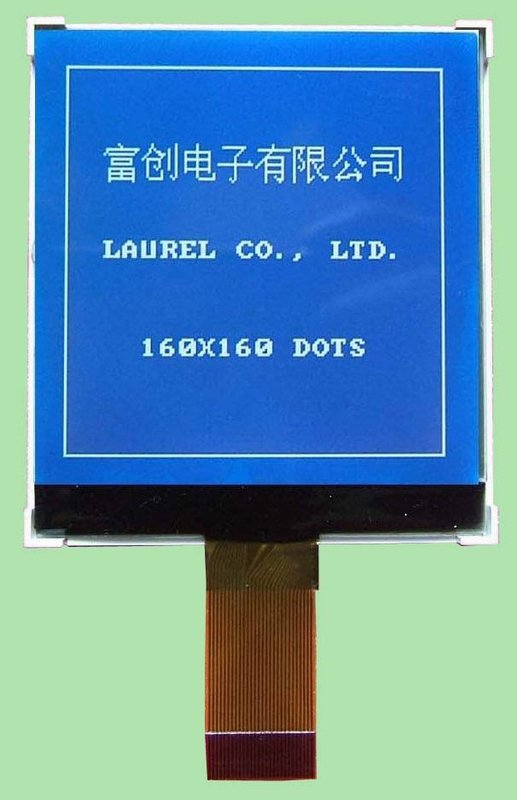

LG1601601-DW-TP

    160 x 160
62.0 x 69.0 x 9.6
55.0 x 53.5
0.30 x 0.30
0.28 x 0.28
LED white
UC1611s
Pictures

LG1601601-DW

    160 x 160
62.0 x 69.0 x 9.6
55.0 x 55.0
0.30 x 0.30
0.28 x 0.28
LED white
UC1611s
Pictures

LG3202402-DW

    320 x 240
160.0 x 109.0 x 13.5
122.0 x 92.0
0.36 x 0.36
0.33 x 0.33
LEDwhite
None
Pictures

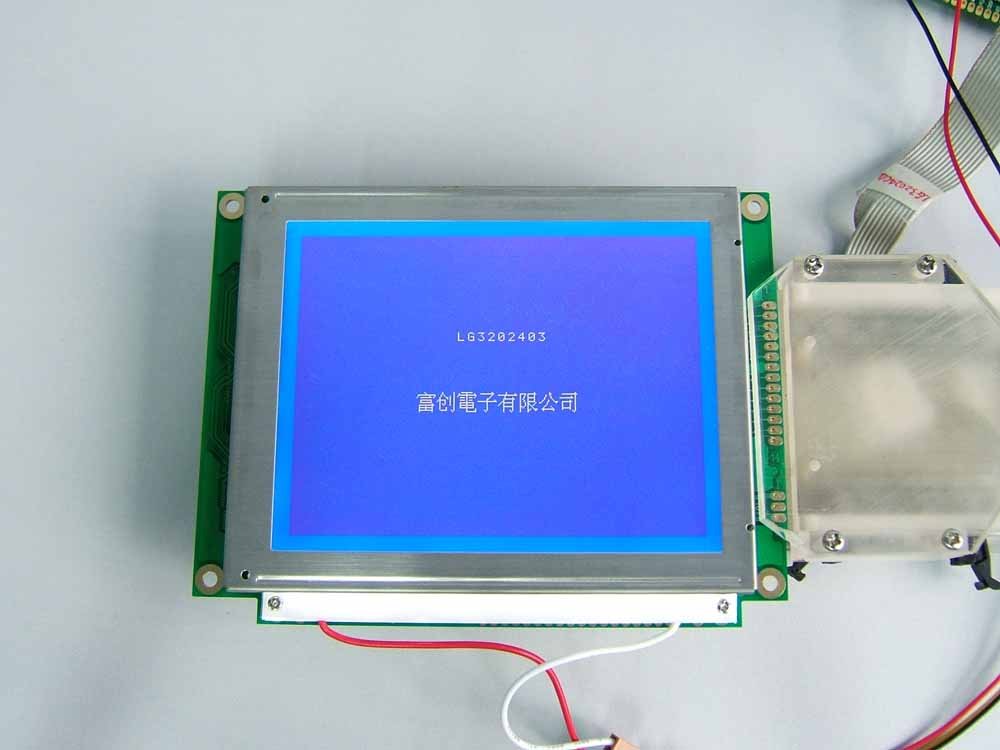

LG3202403-DW

    320 x 240
139.0 x 106.0 x 13.0
103.0 x 79.0
0.30 x 0.30
0.27 x 0.27
LEDwhite
SED1335
Pictures

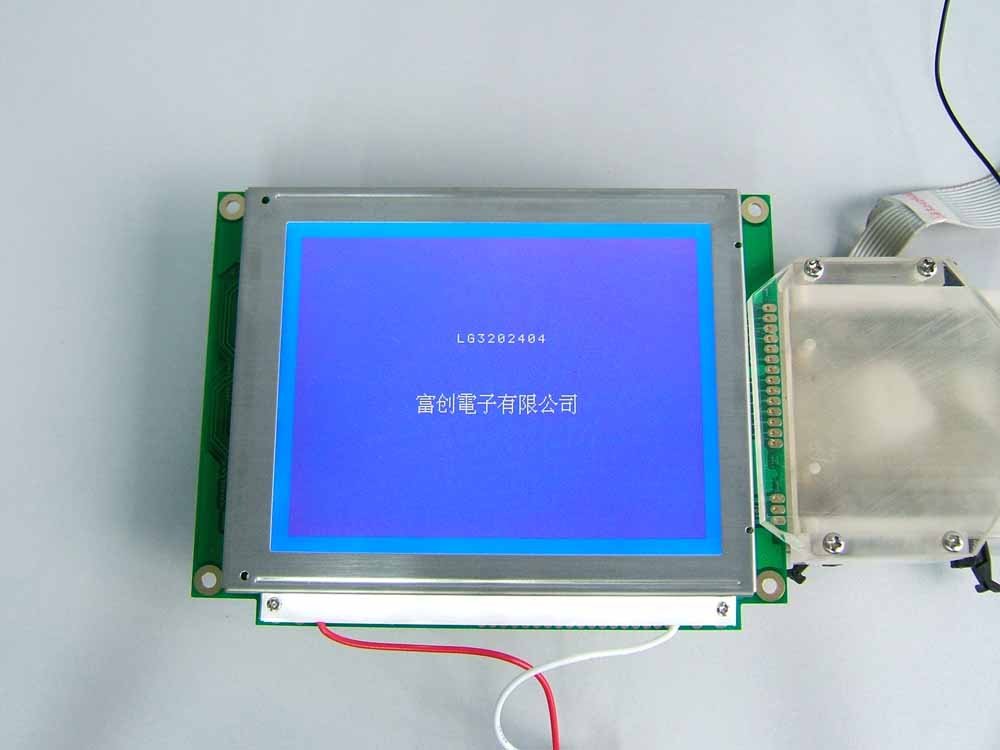

LG3202404-DW

    320 x 240
139.0 x 106.0 x 13.0
103.0 x 79.0
0.30 x 0.30
0.27 x 0.27
LEDwhite
None
Pictures

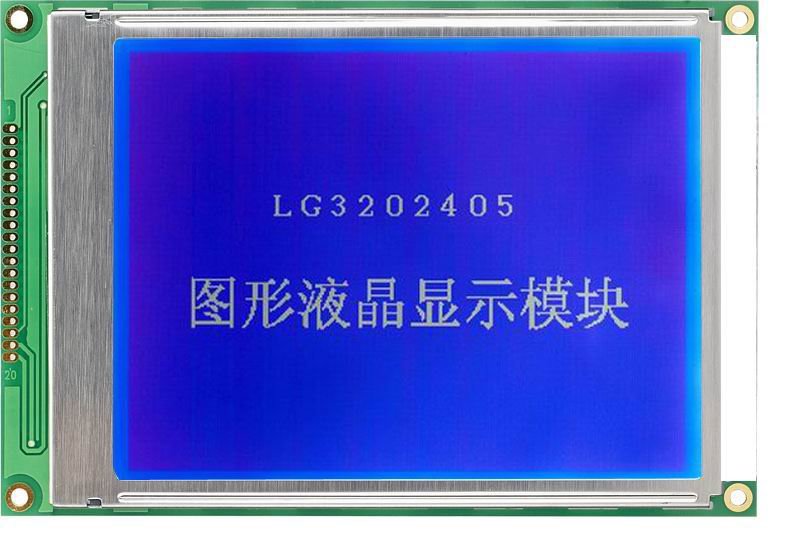

LG3202405-DW

    320 x 240
160.0 x 109.0 x 13.5
122.0 x 92.0
0.36 x 0.36
0.33 x 0.33
LEDwhite
SED1335
Pictures
TFTmodule
Type
Bitmap number
    Shape dimension
     WxHxT(mm)
Horizon size
WxH(mm)
    Some distance
WxH(mm)
    Dot size
WxH(mm)
Backlighting type
controller
Product pictures

LT043A-02AT

    480 x 272
105.4 x 67.1 x 4.5
95.04 x 53.86(4.3
0
0
LED
HX8227
Pictures

LT035B-33B

    320 x 240
94.0 x 80.0 x 9.8
72.4 x 54.6(3.5
0
0
LED
SSD1926
Pictures

LT035B-33BT

    320 x 240
94.0 x 80.0 x 11.0
72.4 x 54.6(3.5
0
0
LED
SSD1926
Pictures

LT035B-33BTC

    320 x 240
94.0 x 80.0 x 11.0
72.4 x 54.6(3.5
0
0
LED
SSD1926
Pictures

LT035B-50B

    320 x 240
94.0 x 80.0 x 9.8
72.4 x 54.6(3.5
0
0
LED
SSD1926
Pictures

LT035B-50BTC

    320 x 240
94.0 x 80.0 x 11.0
72.4 x 54.6(3.5
0
0
LED
SSD1926
Pictures

LT035B-50BT

    320 x 240
94.0 x 80.0 x 11.0
72.4 x 54.6(3.5
0
0
LED
SSD1926
Pictures

LT057B-33B

    320 x 240
150.0 x 114.0 X 13.0
118 x 88.0(5.7
0
0
LED
SSD1926
Pictures

LT057B-33BT

    320 x 240
150.0 x 114.0 x 14.5
118 x 88.0(5.7
0
0
LED
SSD1926
Pictures

LT057B-33BTC

    320 x 240
150.0 x 114.0 x 14.5
118 x 88.0(5.7
0
0
LED
SSD1926
Pictures

LT057B-50B

    320 x 240
150.0 x 114.0 x 13.0
118 x 88.0(5.7
0
0
LED
SSD1926
Pictures

LT057B-50BT

    320 x 240
150.0 x 114.0 x 14.5
118 x 88.0(5.7
0
0
LED
SSD1926
Pictures

LT057B-50BTC

    320 x 240
150.0 x 114.0 x 14.5
118 x 88.0(5.7
0
0
LED
SSD1926
Pictures
Copyright@ 2003-2013 China Synergy Group All rights reserved.
