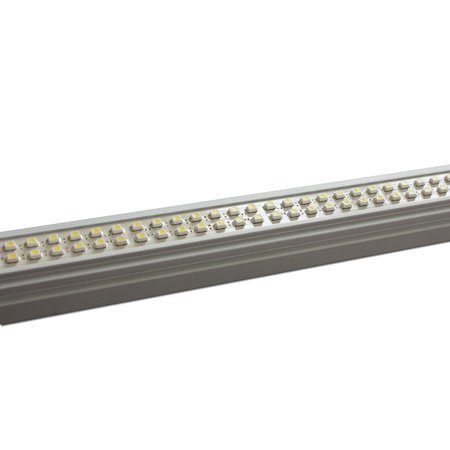

LED Transit Light
Features:
Dimension: 1500mm x110 x 39.7 mm
light source: 420SMD LEDs
Power: 28W
Housing - Aluminum
Base type - Defined by customer
Housing Color - Silver
Weight -< 4Kg
Power Requirement - 24VDC
Power Consumption - Maximum 50W
Operating Temperature-20 ~ 85 degree C
Humidity 0~90% non condensed
Body Temperature 50 degree C
Ambient Temperature 25 degree C
LED life > 50000hrs
Optical Specifications:
Beam Angle :120degree
Color Temperature Cold White (5500-6500K)
Illuminance227.5 Lux @ 2.1m(floor) /351 Lux @ 1.4m(reading plane)
CRI>75
Cool White (tested data for reference):
Reading plan (85cm high from floor surface)
For two-side seats 165 Lux
For rear bench seats 80 Lux
Aisles floor surface 110 Lux
Dust. noise and water protect
No glare
LED Light
