  DC FAN

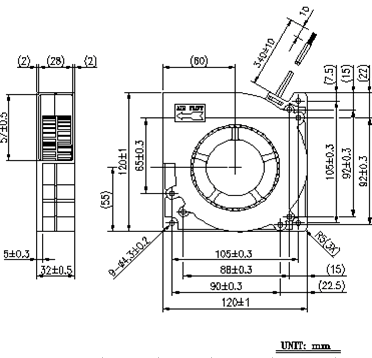

CS12032 SERIES

MODEL

Bearing Type

Rated Voltage (VDC)

Operating Voltage Range   (VDC)

Rated Current (Amp)

Rated input Power (Watt)

Rated Speed           (R.P.M.)

Maximum Air Flow (CFM)

Maximum Air Pressure (mmH2O)

Noise    (dB-A)

12038L12



12

7 to13.8

0.30

3.60

2000

84.76

4.56

32.50

12038L24



24

14.0 to 27.6

0.15

3.60

12038L48



48

28.0  to 56.0

0.08

3.84

12038M12



12

7 to13.8

0.40

4.80

2300

95.00

6.00

35.50

12038M24



24

14.0 to 27.6

0.18

4.32

12038M48

Sleeve

48

28.0  to 56.0

0.10

4.80

12038H12

Two Ball

12

7 to13.8

0.70

8.40

2600

105.94

7.60

38.50

12038H24



24

14.0 to 27.6

0.30

7.20

12038H48



48

28.0  to 56.0

0.18

8.64

12038HH12



12

7 to13.8

0.90

10.80

2900

120.07

9.00

41.50

12038HH24



24

14.0 to 27.6

0.40

9.60

12038HH48



48

28.0  to 56.0

0.25

12.00



*function type is optional.
*all readings are typical values at rated voltage.
*specification are subject to change without notice.
