DC FAN

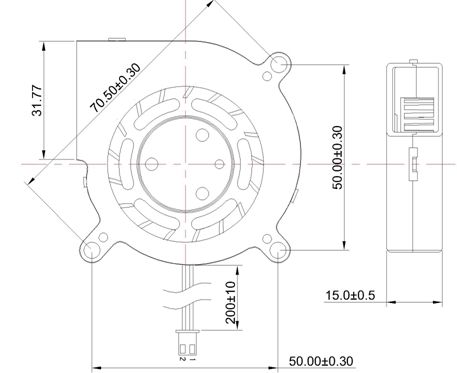

CS6015 SERIES

MODEL	Bearing Type	Rated Voltage (VDC)	Operating Voltage Range (VDC)	Rated Current (Amp)	Rated input Power (Watt)	Rated Speed (R.P.M.)	Maximum Air Flow (CFM)	Maximum Air Pressure (mmH2O)	Noise (dB-A)

6015L05		5	4.0~6.0	0.22	1.10	3000	6.48	3.12	26.50
6015L12		12	7.0~13.2	0.15	1.80
6015L24	Sleeve	24	14.0~27.6	0.10	2.40
6015M05	Fluid Dynamic	5	4.0~6.0	0.25	1.25	3600	9.01	3.50	29.80
6015M12		12	7.0~13.2	0.18	2.16
6015M24	One Ball One Sleeve	24	14.0~27.6	0.13	3.12
6015H12		12	7.0~13.2	0.20	2.40	4200	12.08	4.04	32.50
6015H24	Two Ball	24	14.0~27.6	0.15	3.60
6015HH12		12	7.0~13.2	0.25	3.60	4800	16.53	4.67	37.00
6015HH24		24	14.0~26.4	0.20	4.80

*function type is optional.
*all readings are typical values at rated voltage.
*specification are subject to change without notice.
