  DC FAN

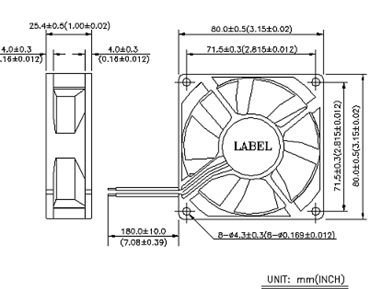

CF8025 SERIES

MODEL

Bearing           Type

Rated Voltage (VDC)

Operating Voltage Range   (VDC)

Rated Current (Amp)

Rated input Power (Watt)

Rated Speed             (R.P.M.)

Maximum Air Flow (CFM)

Maximum Air Pressure (mmH2O)

Noise    (dB-A)

8025L05



5

4.5 to 5.5

0.24

1.20

2400

27.90

2.59

25.00

8025L12



12

7 to13.8

0.09

1.08

8025L24



24

14.0 to 27.6

0.05

1.20

8025L48



48

28.0  to 56.0

0.06

2.88

8025M05



5

4.5 to 5.5

0.33

1.65

2700

31.43

3.28

28.00

8025M12



12

7 to13.8

0.12

1.44

8025M24



24

14.0 to 27.6

0.06

1.44

8025M48

Sleeve

48

28.0  to 56.0

0.07

3.36

8025H05

Fluid Dynamic

5

4.5 to 5.5

0.43

2.15

3000

35.31

4.04

31.00

8025H12

12

7 to13.8

0.16

1.92

8025H24

One Ball One Sleeve

24

14.0 to 27.6

0.07

1.68

8025H48

48

28.0  to 56.0

0.07

3.36

8025HH12

Two Ball

12

7 to13.8

0.20

2.40

3250

37.43

4.59

34.00

8025HH24



24

14.0 to 27.6

0.09

2.16

8025HH48



48

28.0  to 56.0

0.08

3.84

8025VH12



12

7 to13.8

0.26

3.12

3600

42.02

5.51

38.00

8025VH24



24

14.0 to 27.6

0.14

3.36

8025VH48



48

28.0  to 56.0

0.07

3.36

8025SH12



12

7 to13.8

0.34

4.08

4000

46.62

6.78

40.00

8025SH24



24

14.0 to 27.6

0.16

3.84

8025SH48



48

28.0  to 56.0

0.08

3.84



* function type is optional.
* all readings are typical values at rated voltage.
* specification are subject to change without notice.
