Cylinder, Square Tube

Cylinder, Square Tube
See the table below for the sizes we produce now. By selecting from this list, you can avoid investment in mold costs.
   Pipe:  ( back to top )

Precision Level:

Diameter: ±0.02 mm
Roundness: ±0.02 mm
Wall thickness: ±0.03 mm
Straightness: normally 0.15mm/Meter. We can also achieve 0.03mm/250mm
Surface Roughness: <1.5μm



Type ( Unit: mm ) A ( Unit: mm ) B ( Unit: mm ) Thickness ( Unit: mm ) Kg/m
YG-Φ14×3.5 14 7 3.5 0.42
YG-Φ16.2×2.8 16.2 10.6 2.8 0.32
YG-Φ16.8×4 16.8 8.8 4 0.43
φ17×2.5 17 12 2.5 0.32
YG-Φ17.3×1.475 17.3 14.35 1.475 0.199
YG-Φ17.5×2 17.5 13.5 2 0.26
YG-Φ18.5×2.3 18.5 13.9 2.3 0.32
YG-Φ19×1.8 19 15.4 1.8 0.264
φ20×2.5 20 15 2.5 0.38
φ20×2.4 20 15.2 2.4 0.358
YG-φ20×1.2 20 17.6 1.2 0.192
φ21×2.2 21 16.6 2.2 0.36
φ21.34×2.77 21.34 15.8 2.77 0.436
YG-Φ21.5×3.9 21.5 13.7 3.9 0.58
YG-Φ22.2×1.8 22.2 18.6 1.8 0.31
YG-Φ22.3×2.9 22.3 16.5 2.9 0.48
YG-Φ23×2 23 19 2 0.36
YG-24×5 24 14 5 0.81
YG-Φ25×2 25 21 2 0.39
φ26×2.25 26 21.5 2.25 0.4479
YG-Φ26×3 26 20 3 0.58
YG-内Φ26*2 26 22 2 0.48
YG-Φ27×3.75 27 19.5 3.75 0.74
YG-φ27.5×4 27.5 19.5 4 0.8
YG-Φ27.5×3.9 27.5 19.7 3.9 0.78
YG-φ28×8.25 28 11.5 8.25 1.39
YG-φ29×8.75 29 11.5 8.75 1.51
YG-φ29×9.75 29 9.5 9.75 1.6
φ29.6×3.8 29.6 22 3.8 0.832
φ30×2 30 26 2 0.5
φ30×4 30 22 4 0.882
φ30×3 30 24 3 0.687
YG-φ30×7.75 30 14.5 7.75 1.46
YG-φ30×9.25 30 11.5 9.25 1.63
YG-φ30×3.9 30 22.2 3.9 0.86
YG-Φ30×1.7 30 26.6 1.7 0.41
YG-Φ30×1.3 30 27.4 1.3 0.32
YG-φ31×1.9 31 27.2 1.9 0.47
φ31.8×2.2 31.8 31.8 2.2 0.58
YG-φ31.8×1 31.8 28.8 1 0.26
YG-φ32×2 32 28 2 0.51
YG-φ32×4.5 32 23 4.5 1.05
YG-φ32×9.9 32 12.2 9.9 1.86
YG-φ32×3 32 26 3 0.74
φ32.5×4.55   32.5 17.6 4.55 1.079
YG-Φ33.6×3.8 33.6 26 3.8 0.96
YG-φ34.9×1 34.9 32.9 1 0.29
YG-φ35×1.9 35 31.2 1.9 0.53
φ35×2 35 31 2 0.6
YG-Φ36×5 36 26 5 1.31
YG-Φ36×1.9 36 32.2 1.9 0.55
YG-Φ36×2.03 36 31.94 2.03 0.59
YG-φ36.2×4.8 36.2 26.6 4.8 1.28
φ36.3×5.9   36.3 26 5.9 1.521
φ37×8.5 37 26 8.5 2.1
φ37×11 37 31 11 2.45
YG-φ37×1.9 37 33.2 1.9 0.57
φ37.7×5   37.7 27.7 5 1.387
YG-Φ38×5 38 28 5 1.4
φ38.1×1.6  38.1 26 1.6 0.52
YG-Φ38.1×1.8 38.1 34.5 1.8 0.55
YG-φ38.1×1 38.1 36.1 1 0.32
YG-φ38.2×1.6 38.2 35 1.6 0.5
φ39.6×3.8 39.6 31 3.8 1.154
YG-φ39.7×2 39.7 35.7 2 0.64
φ40×4 40 26.6 4 1.22
YG-Φ40×7.5 40 25 7.5 2.068
YG-Φ40×5 40 30 5 1.48
YG-Φ40×10 40 20 10 2.54
YG-Φ40.5×3.9 40.5 32.7 3.9 1.21
YG-φ40.7×2 40.7 36.7 2 0.66
φ41×13 41 26.6 13 3.1
φ41.7×6.4  41.7 28.9 6.4 1.916
YG-Φ42×3.15 42 35.7 3.15 1.04
YG-φ42×1.6 42 38.8 1.6 0.55
YG-Φ42*6.75 42 28.5 6.75 2.02
φ42.3×2.65   42.3 37 2.65 0.891
YG-φ42.5×3.9 42.5 34.7 3.9 1.28
YG-φ42.7×2 42.7 38.7 2 0.69
φ43×11 43 21 11 3
φ43×11.5 43 20 11.5 3.1
φ43×14 43 15 14 3.5
YG-Φ43×5 43 33 5 1.61
YG-φ43.3×5.1 43.3 33.1 5.1 1.65
YG-Φ45×3.5 45 38 3.5 1.23
YG-Φ45×3 45 39 3 1.06
YG-Φ45.3*4.65 45.3 36 4.65 1.6
YG-φ46×4 46 37 4.5 1.43
YG-φ46×2 46 42 2 0.75
YG-φ46×1.9 46 43 1.5 0.71
YG-φ46×1.9 46 42.2 1.9 0.71
YG-Φ46×2.03 46 41.94 2.03 0.76
YG-Φ46×1.6 46 42.8 1.6 0.6
YG-φ47×3.2 47 40.6 3.2 1.19
φ48×4  48 40 4 1.49
φ48×2.5 48 38 5 0.965
YG-Φ48.1×2.93 48.1 42.24 2.93 1.12
YG-Φ48.1×1.95 48.1 44.2 1.95 0.76
φ48.3×3.7 48.3 40.9 3.7 1.4
YG-Φ48.3*3 48.3 42.3 3 1.2
YG-Φ48.3*2 48.3 44.3 2 0.8
φ48.4×2.7  48.4 43 2.7 1.05
YG-Φ48.6×1.6 48.6 45.4 1.6 0.64
YG-φ49.8×5.2 49.8 39.4 5.2 1.97
φ50×4 50 42 4 1.56
φ50×15 50 20 15 4.45
φ50×2 50 46 2 0.814
YG-Φ50×5 50 40 5 1.91
φ50.8×1.6  50.8 47.6 1.6 0.68
φ50.8×1.8   50.8 47.2 1.8 0.76
YG-Φ50.8×1.6 50.8 47.6 1.6 0.67
YG-Φ50.8×1.8 50.8 47.2 1.8 0.751
YG-φ50.8×2.0 50.8 46.8 2 0.83
YG-φ50.8×2 50.8 46.8 2 0.83
YG-Φ52.5×3.8 52.5 44.9 3.8 1.57
YG-φ55×1.9 55 51.2 1.9 0.86
YG-Φ55×1.9 55 51.2 1.9 0.86
YG-Φ55×2.03 55 50.94 2.03 0.91
φ56×2 56 52 2 0.916
YG-φ56×8 56 40 8 3.26
YG-φ56×18 56 20 18 5.82
YG-φ56×1.8 56 52.4 1.8 0.83
YG-Φ56*5.65 56 44.7 5.65 2.41
YG-φ56.5×8 56.5 40.5 8 3.29
YG-Φ56.7*5.8 56.7 45.1 5.8 2.5
YG-φ57×4.5 57 48 4.5 2
YG-φ57×2 57 53 2 0.93
YG-φ57×2.4 57 52.2 2.4 1.11
YG-φ57×1.9 57 53.2 1.9 0.89
YG-Φ57.5×3 57.5 51.5 3 1.39
φ60×8 60 44 8 3.55
φ60×9 60 42 9 3.89
YG-φ60×4 60 52 4 1.9
φ60×5 60 50 5 2.33
YG-Φ60×10 60 40 10 4.24
YG-φ63.5×1.6 63.5 60.3 1.6 0.84
YG-φ64×1.9 64 60.2 1.9 1
YG-Φ64×1.7 64 60.6 1.7 0.9
YG-Φ65×3.7 65 57.6 3.7 1.92
YG-φ66×1.7 66 62.6 1.7 0.93
YG-φ66.4×2 66.4 62.4 2 1.1
YG-φ69×3.7 69 61.6 3.7 2.05
YG-Φ70×10 70 50 10 5.1
YG-Φ74.8×2.95 74.8 68.9 2.95 1.8
YG-φ75×4.5 75 66 4.5 2.7
YG-Φ76.5X1.4 76.5 73.7 1.4 0.89
YG-Φ77.5×3.4 77.5 70.7 3.4 2.14
YG-φ78×1.4 78 75.2 1.4 0.91
YG-φ79×1.4 79 76.2 1.4 0.92
φ80×4 80 64 8 2.6
φ80×8 80 64 8 4.95
YG-Φ80×5 80 70 5 3.1
YG-φ80×1.9 80 76.2 1.9 1.26
YG-Φ80X9 80 62 9 5.42
YG-Φ80×7 80 66 7 4.34
φ83×5 83 73 5 3.308
φ85×8.5 85 51 17 5.516
φ85×17.5  85 50 17.5 10.02
YG-φ85.6×3 85.6 79.6 3 2.11
φ88.9×3.25 88.9 82.4 3.25 2.4
φ89×1.4 89 86.2 1.4 1.04
YG-Φ89×1.1 89 86.8 1.1 0.82
YG-Φ90×8 90 74 8 5.56
YG-Φ90×15 90 60 15 9.6
Φ90×17.5 90 55 17.5 10.76
YG-φ90.1×3.8 90.1 82.5 3.8 2.79
YG-φ91×1.4 91 88.2 1.4 1.06
YG-φ93×1.9 93 89.2 1.9 1.47
YG-φ93×1.4 93 90.2 1.4 1.09
YG-Φ93×10 93 73 10 7.04
YG-Φ93×15 93 63 15 9.92
YG-Φ93×25 93 43 25 14.42
φ100×10   100 80 10 7.634
φ100×8 100 84 8 6.243
YG-Φ100×3 100 94 3 2.5
YG-Φ100×4 100 92 4 3.257
YG-Φ100×5 100 90 5 4.03
YG-Φ100×9 100 82 9 7
YG-Φ100×8 100 84 8 6.24
YG-Φ105.5×3 105.5 99.5 3 2.62
φ115×10   115 95 10 8.906
φ120×6 120 108 6 5.8
YG-Φ120×10 120 100 10 9.331
YG-Φ120×16 120 88 16 14.11
YG-φ125×2.5 125 120 2.5 2.6
YG-Φ127×6.25 127 114.5 6.25 6.4
YG-φ130×10 130 110 10 10.18
YG-φ130×12 130 106 12 12.01
YG-Φ130×9 130 112 9 9.3
YG-φ133.8×5 133.8 123.8 5 5.48
YG-φ136×8 136 120 8 8.69
φ140×15 140 110 15 16
YG-Φ140×10 140 120 10 12.466
YG-Φ145×6 145 133 6 7.07
YG-φ149×5 149 139 5 6.13
YG-φ149.3×4.9 149.3 139.5 4.9 6
φ150×10   150 130 10 11.875
YG-φ150×12 150 126 12 14.05
YG-Φ150×5 150 140 5 6.15
YG-Φ150×8 150 134 8 9.64
φ155×12.5 155 130 12.5 15.11
YG-Φ156×8 156 140 8 10
YG-φ158×5.8 158 146.4 5.8 7.5
YG-φ158.7×5 158.7 148.7 5 6.53
φ167×6 167 155 6 8.2
φ167×8 167 151 8 10.789
YG-φ168.7×5 168.7 158.7 5 6.97
φ171×5 171 161 5 7.04
YG-Φ175×15 175 145 15 20.4
YG-φ175×12 175 151 12 16.6
φ180×12 180 156 12 17.2
YG-Φ180×1.7 180 176.6 1.7 2.6
YG-φ180×6.5 180 167 6.5 9.57
YG-Φ185×1.6 185 181.8 1.6 2.489
φ192×6 192 180 6 9.47
YG-Φ192×12 192 168 12 18.32
YG-Φ199×7 199 185 7 11.4
φ200×12   200 176 12 19.136
YG-Φ200×10 200 180 10 16.12
YG-φ202×1.8 202 198.4 1.8 3.06
YG-φ226×28 226 170 28 47.03
φ230×5  230 220 5 9.543
Φ230×15 230 200 15 27.36
YG-Φ234×8 234 218 8 15.34
YG-φ236×20 236 196 20 36.8
φ240×10   240 220 10 19.51
φ240×5 240 230 5 9.967
YG-Φ250×10 250 230 10 20.36
YG-Φ256×6 256 244 6 12.723
φ260×6   260 248 6 12.927
φ260×8  260 244 8 17.1
YG-Φ260×6 260 248 6 13
YG-Φ264×7 264 250 7 15.26
φ268×8   268 252 8 17.6
φ268×8   268 252 8 17.6
φ286×8   286 270 8 18.9
φ291×6   291 279 6 14.505
φ300×10   300 280 10 24.6
φ300×12  300 276 12 29.31
φ306×8   306 290 8 20.22
YG-Φ306×8 306 290 8 20.2
Φ307×25.5 307 256 25.5 60.9
YG-Φ310×6 310 298 6 15.472
Φ320×12 320 296 12 31.5
YG-Φ320×12 320 296 12 31.5
YG-φ322×8 322 306 8 21.4
φ326×6  326 314 6 16.286
YG-Φ320×10



YG-330 330 257 36.50 90.82
YG-332 332 320 6 16.591
YG-340 340 326 7 19.76
YG-347 347 335 6 17.355
YG-348.4 348.4 335 6.7 19.419
YG-350 350 236 57 141.663
YG-350 350 226 62 151.38
YG-356 356 340 8 23.615
YG-356 356 335 10.5 30.772
YG-375 375 345 15 45.653
YG-376 376 360 8 24.98
YG-376 376 364 6 18.82
YG-390 390 374 8 25.923
YG-400 400 384 8 26.600
YG-406 406 390 8 27.015
YG-421 421 391 15 51.660
YG-452 452 434 9 33.82
YG-461 461 445 8 30.72
YG-500 500 476 12 49.647
YG-500 500 488 6 18.634
YG-508 508 492 8 33.930
YG-512 512 496 8 34.2
YG-536 536 520 8 38.10


   Angle aluminum :  ( back to top )

Type ( Unit: mm )
A ( Unit: mm )
B ( Unit: mm )
Thickness ( Unit: mm )
Kg/m
a-15×15×2
15
15
2
0.15
a-15.9×15.9×3.2
15.9
15.9
3.2
0.25
a-20×15×2
20
15
2
0.178
a-30×200×3
20
30
3
0.38
a-24×17×8/3
24
17
8/3
0.59
a-24.5×24.5×1.8
24.5
24.5
1.8
0.229
a-25×25×15(R10)
25
25
15
1.359
a-25×15×1.5
25
15
1.5
0.156
a-30×30×3
30
30
3
0.46
a-25×30×2
30
25
2
0.28
a-35×35×4
35
35
4
0.71
a-38×38×6
38
38
6
1.15
a-40×40×4
40
40
4
0.821
a-40×40×5
40
40
5
1.03
a-47×8×2.5
47
8
2.5
0.36
a-47×8×1.5
47
8
1.5
0.22
a-50×50×5
50
50
5
1.3
a-50×50×5
50
50
5
1.3
a-50×30×4
50
30
4
0.82
a-54×51×6(R5)
54
51
6
1.55
a-54×12×2
54
12
2
0.35
a-56×2.5×2.5
56
2.5
2.5
0.416
a-60×40×5
60
40
5
1.3
a-60×40×4
60
40
4
1.037
a-60×60×6
60
60
6
1.87
a-63×28×4
63
28
4
0.94
a-70×50×5
70
50
5
1.553
a-76×34.5×3
76
34.5
3
0.88
a-80×40×8
80
40
8
2.456
a-80×50×6
80
50
6
0.2
a-80×40×4
80
40
4
1.253
a-90×80×10
80
90
10
4.37
a-80×80×8
80
80
8
3.31
a-90×75×25/41.5
90
75
25/41.5
12.6
a-100×50×5
100
50
5
1.97
a-100×40×5
100
40
5
1.823
a-100×100×10
100
100
10
5.13
a-102×100×34/28.5
102
100
34/28.5
14.4
a-160×100×12
160
100
12
8.04
a-180×140×60/40
180
140
60/40
37.8
a-292.7×150×14
292.7
150
14
16.06
a-100×80×15
100(δ=10)
80
15
5.6

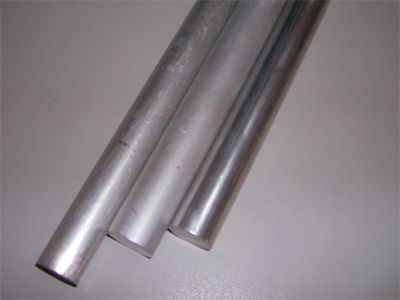

   Round rods :   ( back to top )

Precision Level:

Diameter: Extrusion ±0.1mm,Cold Draw ±0.02 mm

*1inch = 25.4 mm




Type ( Unit: mm ) A( Unit: mm ) Kg/m
YB-8 8 0.14
YB-9.6 9.6 0.2
YB-10 10 0.22
YB-12 12 0.32
YB-12.7 12.7 0.343
YB-13(+0.2,-0.05) 13 0.36
YB-13.5 13.5 0.39
YB-14 14 0.42
YB-14.5 14.5 0.45
YB-15 15 0.48
YB-16 16 0.55
YB-18 18 0.7
YB-19(+0.2,-0.1) 19 0.8
YB-20 20 0.86
YB-22 22 1.05
YB-23 23 1.15
YB-24 24 1.25
YB-24 24 1.22
YB-25 25 1.35
YB-26 26 1.45
YB-27 27 1.5
YB-28 28 1.68
YB-29 29 1.783
YB-30 30 1.95
YB-31 31 2.05
YB-32 32 2.2
YB-33 33 2.309/2.31
YB-34 34 2.5
YB-Φ34 34 2.5
YB-35 35 2.62
YB-36 36 2.78
YB-Φ36 36 2.8
YB-37 37 2.9
YB-38 38 3.1
YB-Φ38 38 3.07
YB-38.4 38.4 3.15
YB-40 40 3.42
YB-Φ40 40 3.4
YB-41 41 3.56
YB-42 42 3.78
YB-43 43 3.95
YB-45 45 4.35
YB-Φ45 45 4.3
YB-46 46 4.55
YB-48 48 4.92
YB-49 49 5.15
YB-50 50 5.3
YB-50 50 5.3
YB-Φ50 50 5.3
YB-50.8 50.8 5.5
YB-52 52 5.78
YB-54 54 6.2
YB-55 55 6.45
YB-60 60 7.63
YB-65 65 9
YB-69 69 10.15
YB-70 70 10.45
YB-72 72 11.05
YB-75 75 12
YB-80 80 13.57
YB-85.5 85.5 15.5
YB-90 90 17.18
YB-95 95 19.14
YB-97 97 19.95
YB-100 100 21.21
YB-φ105 105 23.4
YB-110 110 25.78
YB-115 115 28.15
YB-120 120 30.54
YB-130 130 36
YB-140 140 41.56
YB-145 145 44.78
YB-150 150 47.9
YB-154 154 50.292
YB-160 160 54.5
YB-180 180 69
YB-190 190 76.85
YB-200 200 85.15

   Aluminum groove:   ( back to top )


Type ( Unit: mm ) A( Unit: mm ) B( Unit: mm ) Thickness ( Unit: mm ) Kg/m
CL-9.5×9.5×0.8 9.5 9.5 0.8 0.06
CL-10×10×1 10 10 1 1.18
CL-10×10×0.8 10 10 0.8 0.07
CL-12×12×2 12 12 2 0.177
CL-18.5×19×1.5 18.5 19 1.5 0.22
CL-19×16×1.5 19 16 1.5 0.21
CL-22×19.5×1.5 22 19.5 1.5 0.24
CL-22×26.5×2.5 22 26.5 2.5 0.47
CL-22×30.5×2.5 22 30.5 2.5 0.53
CL-20×26×4 26 20 4 0.56
CL-27*20*1.5 27 20 1.5 0.26
CL-30×25×1.2 30 25 1.2 0.251
CL-32×26.5×2.5 32 26.5 2.5 0.54
CL-32×30.5×2.5 32 30.5 2.5 0.59
CL-37×26.5×2.5 37 26.5 2.5 0.57
CL-37×30.5×2.5 37 30.5 2.5 0.63
CL-38×38×6 38 38 6 1.652
CL-41.3×19.05×3.2 41.3 19.05 3.2 0.633
CL-27.5×46×1.8 46 27.5 1.8 0.47
CL-46.9×26.5×1.8 46.9 26.5 1.8 0.47
CL-47×26.5×2.5 47 26.5 2.5 0.64
CL-47×30.5×2.5 47 30.5 2.5 0.7
CL-49×40×4 49 40 4 1.3
CL-49×34×4 49 34 4 1.2
CL-49.1×27.5×1.8 49.1 27.5 1.8 0.49
CL-49.1×29.5×1.8 49.1 29.5 1.8 0.51
CL-50.5×60.55×1.8 50.5 60.55 1.8 0.82
CL-57.5×51×1.8 51 57.5 1.8 0.781
CL-51.5×38×3 51.5 38 3 1
CL-53.1×57.5×1.8 53.1 57.5 1.8 0.80
CL-53.1×55×1.8 53.1 55 1.8 0.78
CL-56×27.5×2.2 56 27.5 2.2 0.63
CL-56×27.5×1.8 56 27.5 1.8 0.523
CL-56.9×26.5×1.8 56.9 26.5 1.8 0.52
CL-56.9×29.5×1.8/4 56.9 29.5 4 0.86
CL-57×26.5×2.5 57 26.5 2.5 0.71
CL-57×30.5×2.5 57 30.5 2.5 0.76
CL-59.1×26×1.8 59.1 26 1.8 0.52
CL-59.1×26.7×1.8 59.1 26.7 1.8 0.53
CL-40×60×6 60 40 6 2.07
CL-60.5×57.5×1.8 60.5 57.5 1.8 0.837
CL-60.5×60.55×1.8 60.5 60.55 1.8 0.86
CL-61.5×38×3 61.5 38 3 1.04
CL-61.5×57.5×2.25 61.5 57.5 2.25 1.05
CL-62×26.5×2.5 62 26.5 2.5 0.74
CL-62×30.5×2.5 62 30.5 2.5 0.79
CL63.1×60×1.8 63.1 60 1.8 0.87
CL-63.1×58.8×1.8 63.1 58.8 1.8 0.86
CL-63.5×25.4×3.2 63.5 25.4 3.2 0.94
CL-66.5×38×3 66.5 38 3 1.1
CL-71×27.5×2.2 71 27.5 2.2 0.72
CL-71×27.5×1.8 71 27.5 1.8 0.596
CL-71.9×26.5×1.8 71.9 26.5 1.8 0.59
CL-71.9×29.5×1.8/4 71.9 29.5 4 1.02
CL-72×26.5×2.5 72 26.5 2.5 0.81
CL-72×30.5×2.5 72 30.5 2.5 0.86
CL-74.1×26×1.8 74.1 26 1.8 0.60
CL-74.1×26.7×1.8 74.1 26.7 1.8 0.60
CL-75.5×57.5×1.7 75.5 57.5 1.7 0.86
CL-75.5×60.55×1.8 75.5 60.55 1.8 0.94
CL-76.5×57.5×2.25 76.5 57.5 2.25 1.14
CL-78.1×60×1.8 78.1 60 1.8 0.95
CL-78.1×58.8×1.8 78.1 58.8 1.8 0.93
CL-80×20×1.2 80 20 1.2 0.381
CL-80×75×1.2 80 75 1.2 0.74
CL-81.25×38×3 81.25 38 3 1.25
CL-82×26.5×2.5 82 26.5 2.5 0.88
CL-82×30.5×2.5 82 30.5 2.5 0.93
CL-86×27.5×2.2 86 27.5 2.2 0.81
CL-86×27.5×1.8 86 27.5 1.8 0.667
CL-86.9×26.5×1.8 86.9 26.5 1.8 0.66
CL-86.9×29.5×1.8/4 86.9 29.5 4 1.19
CL-87×26.5×2.5 87 26.5 2.5 0.91
CL-87×30.5×2.5 87 30.5 2.5 0.97
CL-89.1×26×1.8 89.1 26 1.8 0.67
CL-89.1×26.7×1.8 89.1 26.7 1.8 0.68
CL-90.5×57.5×1.7 90.5 57.5 1.7 0.929
CL-90.5×60.55×1.8 90.5 60.55 1.8 1.01
CL-91.5×57.5×2.25 91.5 57.5 2.25 1.23
CL-92×26.5×2.5 92 26.5 2.5 0.95
CL-92×30.5×2.5 92 30.5 2.5 1
CL-93.1×60×1.8 93.1 60 1.8 1.02
CL-93.1×58.8×1.8 93.1 58.8 1.8 1.01
CL-96.5×38×3 96.5 38 3 1.35
CL-100×25×2.5 100 25 2.5 0.99
CL-100*80*4 100 80 4 7.72
CL-101.9×26.5×1.8 101.9 26.5 1.8 0.74
CL-101.9×29.5×1.8/4 101.9 29.5 4 1.35
CL-102×26.5×2.5 102 26.5 2.5 1.01
CL-102×30.5×2.5 102 30.5 2.5 1.07
CL-104.1×26×1.8 104.1 26 1.8 0.74
CL-105.5×60.55×1.8 105.5 60.55 1.8 1.08
CL-108.1×60×1.8 108.1 60 1.8 1.09
CL-110×25×2.5 110 25 2.5 1.10
CL-110X110X10 110 110 10 5.67
CL-111×38×3 111 38 3 1.44
CL-115×45×1.5 115 45 1.5 2.35
CL-120×25×3.5 120 25 3.5 1.54
CL-120×55×8 120 55 8 5.743
CL-121×27.5×2.2 121 27.5 2.2 1.02
CL-121.9×26.5×1.8 121.9 26.5 1.8 0.83
CL-122×26.5×2.5 122 26.5 2.5 1.15
CL-122×30.5×2.5 122 30.5 2.5 1.2
CL-124.1×26×1.8/2.2 124.1 26 1.8/2.2 0.97
CL-125×55×6.5 125 55 6.5 3.896
CL-125.5×57.5×1.8 125.5 57.5 1.8 1.152
CL-125.5×60.55×1.8 125.5 60.55 1.8 1.18
CL-126×38×3 126 38 3 1.6
CL-126.5×57.5×2.25 126.5 57.5 2.25 1.44
CL-128.1×60.2×1.8/2.2 128.1 60.2 1.8/2.2 1.33
CL-132×26.5×2.5 132 26.5 2.5 1.21
CL-132×30.5×2.5 132 30.5 2.5 1.3
CL-136×37×2.5 136 37 2.5 1.38
CL-141×26×2.5 141 26 2.5 1.27
CL-141.9×26.5×1.8/2.5 141.9 26.5 1.8/2.5 1.19
CL-141.9×29.5×1.8/4 141.9 29.5 4 1.78
CL-144.1×26×1.8/2.2 144.1 26 1.8/2.2 1.09
CL-145×25×3.5 145 25 3.5 1.78
CL-145.5×61.25×1.8/2.5 145.5 61.25 1.8/2.5 1.55
CL-146×38×3 146 38 3 1.73
CL-147×60×2.5 147 60 2.5 1.77
CL-148.1×60.2×1.8/2.2 148.1 60.2 1.8/2.2 1.44
CL-157×26.5×2.5 157 26.5 2.5 1.38
CL-157×30.5×2.5 157 30.5 2.5 1.44
CL-161×38×3 161 38 3 1.85
CL-170×25×3.5 170 25 3.5 2.02
CL-180X180X16 180 180 16 14.86
CL-186×26×2.5 186 26 2.5 1.57
CL-186.9×26.5×1.8/2.5 186.9 26.5 1.8/2.5 1.5
CL-189.1×26×1.8/2.2 189.1 26 1.8/2.5 1.51
CL-63.5×190.5×6 190.5 63.5 6 7.35
CL-190.5×61.25×1.8/2.5 190.5 61.25 1.8/2.5 1.86
CL-191×38×3 191 38 3 2.84
CL-192×26.5×2.5 192 26.5 2.5 1.62
CL-192×30.5×2.5 192 30.5 2.5 1.67
CL-192×60×2.5 192 60 2.5 2.07
CL-193.1×60.5×1.8/2.2 193.1 60.5 1.8/2.2 1.87
CL-200×90×12 200 90 12 11.6
CL-200×90×10 200 90 10 9.6
CL-201×38×4.5 201 38(δ=3) 4.5 3
CL-222×26.5×2.5 222 26.5 2.5 1.82
CL-222×30.5×2.5 222 30.5 2.5 1.88
CL-231×26×2.5 231 26 2.5 1.88
CL-231.9×26.5×1.8/2.5 231.9 26.5 1.8/2.5 1.8
CL-235.5×61.25×1.8/2.5 235.5 61.25 1.8/2.5 2.16
CL-237×60×2.5 237 60 2.5 2.38
CL-250×35×6 250 35 6 4.99
CL-270×25×6 270 25 6 5
CL-304.8×50.8×4.76 304.8 50.8 4.76 5.1
   Square tubes:   ( back to top )


Type ( Unit: mm ) A ( Unit: mm ) B ( Unit: mm ) Thickness ( Unit: mm ) Kg/m
FG-12×10×1 12 10 1 0.101
15×13×1 15 13 1 0.114
FG-16×14×1 16 14 1 0.144
19×19×1.6 19 19 1.6 0.31 4R1
FG-20×18×1 20 18 1 0.187
FG-21×20×3 21 20 3 0.57
24×13×1 24 13 1 0.189
FG-24×24×2 24 24 2 0.48
24.4×9.4×1.1 24.4 9.4 1.1 0.19
FG-25×25×2.95 25 25 2.95 0.7
FG-25×50×3 25 50 3 1.1
25.4×25.4×1.9 25.4 25.4 1.9 0.457
28×14×1.4 28 14 1.4 0.255
30×10×1 30 10 1 0.205
30×23.2×2 30 23.2 2 0.55
30×25×1.2 30 25 1.2 0.3408
FG-30X30X3 30 30 3 0.9
FG-30*25*1.7 30 25 1.7 0.47
FG-32×32×2.4 32 32 2.4 0.77
32×32×1.8 32 32 1.8 0.6
34.2×22.4×1.8 34.2 22.4 1.8 0.491
38×20×0.8 38 20 0.8 0.2436
38×25×0.8 38 25 0.8 0.28
38×38×2 38 38 2 0.743
FG-38×38×2.4 38 38 2.4 0.92
FG-38×25×2.95 38 25 2.95 0.9
38.1×38.1×3.05 38.1 38.1 3.05 1.18
40×10×1.2 40 10 1.2 0.308
40×25×1.2 40 25 1.2 1.05
40×30×2 40 30 2 0.75
40×40×4 40 40 4 1.56
FG-50×30×3 50 30 3 1.2
FG-50×30×2 50 30 2 0.82
50.8×25.4×2.1 50.8 25.4 2.1 0.85
54.5×35×1.10 54.5 35 1.8 0.812
60×40×4 60 40 4 1.99
60×40×5 60 40 5 2.43
FG-60×40×2 60 40 2 1.04
60×60×4 60 60 4 2.42
60×60×6 60 60 6 3.5
70×25×1.2 70 25 1.2 0.62
70×25×0.9 70 25 0.9 0.46
FG-70*40*2.5 70 40 2.5 1.42
FG-73×25×1.5 73 25 1.5 0.76
76×44×1.2 76 44 1.2 0.8
80×40×3 80 40 3 1.847
80×44×1.2 80 44 1.2 0.67
88×44×1.4 88 44 1.4 1
88×44×2 88 44 2 1.4
92.5×57×3 92.5 57 3 2.313
100×44×1.2 100 44 1.2 0.95
100×44×1.4 100 44 1.4 1.067
100×50×8 100 50 8 5.8
100×50×6/4 100 50 6/4 3.52
100×100×1.4 100 100 1.4 1.49
120×60×6 120 60 6 5.54
120×120×8 120 120 8 9.69
126×45×3.2 126 45 3.2 2.86
FG-168×72×4 168 72 4 4.9
200×50×8 200 50 8 10.1
200×100×8 200 100 8 12.35
204×154×6 204 154 6 11.3
280×140×8 280 140 8 17.55
   Aluminum row:   ( back to top )


Type ( Unit: mm ) A ( Unit: mm )
Thickness ( Unit: mm )
Kg/m
BT-12×12 12 12 0.39
BT-12.5×2.2 12.5 2.2 0.07
BT-12.5×3 12.5 3 0.101
BT-12.7×6.35 12.7 6.35 0.219
BT-15×1.2 15 1.2 0.0486
BT-15×15 15 15 0.608
BT-15×3 15 3 0.12
BT-15×8 15 8 0.324
BT-15.4×15.4 15.4 15.4 0.640332
BT-16.4×3.8 16.4 3.8 0.168264
BT-17×6 17 6 0.25
BT-19.6×6 19.6 6 0.3
BT-20×14 20 14 0.76
BT-20×15 20 15 0.81
BT-20×5 20 5 0.27
BT-20×5 20 5 0.26
BT-20×6 20 6 0.3
BT-20×7.5 20 7.5 0.37
BT-20×8 20 8 0.432
BT-20×9.5 20 9.5 0.513
BT-23×20 23 20 1.24
BT-25×2.5 25 2.5 0.169
BT-25×5 25 5 0.34
BT-30×10 30 10 0.81
BT-30×15 30 15
1.215
BT-30×2.5 30 2.5 0.2
BT-30×5 30 5 0.405
BT-30×6 30 6 0.48
BT-30×6 30 6 0.49
BT-30×8 30 8 0.648
BT-34×15 34 15 1.38
BT-35×3 35 3 0.28
BT-35×4 35 4 0.38
BT-35×6 35 6 0.567
BT-40×15 40 15 1.62
BT-40×20 40 20 2.16
BT-40×25 40 25 2.7
BT-40×6 40 6 0.63
BT-40X15 40 15 1.62
BT-40×8 40 8 0.83
BT-45×15 45 15 1.8225
BT-45×3 45 3 0.36
BT-45×3 45 3 0.34
BT-45×4 45 4 0.477
BT-45×5 45 5 0.59
BT-45×6 45 6 0.71
BT-45×6 45 6 0.71
BT-50×20 50 20 2.7
BT-50×23 50 23 3.105
BT-50×5 50 5 0.675
BT-50×6 50 6 0.81
BT-50×6(FR) 50 6 0.79
BT-50×10 50 10 1.29
BT-51×11 51 11 1.51
BT-51×12 51 12 1.65
BT-52×52 52 52 7.3008
BT-55×3 55 3 0.44
BT-55×3 55 3 0.42
BT-55×4 55 4 0.59
BT-55×5 55 5 0.85
BT-55×55 55 55 8.17
BT-55×6.5 55 6.5 0.965
BT-55×7 55 7 0.97
BT-55×6 55 6 0.87
BT-60×12 60 12 1.95
BT-60×3 60 3 0.48
BT-60×30 60 30 4.86
BT-60×40 60 40 6.48
BT-60×50 60 50 7.25
BT-60×6 60 6 0.95
BT-60×6 60 6 0.98
BT-60×6 60 6 0.95
BT-60×8 60 8 1.26
BT-63×14.5 63 14.5 2.46645
BT-65×6 65 6 1.05
BT-70×25 70 25 4.73
BT-70×3 70 3 0.56
BT-70×34 70 34 6.4
BT-70×5.5 70 5.5 1.02
BT-70×5 70 5 1.05
BT-70×19 70 19 3.58
BT-70X5 70 5 0.93
BT-70X3 70 3 0.56
BT-70×6 70 6 1.11
BT-71.5×23.5 71.5 23.5 4.536675
BT-73×28.5 73 28.5 5.6
BT-75×35 75 35 7.0875
BT-78×5 78 5 1.05
BT-55×80 80 55 11.8
BT-80×3 80 3 0.64
BT-80×3 80 3 0.65
BT-80×6 80 6 1.28
BT-80×8 80 8 1.69
BT-80×8 80 8 1.69
BT-80×6 80 6 1.28
BT-83×21 83 21 4.71
BT-85×22 85 22 5.049
BT-85×3 85 3 0.68
BT-85×5 85 5 1.25
BT-85×6 85 6 1.36
BT-55×90 90 55 13.36
BT-90×50 90 50 12.15
BT-90×3 90 3 0.72
BT-90×6 90 6 1.44
BT-90×8 90 8 1.9
BT-92×40 92 40 9.936
BT-55×95 95 55 14.1
BT-95×6 95 6 1.518
BT-95×95 95 95 24.4
BT-95×16 95 16 4.104
BT-95×6 95 6 1.52
BT-100×10 100 10 2.7
BT-100×20 100 20 5.4
BT-100×55 100 55 14.85
BT-100×6 100 6 1.62
BT-100×8 100 8 2.2
BT-100×10 100 10 2.64
BT-100×6 100 6 1.6
BT-100×3 100 3 0.81
BT-102×10 102 10 2.75
BT-106×28 106 28 8.01
BT-70×107 107 70 20.2
BT-110×30 110 30 8.91
BT-110×40 110 40 11.88
BT-110×50 110 50 14.85
BT-110×6 110 6 1.77
BT-110×6 110 6 1.79
BT-110×8 110 8 2.35
BT-110×8 110 8 2.53
BT-113×9 113 9 2.7
BT-115×4 115 4 1.2
BT-115×50 115 50 14.99
BT-115×4 115 4 1.2
BT-118×26 118 26 8.3
BT-120×3 120 3 0.97
BT-120×3 120 3 0.94
BT-120×5 120 5 1.75
BT-120×5 120 5 1.62
BT-120×6 120 6 1.93
BT-120×5.5 120 5.5 1.77
BT-120.5×11.5 120.5 11.5 3.741525
BT-122×25 122 25 8.2
BT-124×84 124 84 28.1
BT-125×50 125 50 16.875
BT-125×6 125 6 2
BT-125×6 125 6 2
BT-128×4.5 128 4.5 1.56
BT-130×8 130 8 2.78
BT-130×14 130 14 4.92
BT-132×34.5 132 34.5 12.2958
BT-132×19 132 19 6.77
BT-133×33 133 33 11.85
BT-135×31 135 31 11.3
BT-136×37 136 37 13.6
BT-140×3 140 3 1.13
BT-140×3 140 3 1.1
BT-140×5.5 140 5.5 2.06
BT-140×6 140 6 2.2
BT-140×8 140 8 2.998
BT-140×3 140 3 1.12
BT-140×6 140 6 2.25
BT-140×6 140 6 2.25
BT-140×5 140 5 1.88
BT-143×131 143 131 50.5
BT-145×33.5 145 33.5 13.01
BT-148×127 148 127 50.7492
BT-148×34.5 148 34.5 13.7862
BT-150×10 150 10 4.05
BT-150×12.5 150 12.5 5.1
BT-150×20 150 20 8.1
BT-150×8 150 8 3.22
BT-150×8 150 8 3.2
BT-151×41 151 41 16.7
BT-125×3 152 3 1.01
BT-152×37 152 37 15.18
BT-155×50 155 50 20.925
BT-160×28 160 28 12.1
BT-160×3 160 3 1.29
BT-160×6 160 6 2.6
BT-160×6 160 6 2.57
BT-165×2 165 2 0.891
BT-166×41 166 41 18.444
BT-146×167 167 146 65.8
BT-168×25.4 168 25.4 11.6
BT-171×77 171 77 35.5509
BT-175×162 175 162 76.55
BT-175×22 175 22 10.395
BT-175×4 175 4 1.9
BT-175×8 175 8 3.7
BT-175×18 175 18 8.51
BT-175×67 175 67 31.66
BT-180×47 180 47 22.84
BT-180×62 180 62 30.132
BT-180×55 180 55 26.73
BT-180×58 180 58 28.19
BT-185×3 185 3 1.49
BT-185×6 185 6 2.9
BT-185×55 185 55 27.4725
BT-185X6 185 6 2.98
BT-185X5.5 185 5.5 2.73
BT-185×5 185 5 2.48
BT-187×22 187 22 11.1078
BT-188×31 188 31 15.7356
BT-194×34 194 34 17.875
BT-197×35 197 35 18.6165
BT-200×6 200 6 3.219
BT-200×6 200 6 3.22
BT-200×3.4 200 3.4 1.84
BT-204X21.5 204 21.5 11.84
BT-205×66 205 66 36.531
BT-206×5.3 206 5.3 2.95
BT-95××210 210 95 53.9
BT-212×17 212 17 9.7308
BT-219×22 219 22 1386
BT-220×10 220 10 5.94
BT-220×12 220 12 7.128
BT-220×14 220 14 8.316
BT-220×16 220 16 9.504
BT-220×18 220 18 10.692
BT-220×20 220 20 11.88
BT-220×25 220 25 14.85
BT-220×30 220 30 17.82
BT-220×35 220 35 20.79
BT-220×40 220 40 23.76
BT-220×45 220 45 26.73
BT-220×50 220 50 29.7
BT-220×55 220 55 32.67
BT-220×60 220 60 35.64
BT-220X6 220 6 3.54
BT-230×3 230 3 1.86
BT-230×6 230 6 3.726
BT-230×7 230 7 4.32
BT-230X5 230 5 3.09
BT-232×52 232 52 32.5728
BT-238×54 238 54 4.7004
BT-240×57.5 240 57.5 37.26
BT-240×25 240 25 16.2
BT-250×40 250 40 27
BT-250×6 250 6 4.03
BT-253×64 253 64 43.7184
BT-261×69 261 69 48.6243
BT-262×86 262 86 60.83
BT-272×44 272 44 32.3136
BT-283×56 283 56 42.787
BT-285×66.5 285 66.5 51.17175
BT-286×23 286 23 17.82
BT-290×53 290 53 43.2
BT-297×28.7 297 28.7 23.44
BT-299×13 299 13 10.5
BT-300×10 300 10 8.1
BT-300×20 300 20 16.2
BT-300×30 300 30 24.3
BT-300×40 300 40 32.4
BT-300×50 300 50 40.5
BT-300×60 300 60 48.6
BT-301×71 301 71 55.5
BT-303X71 303 71 58.09
BT-304×35 304 35 28.8
BT-309.29×56 309.29 56 45.79
BT-321×24 321 24 20.8008
BT-322×28.1 322 28.1 24.88
BT-323×25 323 25 21.9
BT-323.5×64.7 323.5 64.7 56.51
BT-351×58 351 58 54.9666
BT-360×80 360 80 77.76
BT-361×28.7 361 28.7 28.49
BT-361×28.1 361 28.1 28.9
BT-363×25 363 25 24.6
BT-400×20 400 20 21.6
BT-400×25 400 25 27
BT-400×30 400 30 32.4
BT-400×35 400 35 37.8
BT-400×40 400 40 43.2
BT-400×45 400 45 48.6
BT-400×50 400 50 54
BT-430×30 430 30 34.83
BT-430×60 430 60 69.66



( Back to top )





Copyright@ 2003-2010 Shanghai Sourcing Ltd. All rights reserved.
