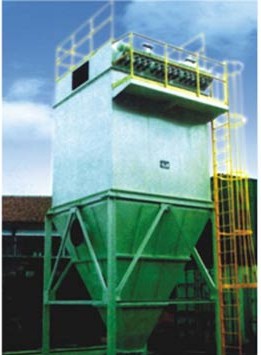

| Product Name: Dust Collector. |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|

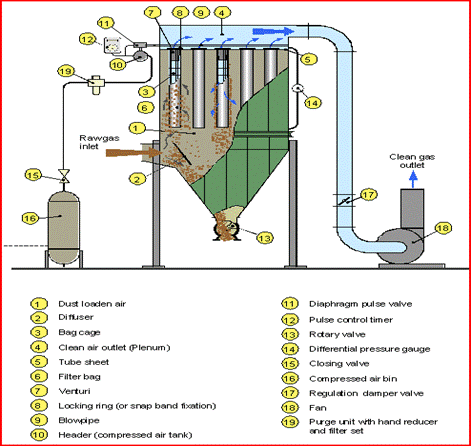

| 1) Designed on the basis of the USA Fulle Corp's
"jet-impulse" bag |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| dust collector fabric filter, |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| 2) Simple in selection and technical arrangement |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| 3) In-line ash-removal (compared with UF, HD rocking
type, shutdown of |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| blower is unnecessary for ash-removal) |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| 4) Higher performance and
cost ratio |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| 5)
External filtering fabric bag structure |
|
|
|
|
|
|
|
| Items |
DMC-32 |
DMC-48 |
DMC-64 |
DMC-80 |
DMC-96 |
DMC-112 |
|
|
|
|
|
|
| Filter
Area（M2） |
24 |
36 |
48 |
60 |
72 |
84 |
|
|
|
|
|
|
| Filter
Velocity（M/min） |
1.04~1.67 |
1.15~1.62 |
1.21~1.74 |
1.25~1.67 |
1.27~1.62 |
1.28~1.68 |
|
|
|
|
|
|
| Gas Volumn(M3/H) |
1500~2400 |
2500~3500 |
3500~5000 |
4500~6000 |
5500~7000 |
6500~8500 |
|
|
|
|
|
|
| Filter Bag(pcs) |
32 |
48 |
64 |
80 |
96 |
112 |
|
|
|
|
|
|
| Compressed Air
Consumption(M3/min) |
0.032 |
0.048 |
0.064 |
0.08 |
0.096 |
0.11 |
|
|
|
|
|
|
| Quantity of Pulse Valves |
4 |
6 |
8 |
10 |
12 |
14 |
|
|
|
|
|
|
| |
|
|
|
|
|
|
| Filter Material |
Negative pressure |
Pressure Drop |
Inlet Dust Loading |
Outlet Dust Loading |
Spray Pressure |
Pulse Valve Size |
|
|
|
|
|
|
| (Pa) |
(Pa) |
(g/Nm3) |
(g/Nm3) |
(Mpa) |
(inch) |
|
|
|
|
|
|
| For Choosing |
≤5000 |
＜1200 |
≤200 |
≤50 |
0.5~0.7 |
3/4~1 |
|
|
|
|
|
|
| * More Models are available upon the request |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
