Tapered roller bearing
Tapered roller bearings to bear the main radial-based radial and axial joint load. Bearing load capacity depends on the angle of the outer ring raceway, the greater the angle the greater the carrying capacity. Tapered Roller Bearings are widely used in automotive, mill, mining, metallurgy, plastics machinery and other industries.


   Single-row bearings   ( back to top )
Bearing the code Bearings with code Shape dimension (mm) Weight
d D T (kg)
11 Non-standard series
31114X2B 7714E 70 120 45 1.89
31160X2 1007760 300 500 95 67.7
31160X2/P5 D1007760 300 500 95 67.7
31176X2 1007776 380 620 112
31184X2 1007784 420 700 130
31 Series
33108 3007708 40 75 26 0.486
33109 3007709 45 80 26
33109R   45 85 26 0.538
33110 3007710 50 85 26 0.572
33110J   50 85 26 0.583
33111 3007711 55 9 30 0.564
33111/P6xYB2   55 95 30 0.88
33111/P6xY   55 95 30 0.881
33111/HA   55 95 30 0.88
33112 3007712 60 100 30
33113 3007713 65 110 34 1.27
33114 3007714 70 110 37
33114/V   70 120 33 1.71
33115 3007715 75 125 37 1.8
33116 3007716 80 130 37 2.79
33116/Q   80 130 37 1.84
33117 3007717 85 140 41
33118 3007718E 90 150 45 3.18
33118TN1   90 150 45
33118/HA   90 150 45 3.15
33118/YB2   90 150 45 3.22
33118/P6YB2   90 150 45 3.22
33118/P5YB2   90 150 45 3.22
33118TN1   90 150 45
33118/P6 E3007718 90 150 38.5 3.22
33118/HA/P5   90 150 38.5 3.22
33118/DF 3047718 90 150 90 6.43
33119 3007719 95 160 49
33120 3007720 100 165 52
33121 3007721 105 175 56
33122 3007722 110 180 56
33124 3007724 120 200 62
31 Non-standard series
33113X2 7813 65 110 30.3 1.1
33113X2/YB 7813Y 65 110 30.3 1.1
33113X2 7813E 65 110 30.5 1.13
33113X2 7813E 65 110 31
33113X2-1   65 110 30.35 1.13
33113X2 7813E 65 110 33 1.46
33114X2B 7714 70 120 45 1.89
33114X2 7714 70 120 32 1.6
33114X2B/P5 D7714 70 120 45 1.89
33114X2B/P6 E7714 70 120 45 1.89
33114X2R   70 120 45 1.94
33114X2R/P5 D67714 70 120 45 1.94
33114X2R/P6 E67714 70 120 45 1.94
33114X2A/YA6   70 120 33 1.51
3315/YB2 7815EK 75 135 44 2.64
33116X2B 27716E 8O 130 32
33116X2A   8O 130 32 1.6
33118X2 3007718 90 150 48 3.22
33118X3   90 160 38.5 2.57
33118Xl/P5 D3007718 90 160 45 3.22
33118Xl/P6 E3007718 90 160 45 3.72
33119X2/YA 7819 95 160 47 3.73
33119X2/YA 7819E 95 160 47 3.678


Bearing new models Bearing the old model Shape dimension Weight
d D T
32203 7503E 17 40 17.25
32203A   17 40 17.25 0.1
32203/P5 D7503E 17 40 17.25
32203/P6x Ex7503E 17 40 17.25
32200 7504E 20 47 19.25 O.158
32204/P5 D7504E 20 47 19.25
32200/P6 E7504E 20 47 19.25 O.157
32204/P6x Ex7504E 20 47 19.25
32205 7505E 25 52 19.25 O.199
32205B 7505EK 25 52 19.25 O.187
32205EK   25 52 19.25
32205/V1   25 52 19.25
32205/Z1   25 52 19.25
32205/P5 D7505E 25 52 19.25
32205/P6 E7505E 25 52 19.25 O.188
32205E-A 7505E-A 25 52 19.25 O.211
32205B/P6 E7505E 25 52 19.25 O.194
32205B/P5 D7505EK 25 52 19.25 O.187
32205B/P6 E7505EK 25 52 19.25 O.187
32205/YB2   25 52 19.25
32205G   25 52 19.25 O.183
32205G/R20-12G   20 52 19.25 0.208
32205/P6x Ex7505E 25 62 19.25 O.17
  7505EA 25 52 2O 0.211
32206 7506E 30 62 21.25 0.356
32206E   3O 62 21.25
32206/V1   30 62 21.25
32206/V2   30 62 21.25
32206/Z1   30 62 21.25
32206/P5 D7506E 30 62 21.25
32206/P6 E7506E 30 62 21.25 0.287
32206/P6x Ex7506E 30 62 21.25
32206/YA8   30 62 21.25 0.366
32207 7507E 35 72 24.25
32207/V1   35 72 24.25
32207/Z1   35 72 24.25
32207/P5 D7507E 35 72 24. 25
32207/P6 E7507E 35 72 24.25 0.426
32207/P6x Ex7507E 35 72 24.25
32207/YA8   35 72 24.25 0.645
32207A/HAP5   35 72 24.25 0.465
32208 7508E 40 80 24.75 0.561
32208C   40 80 24.75 0.532
32208/V1   4O 80 24.75
32208/Z1   40 80 24.75
32208/P4 C7508E 40 80 24.75
32208/P5 D7508E 40 80 24.75
32208/P6 E7508E 40 80 24.75 0.529
32208/P6x Ex7508E 40 80 24.75
32209A 7509 45 85 24.75 0.57
32209 7509E 45 85 24.75 0.567
32209B   45 85 24.75
32209/V1   45 85 24.75
32209/Z1   45 85 24.75
32209/P4 C7509 45 85 24.75 0.587
32209/P5 D7509E 45 85 24.75
32209/P6 E7509E 45 85 24.75 O.585
32209/P6x Ex7509E 45 85 24.75
32209/YB2   45 85 24.75
32209JK 7509E 45 85 24.75 0.583
  727509 45 85 24.75 0.671
  727509E 45 85 24.75 0.671
  727509/024 45 85 24.75 0.584
32210 7510E 5O 90 24.75 0.645
32210B   5O 90 24.75
32210/V1   5O 90 24.75
32210/Z1   5O 90 24.75
32210/P4 C7510E 5O 90 24.75
32210/P5 D7510E 5O 90 24.75 O.645
32210/P6 E7510E 5O 90 24.75 O.645
32210/P6x Ex7510E 50 90 24.75
32211 7511E 55 100 26.75 O.93
3221l/P4 C7511E 55 100 26.75
32211/P5 D7511E 55 100 26.75
3221l/P6 E7511E 55 100 26.75 O.853
32211/P6x Ex7511E 55 100 26.75
  751lEK 55 100 26.75 1.875
32212 7512E 60 110 29.75 1.26
32212/V   60 110 29.75 1.26
32212/P4 C7512E 60 110 29.75
32212/P5 D7512E 60 110 29.75
32212/P6 E7512E 60 110 29.75 1.17
32212/P6x Ex7512E 60 110 29.75
32212/YA   60 110 29.75 1.14
32213 7513E 65 120 32.75 1.28
32213/P4 C7513E 65 120 32.75
32213/P5 D7513E 65 120 32.75 1.58
32213/P6 E7513E 65 120 32.75 1.58
32213/P6x Ex7513E 65 120 32.75
32213/YA6   65 120 32.75 1.58
32215/P5Z1 D7513Z1 65 120 32.75 1.59
32213Q6 7513EZ 65 120 32.75 1.57
32214 7514E 70 125 33.25 1.66
32214/P4 C7514E 70 125 33.25
32214/P5 D7514E 70 125 33.25 1.66
32214/P6 E7514E 70 125 33.25 1.66
32214/P6x Ex7514E 70 125 33.25
32214/YA6   70 125 33.25 1.64
32215 7515E 75 130 33.25 1.76
32215/P4 C7515E 75 130 33.25
32215/P5 D7515E 75 130 33.25 1.76
32215/P6 E7515E 75 130 33.25 1.76
32215/P6x Ex7515E 75 130 33.25
32215/YA6   75 130 33.25 1.7
32215R   75 130 33.25 1.83
32216 7516E 80 140 35.25 2.19
32216/P4 C7516E 80 140 35.25
32216/P5 D7516E 80 140 35.25 2.19
32216/P6 E7516E 80 140 35.25 2.19
32216/P6x Ex7516 E 8O 140 35.25
32216/S2 7516ET2 8O 140 35.25 2.19
32216/YA6   8O 140 35.25 2.19
32216/YA6-1   8O 140 35.25 2.19
32216/YA6-2   8O 140 35.25 2.18
  E7516X 8O 140 35.25 2.13
32216/YB2 7516 8O 140 35.5
32216Q6 7516EZ1 8O 140 35.25 2.15
32217 7517E 85 150 38.5 2.7
32217/P4 C7517E 85 150 38.5
32217/P5 D7517E 85 150 38.5 2.7
32217/P6 E7517E 85 150 38.5 2.7
32217/P6x Ex7517E 85 150 38.5
32217Q6 7517EZ1 85 150 38.5 2.75
32218 7518E 90 160 42.5 3.61
32218R 67518 90 160 42.5 3.5
32218/Z 7518EZ 90 160 42.5 3.33
32218/YA 7518E-A 90 160 42.5 3.44
32218/YA2 7518EX 90.5 160 42.5 3.39
32218/YA5 7518EK 90 160 42.5 3.42
32218/P5 D7518E 90 160 42.5 3.61
32218/p6 E7518E 90 160 42.5 3.61
32218/P6x Ex7518E 90 160 42.5
32218/P5Z1 D7518Z1 90 160 42.5 3.33
32218Q6 7518EZ1 90 160 42.5 3.3
32219 7519E 95 170 45.5 3.43




Bearing new models Bearing the old model Shape dimension Weight
d D T
  95 170 45.5 4.211
32219/P5 D7519E 95 170 45.5 4.34
32219/P6 E7519E 95 170 45.5 4.34
32219/P6x Ex7519E 95 170 45.5
32219/YA 7519EK 95 170 45.5 4.25
32220 7520E 100 180 49 5.31
32220/P5 D7520E 100 180 49 5.31
32220/P6 E7520E 100 180 49 5.31
32220/P6x Ex7520E 100 180 49
32220Q6 7520EZ1 100 180 49 5.14
32221 7521E 105 190 53 6.34
32221/P5 D7521E 105 190 53
32221/P6 E7521E 105 190 53 6.37
32221/P6x Ex7521E 105 190 53
32222 7522E 110 200 56 7.62
32222/P5 D7522E 110 200 56 7.62
32222/P6 E7522E 110 200 56 7.62
32222/P6x Ex7522E 110 200 56
32222/DB   110 200 122.36 16.1
32224 7524E 120 215 61.5 9.6
32224/P5 D7524E 120 215 61.5 9.6
32224/p6 E7524E 120 215 61.5 9.6
32224/P6x Ex7524E 120 215 61.5
32224/DF   120 215 123 19.5
32226 7526E 130 230 67.75 11.8
32226/YA 7526EK 130 230 67.75 11.3
32226/P5 D7526E 130 230 67.75 11.8
32226/P6 E7526E 130 230 67.75 11.8
32226/P6x Ex7526E 130 230 67.75
32226/S0 7526ET 130 230 68 11.8
  7526ET/P6 130 230 68 11.8
  7526EK 130 230 67.7 11.9
  7526EY 130 230 67.75 11.9
32226/TS   130 230 68.25 12.32
32228 7528E 140 250 71.75 14.7
32228/P5 D7528E 140 250 71.75
32228/P6 E7528E 140 250 71.75 14.4
32228/P6 E7528E 140 250 71.75 14.4
32228/P6x Ex7528E 140 250 71.75
32230 7530E 150 270 77 8.4
32230/P5 D7530E 150 270 77 8.4
32230/P6 E7530E 150 270 77 8.4
32230/P6x Ex7530E 150 270 77
32230/DF   150 270 154 38.1
32232 7532E 160 290 84 23.3
32232/P5 D7532E 160 290 84
32232/P6 E7532E 160 290 84
32232/P6x Ex7532E 160 290 84
32232/DBC3   160 290 178 48.6
32232/DBC3YA10   160 290 210 53.5
32232TI79/DBC230   160 290 179 48.9
32234 7534E 170 310 91 32.3
32234/P5 D7534E 170 310 91
32234/P6x Ex7534E 170 310 91
32236 7536E 180 320 91
32236/P5 D7536E 180 320 91
32236/P6 E7536E 180 320 91
32236/P6x Ex7536E 180 320 91
32236/DF   180 320 192 32.3
32236/DF   180 320 182 64.6
32236T196/C3DB   180 320 196 67.5
32238 7538E 190 340 97 36.1
32238/P5 D7538E 190 340 97 35.7
32238/P6 E7538E 190 340 97 35.7
32238T207/C3DB   190 340 207 75.9
32240 7540E 2OO 360 104 43.6
32240/TS   2OO 360 104 42.5
32240/P5 D7540E 2OO 360 104 44.7
32240/P6 E7540E 2OO 360 104 44.7
32244 7544E 220 400 114 62.7
32244/S0   220 400 114 62.7
32244/DF   220 400 228 125.4
32248 7548E 240 440 127 81.3
32248/P5 D7548E 240 440 127
32248/P6 E7548E 240 440 127
32252 7552E 260 480 137 100.2
32256 7556E 280 500 137 103
32206X1   30 68 2O
32209X1 127509 45 85 24.75 0.593
32209X2A   45 85 24.72 0.59
32209/XB2 72759 45 85 25 0.584
32210X2 7510 50 90 25 0.612
32211/HAPX   55 100 26.75 0.88
32212/HAP6X   60 110 29.75 1.26
32213X3 7513 65 110 33 1.5
32215X2 7515 75 130 34 1.68
32215X2/P5 D7515 75 130 34 1.67
32215X2/P6 E7515 75 130 34 1.68
32216X2 7516 80 140 36 2.13
32216X2/HV 7516X 80 140 36 2.13
32216X2/P5 D7516 80 140 36 2.13
32216X2/P6 E7516 80 140 36 2.13
32216X2/P5Z D7516Z 80 140 36 2.13
32216X2/P6Z E7516Z 80 140 36 2.13
32218X2 7518 90 160 43 3.36
32218X2/P5 D7518 90 160 43 3.36
32218X2/P6 E7518 90 160 43 3.36
32220X2 7520 100 180 49.5 4.94
32220X2/P5 E7520 100 180 49.5 4.94
32222X2/P6 E7522K 110 200 56.5 7.7
32226X2 7526 130 230 68.5 11.1
32228T158/DB   140 250 158 31
32230/C3DF   150 270 154 38.4
32244X2 7544E 220 400 115 48.1
32244X2/P5 D7544E 220 400 115 48.1
32244X2./P6 E7544E 220 400 115 48.1
32248X2/DB 3-745 240 440 294
Bearing new models Bearing the old model Shape dimension Weight
d D T
30202 7202E 15 35 11.75 0.056
30203 7203E 17 40 13.25
30203E   17 40 13.25
30203/V1   17 40 13.25
30203/Z1   17 40 13.25
30203/P5 D7203E 17 40 13.25
30203/P6 E7203E 17 40 13.25 0.078
30203/P6x Ex7203E 17 40 13.25
30203/YB2   17 40 13.25
30204 7204E 20 47 15.25 0.165
30204E   20 47 15.25
30204/TS   20 47 15.25 0.12
30204/V1   20 47 15.25
30204/Z1   20 47 15.25
30204/P4 C7204E 20 47 15.25
30204/P5 D7204E 20 47 15.25
30204/P6 E7204E 20 47 15.25 0.127
30204/P6x Ex7204E 20 47 15.25 0.126
30204/YA8   20 47 15.25 0.12
30204BE   20 47 15.25 0.126
30204BE/P6x Ex30204BE 20 47 15.25 0.114
30205 7205E 25 52 16.25
30205/V1   25 52 16.25
30205/V2   25 52 16.25
30205/Z1   25 52 16.25
30205/P4 C7250E 25 52 16.25
30205/P5 D7205E 25 52 16.25
30205/P6 E7205E 25 52 16.25 0.157
30205/YA8   25 52 16.25 0.168
30208A/P5   25 52 16.25
30205/P6x Ex7205E 25 52 16.25
30205/YA/P6   25 52 16.25 0.155
30206 7206E 30 62 17.25 0.226
30206A   30 62 17.25 0.231
30206/V1   30 62 17.25
30206/Z1   30 62 17.25
30206/P4 C7206E 30 62 17.25
30206/P5 D7206E 30 62 17.25
30206/P6 E7206E 30 62 17.25 0.232
30206/P6x Ex7206E 30 62 17.25
302/32 72/32 32 65 18.25 0.28
  72/32E 32 65 18.25 0.267
30207 7207E 35 72 18.25 0.318
30207/V1   35 72 18.25
30207/Z1   35 72 18.25
30207/P2 DB7207E 35 72 18.25 0.327
30207/P4 C7207E 35 72 18.25
30207/P5 D7207E 35 72 18.25
30207/P6 E7207E 35 72 18.25 0.333
30207/P6x Ex7207E 35 72 18.25 0.334
30207/YB2   35 72 18.25 0.333
30208 7208E 40 80 19.75 0.431
30208J-N   40 80 19.75 0.422
30208/V1   40 80 19.75
30208/Z1   40 80 19.75
30208/P4 C7208E 40 80 19.75
30208/P5 D7208E 40 80 19.75 0.431
30208/P6 E7208E 40 80 19.75 0.431
30208/P6x Ex7208E 40 80 19.75
30208/P6/YA   40 80 19.75 0.422
30209 7209E 45 85 20.75 0.464
30209A 7209EK 45 85 20.75 0.54
30209/V1   45 85 20.75
30209/Z1   45 85 20.75
30209/P4 C7209 45 85 20.75 0.474
30209/HP 1209PN 45 85 20.75 0.475
30209/P2 B7209E 45 85 20.75
30209/P4 27209E 45 85 20.75
30209/P5 D7209E 45 85 20.75
30209/P6 E7209E 45 85 20.75 0.474
30209/P6x Ex7209E 45 85 20.75
30209Q6 7209EZ 45 85 20.75 0.442
  B7209LK 45 85 20.75 0.437
30210 7210E 50 90 21.75
30210E   50 90 21 75
30210/TS   50 90 21 75 0.58
30210/V1   50 90 21 75
30210/Z1   50 90 21 75
30210/P2 B7210E 50 90 21 75
30210/P4 C7210E 50 90 21 75
30210/P5 D7210E 50 90 21.75
30210/P6 E7210E 50 90 21.75 0.55
30210/P6x Ex7210E 50 90 21.75
30211 7211E 55 100 22.75 0.713
3021l/P4 C7211E 55 100 22.75
3021l/P5 D7211E 55 100 22.75
30211/P6 E7211E 55 100 22.75 0.713
30211/P6x Ex7211E 55 100 22.75
30211/YA   55 100 22.75 0.689
30211 X2   55 100 24.75
30212 7212E 60 110 23.75 0.923
30212E   60 110 23.75
30212/P4 C7212E 60 110 23.75
30212/P5 D7212E 60 110 23.75 0.923
30212/P6 E7212E 60 110 23.75 0.923
30212/P6x Ex7212E 60 110 23.75
30213 7213E 65 120 24.75 1.58
30213E   65 120 24.75
30213/P4 C7213E 65 120 24.75
30213/P5 D7213E 65 120 24.75 1.58
30213/P6 E7213E 65 120 24.75 1.58
30213/P6x Ex7213E 65 120 24.75
30214 7214E 70 125 26.25 1.29
30214/P4 C7214E 70 125 26.25
30214/P5 D7214E 70 125 26.25 1.29
30214/P6 E7214E 70 125 26.25 1.29
30214/P6x Ex7214E 70 125 26.25
30214/T 7214M 70 125 26.25 1.1
30214/P6T E7214M 70 125 26.25 1.1
30215/P6/DF   75 130 25 2.83
30215 7215E 75 130 27.25 1.364
30215/S0 7215ET 75 130 27.25 1.4
30215/P5 D7215E 75 130 27.25 1.4
30215/P6 E7215E 75 130 27.25 1.4
30215/P6x Ex7215E 75 130 27.25
30215/DFP69YB2   75 130 55 3
302/76X   76 141 28.25
30216 7216E 80 140 28.25 1.56
30216/P4 C7216E 80 140 28.25
30216/P5 D7216E 80 140 28.25
30216/P6 E7216E 80 140 28.25 1.84
30216/P6x Ex7216E 80 140 28.25
30217 7217E 85 150 30.5 2.05
30217/P5 D7217E 85 150 30.5 2.05
30217/P6 E7217E 85 150 30.5 2.05
30217/P6x Ex7217E 85 150 30.5
30218 7218E 90 160 32.5 2.73
30218/P5 D7218E 90 160 32.5 2.54
30218/P6 D7218E 90 160 32.5 2.7
30218/P5 D7218E 9O 160 32.5 2.54
30218/P6 E7218E 90 160 32.5 2.37
30218/P6x Ex7218E 90 160 32.5
30219 7219E 95 170 34.5 3.27
30219/P5 D7219E 95 170 34.5 3.27
30219/P6 E7219E 95 170 34.5 3.27
30219/P6x Ex7219E 95 170 34.5
30220 7220E 100 180 37 3.56
30220/TS   100 130 37 4.18
30220/P4   100 180 37 3.56
30220/P5 D7220E 100 180 37 3.56
30220/P6 E7220E 100 180 37 3.56
30220/P6x Ex7220E 100 180 37
30221 7221E 105 190 39 4.47
30221/P5 D7221E 105 190 39 4.47
30221/P6 E7221E 105 190 39 4.47
30221/P6x Ex7221E 105 190 39
30222 7222E 110 200 41 5.27
30222/P5 D7222E 110 200 41 5.27
30222/P6 E7222E 110 200 41 5.27
30222/P6x Ex7222E 110 200 41
30222EDF   110 200 82
30224 7224E 120 215 43.5 6.32
30224/P5 D7224E 120 215 43.5 6.32
30224/P6 E7224E 120 215 43.5 6.32
30224/P6x Ex7224E 120 215 43.5
30226 7226E 130 230 43.75 7.02
30226/P5 D7226E 130 230 43.75
30226/P6 E7226E 130 230 43.75
30226/P6x Ex7226E 130 230 43.75
30228 7228E 140 250 45.75 8.8
30228/P5 D7228E 140 250 45.75 8.8
30228/P6 E7228E 140 250 45.75 8.8
30228/P6x Ex7228E 140 250 45.75
30228/S0 7228ET 146 250 46 8.8
30228/P6S0 E7228ET 146 250 46 8.8
30230 7230E 150 270 49
30230/P5 D7230E 150 270 49
30230/P6 E7230E 150 270 49 11.2
30230/P6x Ex7230E 150 270 49
30232 7232E 160 290 52 13.4
30232/P5 D7232E 160 290 52
30232/P6x Ex7232E 160 290 52
30234 7234E 170 310 57
30234/P5 E73234E 170 310 57
30234/P6   170 310 57 17
30234/P6x Ex7234E 170 310 57
30236 7236E 180 320 57 17.8
30238 7238E 190 340 60 20.6
30240 7240E 200 360 674 25.4
30244 7244E 220 400 72 36.8
30244/S0 7244ET 220 400 72 36.8
30248 7248E 240 440 79 46.2
30252 7252E 260 480 89 62.4
30256 7256E 280 500 89 66
30204X2/1%XYB5   20 47 15 0.123
30205X2 567205E 25 52 23.75 0.195
30205X2/P5   25 52 23.75 0.2
30205X2/P6 E567205E 25 52 23.75 0.195
30207X   35 62 18
30208X2 7208 40 80 20 1.66
30214X3/YA6   70 130 57 2.92
30218/X2 7218 90 160 33 2.35
30218X2/P6 E7218 90 160 33 2.53
30219X2/HV 7219X 95 170 35 3.17
30220X2/HV 7220X 100 180 37.5 3.65
30224X2/P6 E7224 120 215 44 5.91
30226X2 7226E 130 230 44.5 7.25
30230X2 7230E 150 270 48.5 11.2
30230X2/P5 D7230E 150 270 48.5 11.2
30230X2 7230K 150 270 50 10
30230X2/P6 E7230K 150 270 50 10
30232X2   160 290 50 17
30244X2 7244 220 400 73 37.6
30244X2/S0 7244T 220 400 73 35.4
30244X2/P5 D7244 220 400 73 37.6
30244X2/P6 E7244 220 400 73 37.6


Bearing new models Bearing the old model Shape dimension Weight
d D T
33205 3007205 25 52 22
33205/Q   25 52 22 0.22
332/28 30072/28 28 58 24 3.286
33206 3007206E 30 62 25 3.355
33206/V   30 62 25 0.343
332/32   32 65 26 0.385
  30072/32EK 32 65 27.25 0.335
332/50.8 30079/50.8 50.8 100 35 1.24
33207 3007207E 35 72 28 0.522
33207/V   35 72 28 0.519
33207/HE   35 72 28
33208 3007208 40 80 32
33209 3007209 45 85 32
33210 3007210 5O 90 32 1.17
33210/P5 D3007210 5O 90 32 0.835
33210/P6 E3007210 5O 90 35 0.835
33211 3007211 55 100 30.162
33212 3007212 60 110 29.794
33213 3007213 65 120 41 1.99
33213/P5 D3007213 65 120 41 2.02
33213/P6 E3007213 65 120 41 2.02
33213/YB2   65 120 41 2.02
33213/1%YB2   65 120 41 2.02
33213/P5YB2   65 120 41 2.02
33213/HA   65 120 41 2.02
33213TN1   65 120 41
33213HA/P5   65 120 41 2.02
33214 3007214 70 125 41
33215 3007215 75 130 41 2.27
33216 3007216 80 140 46 2.89
33217 3007217 85 150 49 3.64
33218 3007218 90 160 55
33219 3007219 95 170 58
33220 3007220 100 180 63
33220/P5 D3007220EK 100 180 63 6.71
33220/P6 E3007220EK 100 180 63 6.71
33221 3007221 105 190 68
332171   510.13 800 285 532
33208X2A 3103410M1 40 80 30 0.669
33211X2A 3103410M1 55 100 32 1.01
33211/HAP6X   55 100 35 1.6
33212X3   60 115 40 1.86
33215X2 7815EK 75 130 44.5 2.57
33215X3 7815E 75 135 44.5
  7.82E + 04 75 135 44.5 2.69
33215X2A   75 135 45 2.58
33215X2A-1   75 135 45 2.58
33216X2 7816E 80 140 45 2.77
33216X2A   80 140 46 2.94
33216X3AN/YB2   8O 150 42 3.17
33217X2/HV 7217X 85 150 30.5 2.03
33218X2 7818 90 160 50 3.867
33218X2A   90 160 50 3.82
33220/YB2   100 180 63


Bearing new models Bearing the old model Shape dimension Weight
d D T
30302 7302E 15 42 14. 25
30302/P5 D7302E 15 42 14. 25
30302/P6 E7302E 15 42 14. 25 0.092
30302/P6x Ex7302E 15 42 14. 25
30303 7303E 15 47 15.25
30303D   15 47 15.25 0.15
30303/V1   17 47 15.25
30303/Z1   17 47 15.25
30303/P5 D7303E 17 47 15.25
30303/P6 E7303E 17 47 15.25 0.13
30303/P6x Ex7303E 17 47 15.25
30300 7300E 20 52 16.25 0.167
30304A   20 52 16.25 0.165
30300/V1   20 52 16.25
30300/Z1   20 52 16.25
30300/P5 D7300E 20 52 16.25
30300/P6 E7304E 20 52 16.25 0.168
30300/P6x Ex7304E 20 52 16.25
30300C   20 52 16.25 0.168
30305 7305E 25 62 18.25 O.267
30305B 27705E 25 62 18.25 0.268
30305/V1   25 62 18.25
30305/Z1   25 62 18.25
30305/P5 D7305E 25 62 18.25
30305/P6 E7305E 25 62 18.25 0.265
30305/P6x Ex7305E 25 62 18.25 0.266
30305A/P6   25 62 18.25 0.263
30306 7306E 30 72 20.75 0.649
30306/TS   30 72 20.75 0.42
30306/V1   30 72 20.75
30306/Z1   30 72 20.75
30306/P5 D7306E 30 72 20.75
30306/P6 E73606E 30 72 20.75 0.389
30306/P6x Ex7306E 30 72 20.75
30306/HA   30 72 20.75 0.39
30306B/HC3YB2   30 72 20.75 0.379
30306C   30 72 20.75 0.387
  7306EX 30 72 24 0.39
30307 7307E 35 80 22.75 0.515
30307/V1   35 80 22.75
30307/Z1   35 80 22.75
30307/P5 D7307E 35 80 22.75
30307/P6 E7307E 35 80 22.75 0.515
30307/P6x Ex7307E 35 80 22.75
30307B   35 80 22.75 0.425
30307C   35 80 22.75
30307/P6S0 E7307ET 35 80 22.75 0.53
30308 7308E 40 90 23
30308 7308 40 90 25.25
30308 7308E 40 90 25.25 0.734
30308D   40 90 25.25 0.742
30308E   40 90 25.25
30308/V1   40 90 25.25
30308/Z1   40 90 25.25
30308/P5 D7308E 40 90 25.25
30308/P6 E7308E 40 90 25.25 0.761
30308/P6x Ex7308E 40 90 25.25
30308R/YA6   40 90 25.25 0.783
30309 7309E 45 100 27.25 0.987
30309E   45 100 27.25
31309EF   45 100 32 0.97
30309/V1   45 100 27.25
30309/Z1   45 100 27.25
30309/P5 D7309E 45 100 27.25 0.984
30309/P6 E7309E 45 100 27.25 0.984
30309/P6x Ex7309E 45 100 27.25
30310 7310E 50 110 29.25 1.26
303010/V1   50 110 29.25
303010/Z1   50 110 29.25
30310/P5 D7310E 50 110 29.25 1.26
30310/P6 E7310E 50 110 29.25 1.26
30310/P6x Ex7310E 50 110 29.25
30311 7311E 55 120 31.5 1.65
30311/P5 D7311E 55 120 31.5 1.65
30311/P6 E7311E 55 120 31.5 1.65
30311/P6x Ex7311E 55 120 31.5
30311R   55 120 31.5
30311DF
31311/YB4   55 120 31.5
31311/YB2   55 130 36.1
30311R-00   55 128 22 1.792

   Double-row bearings  ( back to top )



Bearing new models Bearing the old model Shape dimension(mm) Weight
d D B1 (kg)
370936X3   180 249.5 70 12.468
370938X2   190 290 100
351972   380 520 145
351976 1097976 380 520 145 78.8
351980 1097980 400 540 150 86.9
351980/P5 D1097980 400 540 150 86.9
351980/P59 D1097980U 400 540 150 86.9
351984 1097984 420 560 145 88.7
351984/P5 D1097984 420 560 145 88.7
351984/P59 D1097984U 420 560 145 88.7
351988 1097988 440 600 170 114
351988/P5 D1097988 440 600 170 114
351992 1097992 460 620 174 130
351992/P6   400 540 150 134
351996 1097996 480 650 180 151
3519/500 10979/500 500 670 180 159
3519/500/HC 10979/500S 500 670 180 160
3519/500/HCYA5   500 670 180 156
3519/500P5 D10979/500 500 670 180 159
3519/500/P6 E10979/500 500 710 180 159
3519/530 10979/530 53O 710 190 190
3519/530J 10979/530 530 710 190 176
3519/530/P5 D10979/530 530 710 190 190
3519/5302/P6 E10979/530 530 710 190 190
3519/560 10979/560 560 750 213 235
3519/560/P5 D10979/560 560 750 213 235
3519/560/P6 E10979/560 560 750 213 235
3519/600 10979/600 600 800 205 247
3519/600/HC 10979/600S 600 800 205 271
3519/600/P5 D10979/600 600 800 205 266
3519/630 10979/630 630 850 242 368
3519/630/C2 2G10979/630 630 850 242 368
3519/670 10979/670 670 900 240 416
3519/670/C2 2G10979/670 670 900 240 416
3519/710 10979/710 710 950 240 445
3519/710/P6 D10979/710 710 950 240 444
3519/750 10979/750 750 1000 264 546
3519/750/HC 10979/750S 750 1000 264 505
3519/750X2 10979/750K 750 1000 255 513
3519/750X2/HC 10979/750S 750 1000 255 494
  10979/750KS
3519/800 10979/800 800 1060 270 6O6
3519/800/S0 10979/800T 800 1060 270 604
3519/850 10979/850 850 1120 268 636
3519/850X2   850 1120 268 647
  10979/850Y 850 1120 272 664
3519/900 10979/900 900 1180 275 763
351990/HC   900 1180 275
3519/950/HC 10979/9505 950 1250 220 911
3519/950 10979/950 950 1250 30O 909
3519/950/P5 D70979/950S 950 1250 300 909
3519/1120 10979/1120 1120 1460 335 1344
19非标系列
351976X2   380 520 149 82.8
351980X2 1007980 400 540 70
35198X2/P5 D1007980 400 540 70
3519/750X2/HC   750 100 255



Bearing new models Bearing the old model Shape dimension(mm) Weight
d D B
351044   220 340 113
351056 77156 280 420 133 58.1
351068 97168 340 520 180 119
351072 97172 360 540 185 120
351072/YA1 97172Y 360 540 185 128
351072/P5YA1 D97172Y 360 540 185 128
351076 97176 380 560 190 137
351080 97180 400 600 206 179
351080/P5 D97180 4O0 600 206 180
351080/HAC3   400 600 206 180
351084 97184 420 620 206 191
351084/P5 D97184 420 620 206 191
351088 97188 440 650 212 213
351092 97192 460 680 230 253
371092   460 680 230 253
351092 97192K 46O 680 230 267
351096 97196 480 700 240 281
351096/P5 E97196 480 700 240 281
3510/500 971/500 500 720 234 289
3510/500J 971/500 500 720 234 276
3510/530 971/530 530 780 255 410
3510/560 971/560 56O 820 26O 4O9
3510/560/P5 D971/560 560 820 260 409
3510/600 971/600 600 870 270 500
3510/630 971600 630 920 295 560
3510/670 971/670 670 980 310 710
3510/710 971/710 710 1030 315 810
351068X2   340 520 190
351072X2 97872 360 540 169 122
351076X2 97876 380 560 171 136
351080/HC 77180 400 600 356 345
371080X2   400 600 190 174
351084X2D1 37784 420 620 190 170.98
351088X2/YA3 413088 440 650 157 171
351088X2/HC 77188 440 650 355 401
3510/560X2/YA6   560 820 34O 741
3510/710X2 977/710 710 1030 236 651
Bearings the new model Bearing the old model Shape dimension(mm) Weight
d D B
352922A/P5   160 220 9O
352926 2097926E 130 180 73 4.84
352928 2097928E 140 190 73 6.2
352930 2097930 150 210 86 9.32
352930B 2057930 150 210 86 9.12
352930 2097930E 150 210 86 9.32
352930/P4 C2057930 150 210 86 9.12
352930/P5 D2057930 150 210 86 9.12
352930/P6 E2057930 150 210 86 9.12
352932 2097932E 160 220 86 10.4
352932/P5   160 220 90
352934 2097934E 170 230 86 12.2
352936 2097936E 180 250 102 13
352936/S0 2097936T 180 250 95 13
352938 2097938E 190 260 102 14.4
352940 2097940E 200 280 106 18.1
352944 2097944E 220 300 116 21.7
352948 2097948E 24O 320 116 22.2
352952 2097952E 26O 360 141 37
352952/P5 D2097952 260 360 134 39.8
352952/P6 E2097952 260 360 134 39.8
352952-1   260 360 141
352956 2097956E 280 380 141 41.3
352956/P5 D2007956 280 380 141 19.8
352960/P5 D2097960 300 420 160 60.8
352960/P6 E2097960 300 420 160 60.8
352960 2097960E 300 420 166 60.8
  97860 300 500 200 142
352964 2097964E 320 440 166 67
352968 2097968E 340 460 166 76.84
352972 2097972E 360 480 166 74.3
  97724 120 200 140 23.2
352926X2 2097926 130 180 70 4.87
352928X2 2097928 140 190 70 4.99
352930X2 2097930 150 210 80 9.32
352930X3   150 225 79 11.8
352932X2 2097932 160 220 82 8.15
352934X2 87834 170 230 65 6.79
352934X2 2097934 170 230 82 8.11
352936X2 2097936 180 250 95 13
352936X3   180 270 109.538 19.2
352936X2/YA1 2097936K 180 250 95 14.2
352936X2/YB4   180 250 95 13
352936X2D1   180 250 95 13
352936X2D1/YA1 37836K 180 250 95 13.8
352936X2/CA 4G2097936K 180 250 95 11.9
352936X2/YA4   180 250 95
352936X2/DF   180 250 190 26.7
352936X2/DF-1   180 250 190 26.7
352936X2/DF-1.53   180 250 190 1.65
352936X2/DF-1.63   180 250 190 0.5
352938X2 2O97938 190 260 95 13.3
352938X2D1   190 260 95
352938X2/DB   190 260 95 14.4
352940X2 2097940 200 280 105 18.8
352940X2 2097940 200 280 110 18.1
352940X2/YA1 2097940K 200 280 110 19.7
352940X2/YA1 2097940EK 200 280 116 22
352940X3-2Z   200 290 121 26.1
352940X2-1   200 280 109 18.1
351940X2/P5   200 280 109
352940X3/YA10   200 320 100 30.3
352944X2 2097944 220 300 110 21.2
352944X2/P5 D2097944 220 300 110 21.2
352944X2/P6 E2097944 220 300 110 21.2
352948X2/YAYB2 2097948K 240 320 87 21.6
352948X2 2097948 240 320 105 22.3
352948X2/YB2 2097948 240 320 105 22
352948X2/P5 D2097948 240 320 105 22.3
352948X2/P6 E2097948 240 320 105 22.3
352948X2 2097948 240 320 110
352948X2/YA1 2097948K 240 320 110 23
352948X2/YA 2097948K1 240 320 110 23.2
352948X2-1 2097948 240 320 110
352948X2-2   240 320 109
352948X2-1/YA1W   240 320 109
352952X2-1   260 360 105
352952X2-2 97852 260 360 105
352952X2 2097952 260 360 108 40.11
352952X2/YB2 2097952 260 360 108 39.1
352952X2/YAYB2 2097952K 260 360 108 38.9
372952K   260 360 134
352952X2 2057952 260 360 134 39.9
352952X2-1 209752 260 360 134
352952X2/P5 D2057952 260 360 134 39.9
352952X2/P6 E2057952 260 360 134 39.9
352952X2A   260 360 134
352952X2/YA1 2097952K 260 360 134 39.7
352952X2/C9YA 2097952UK 260 360 134 38.9
352952X2/C3   260 360 134 39.9
352956X2/P6 E2057952 260 360 134 36.8
372952 87952 260.35 444.5 196.85 123
372952X2   260 360 65
372952X2-1   260 360 92
352956X2 2097956 280 380 134 44
352956X2/P5 D2097956 280 380 134 44
352956X2/P6 E2097956 280 38O 134 44
352956X2/P59 D2097956U 280 380 134 41.3
372956X2K   280 38O 134
352960X2 2097960 300 420 160 60.8
352960X2/P5 D2097960 300 420 160 60.8
352960X2/P6 E2097960 300 420 160 60.8
352960X2/P59 D2097960U 300 420 160 63
352960X2-1 2097960K 300 420 160 60.8
352960X2 97860 300 420 175 75.3
352960X2-2 97860 300 420 175 70
352960/YB2 97760 300 420 175
352960X2/C9 97860U 300 420 175 75.3
372960X2/YA   300 440 105 42.6
372960X3/YA   300 440 105 51.6
352964X2 2097964 320 460 160 67
352964X2/C2 2G2097964 320 460 160 67
352968X2 2097968 340 460 160 71
352968X2/P5 D2097968 340 460 160 71
352968X2/P6 E2097968 340 46O 160 71
352972X2 2097972 360 480 160 74.7
3529/1600X2D1 978/1600 1600 2060 560 4089

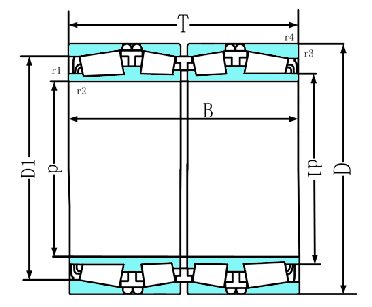

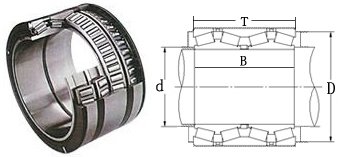

   Four-row bearings  ( back to top )
Bearing new models Bearing the old model Shape dimension(mm) Weight
d D T
3806/447.675   447.675 635 463.55 300
3806/448   448 635 464
380695   475 660 450
3806/479.425 M272749D 479. 42 679.45 495.3
  /M272710
  /M272710D
381096-2RS   480 700 420
380696   480 678 494
3806/482.6   482.6 615.95 425
3806/482.6-2RS   482.6 615.95 425
3806/488.95   488.95 622.3 365.125
3806/488.95/YA3 3-720 488.95 622 365.125 266
3806/488.95/YA3/P5 D3-720 488.95 622.3 365.125 266
3806/488.95-2RS   488.95 622.3 365.125
380698   490 625 385
380698/HC   490 625 385 278
3806/500-1   500 670 515
3806/500-2   500 705 515
3806/500-3   500 710 430
3806/5004   5O0 729.805 440
3806/508   508 762 420
3806/508 EE531201D 508 762 143.55
  /EE531300
  /531301XD
3806/510-2RS   510 655 377
3806/520   520 735 535
3806/530 30777/530 530 880 544 1350
3806/530/C2 2G30777/530 530 880 544 1350
3806/530/C3 3G30777/530 530 880 544 1350
3806/530-1   530 730 540
3806/530-2   53O 750 480
3806/530-3   530 750 550
3806/530-4 30777/530-4 530 880 544
3806/540J/HC   540 690 400 375
3806/540J/HCP6   540 690 400 375
3806/540-2RS   540 690 434
3806/570-1   570 780 515
3806/570-2   570 810 590
3806/571.5-2RS   571.5 812.8 93.725
3506/571.5   571.5 812.8 593.72
3806/585.788 LM278849D 585.788 771.525 479.425
  /LM278810
  /LM278810D
3806/600   600 855 620
3806/600 777/600 600 980 650 1970
3806/600/HCYA8   600 980 365 521
3806/603.25 M280249D 603.25 857.25 622.3
  M280210
  M280210D
3806/609.6 EE649241D 609.6 787.4 61.95
  /649310
  /649311D
3806/625 777/625 625 815 480
3806/630   630 890 650
3806/635-2RS   635 901.7 654.05
3806/650 777/650 65O 1030 560 1720
3806/650 777/650C 650 1030 560 1770
  777/650U 65O 1030 560
  777/650UY 650 1030 560
3806/650/YA 777/650K 650 1030 560 1735
3806/650/C9 777/650U 650 1030 560 1723
3806/650/C2 2G777/650 650 1030 560 1769
3806/650/YA5 777/650K 650 1030 560 1753
3806/650/HCC9 777/650SU 650 1030 560 1810
3806/650/HCYA7   640 1030 560 1770
3806/660 777/660 660 1070 642
3806/660 777/660 660 1070 650 2282
3806/660/C2 2G777/660 660 1070 650 2282
3806/660X4/HC   660.01 855.015 319.99 495
3806/660.011-2RS   660.011 855.015 319.99
3806/660.4-2RS   660.4 812.8 365.125
3806/670   670 950 700
3806/679.45-2RS   679.45 901.7 552.45
3806/680-1   68O 870 460
3806/680-2   680 1000 505
3806/682.625   682.625 965.2 701.675
3806/682.625-2RS   682.625 965.2 701.675
3806/685.8   685.8 876.3 352.45
3806/685.8-2RS   685.8 876.3 352.45
3806/685.8-XRS/HCC9   685.8 876.3 355.6 490
  777/710 710 900 410 650
  779/710 710 900 410
  E779/710 710 9O0 410 650
3806/708.025   708.025 930.275 565.15
3806/708.025-2RS   708.025 930.275 565.15
3806/710-1   710 9O0 410
3806/710-2RS   710 900 410
3806/710/HCYA2   710 900 410 650
3806/710/HCP6YA2   710 900 410 650
3806/710-2   710 1000 730
3806/711.2   711.2 914.4 317.5
3806/711.2-2RS   711.2 914.4 317.5
3806/730   730 1035 755
3806/750 777/750 750 1130 690 2549
3806/750/C2 2G777/750 750 1130 690 2549
3811/750-2R8   750 1220 840
3806/762-2RS   762 1079.5 787.4
3806/780 779/780 780 1220 840
3806/780-RS   78O 1220 840
3806/780/HCC9   780 1220 840 3810
3806/785   785 1040 560
3806/785-RS   785 1040 560
3806/785-1   785 1030 605
3806/785 -2   785 1040 560
3806/749. 3 LM283649DGW 749.3 909.6 605
  /LM283610
  /LM283610D
3806/800   800 1120 820
3806/825.5   825.5 1168.4 844.55
3806/825.5-2RS   825.5 1168.4 844.55
3806/840   840 1170 840
3806/840-2RS   840 1170 840
3806/863.6   863.6 1169.987 844.55
3806/863.6-2RS   863.6 1169.987 844.55


Bearing new models Bearing the old model Shape dimension(mm) Weight
d D T
4T-12580/20   20.638 49.225 19.842 0.185
512205E   25 52 15 0.141
512305E   25 62 17 0.25
922205   25 52 15 0.15
102605   25 62 24
513055   30 58 42 0.49
3245UOlk   3O 70 18.5 O.363
513286A   35 62 18
4T-HM801346/10   38.1 82.55 29.37 0.765
4T-11162/11300   41.275 76.2 18.009 0.338
668709   45 78 16.2 0.309
668909   45 86.5 18.6 0.427
4T-HM903249/HM903210   44.45 95.25 30.958 0.986
KNA439SW/KK35666   44.45 127 66.673 5.41
4T-359S/354X   46.038 85 20.638 0.49
668710   50 88.3 29.7
4T-365/362   50 90 20 0.52
668910   5O 91.2 36.7
K18790/K18720B   50.8 92.075 54.381 1.15
+ K28580/K28521/D
K28584A6/K28521   52.4 92.1 24.6 0.678
511482   60 135 33.45 2.06
KHM212044/KHM212011   60.325 122.238 38.354 2.08
524884   63.5 120 41 2.052
KHM212047/KHM212010   63.5 122.2 38.1 1.93
KHM212047   63.5 122.2 38.1 1.93
/KHM212010T
KHM212047/KHM212011   63.5 122.2 38.1 1.93
KHM212047/KHM212011T2   63.5 122.2 38.1 1.93
KHM212049/KHM212010   63.5 122.2 38.1 1.9
KHM212049/KHM212011   63.5 122.2 38.1 1.9
KHM212049 A6   63.5 122.2 38.1 1.9
/KHM212010A6
KHM518445/KHM518410   88.9 152.8 39.7 2.86
KHM518445 A6   88.9 152.8 39.7 2.86
/KHM518410A6
KHM218248/KHM218210   90 147 40 2.51
KH M218248 A6   90 147 40 2.51
/KHM218210A6
KHM218248SN/   90 147 40 2.58
KHM218210SH
KHM218248   90 147 127 6.88
/KHM218210/DB
LM119348D/LM 119311 /   95.25 136.525 122.235
LMl19311D
K387A/K382B + K3979/   96.838 112.712 61.925 2.19
K3920/DB
K98400/K98789D   101.6 200.025 115.888
KNA56425SW/K56650D   107.95 165.1 63.5 6.37
KHM220149A6   110 157 42 2.89
/KHM220110A6
KHM220149/KHM220110   110 157 42 2.89
48290DW/48220/48220D   127 182.562 158.75
K95525/K95925   133.4 234.9 63.9 11.1
K95525/K95925-3   133.35 234.95 63.5 11.1
48680D/48620/48620D   139.7 200.025 160.34
48680DW/4862/48620D 77928UK 139.725 200.05 160.338 14.5
K9%00/K99100   152.4 254 66.675 12.5
K99600/K99102CD   152.4 254 149.225 26.9
M231649D/M231610   152.4 222.25 174.625
/M231610D
KT611   152.4 317.5 69.85 33
KNA46790 SW/K46720D   165.1 225.4 95.25 10.4
46791D/46720/46721D   165.1 225.425 168.275
KT661   168.275 304.8 69.8 25
67791DW/67720-67720D   177.8 247.65 192.088
LM239530T/46TD/49T/1 3-771 181.808 259.969 161.925 25.2
M238849D/M238810   181.325 269.875 211.138 41.5
-M238810D
KNA67885SW/K67820D   190.5 266.7 109.5 15.3
67885D/67820/67820D   190.5 266.7 188.912
M204648DW.611.611D   198.438   284.163 46.415
M240648DW.611.611D   198.438 284.438 225.425
M240631T.644T.647TD.   200.819 284.163 239.715 52.246
M240631T.644T.   200.819 284.163 239.715
647TD. 611D
93800DW/93125/93127D   203.2 317.5 266.7
M244249D/M244210   220.662 314.325 239.712
/M244210D
47T563927AWH/DPGC   229.4 393.7 269.875 97.5
EE127049D/127135   241.4 349.1 228.6
-127136D
EEl27097D/127135   241.4 349.1 228.6
-127136D
EEl27097D/EEl27135   241.478 349.148 228.6 71.9
-127136D
KEEl27097D/K127135-   241.478 349.128 228.6 71.9
K127136D
LM247748D/10/10D   244.475 327.025 193.675 44.214
LM247748DW/10/10D   244.475 327.025 193.675 44.1
LM247748DW/LM247710   244.475 327.025 193.675 42.7
-LM247710D
M247748DW.710.710D   244.475 327.025 193.675 44.7
M247748DW.710   244.475 327.025 193.675 44.7
.710D/HC
EE126096DM/EE126150   244.475 381 304.8
/EE126151D
LM249748-LM249710D   254 347.662 95.25 69.85
47T513627 AWF/DPGCS   254 358.775 269.875 75.6
47T513627AWF   254 358.775 269.875
/DPGCS130
M249748D/M249710/HC   254 358.775 130.175
M249748D/M249710   254 358.775 169.875 88.9
-M249710D
M249748 D/M249710   254 358.9 169.9 88.9
-M249710D
M249748 DW/M249710   254 358.77 169.875 96.8
M249748 DW/M249710   254 258.9 269.9
-M249710D
M249748 DW/M249710   254 358.77 296.875 88.9
-M249710D
M249710C2/ORM249748D 77951 254 358.77 289.875 86.6
K3M249748 DW/K3   254 358.8 269.9 88.9
M249710-K3M249710
K3M249748DW   254 358.8 269.9 88.9
/K3M249710
-K3M249710D-3
KEE127097D/127135   254 358.8 269.9
-127136D
HM252349D/HM252310   260.35 422.275 317.5
/HM252310D
LM451349DW/10/1OD   266 355 228.6 61.923
LM451349DW/10/1OD   266.7 355.6 228.6
LM451349DW/310/31OD   266.7 355.6 228.6 59.4
  330822B 266.7 355.6 228.6 63
LM451349D/LM263110   266.7 355.6 228.6 65.3
-LM263110D
LM451349DW/LM451310   266.7 355.6 228.6 65.3
-LM451310D
LM451349D/lO/lOD   266.7 355.6 230.188
Bearing new models Bearing the old model Shape dimension(mm) Weight
d D B1 (kg)
380646   230 315 190
380648-1   240 338 248
380648-2   240 350 230
380648/HCC9   240 338 248 69
3806/244.475 EE126096D
/126150/126151D   244.47 381 304.8
380649/C9 77949U 245 380 254 111
380650 3-703 250 385 255 108
380650-1   250 360 186
380650-2   250 365 270
380650-3   250 370 220
3806504   250 381 320
380650-5 77150 250 385 255
380652   260 368 268
380652/HC   260 400 255 117
380652/HC-1   260 40O 255 117
380652/HCC3   260 400 255
380652/HC.63         0.8
380652/HC.53         0.5
3806/266.7   266.7 355.6 228.6
3806/269.875 M252349D 269.875 381 282.58
  /M252310
  /M25231OD
380654-1   270 364 260
380654-2   270 410 222
3806/279.4   279.4 393.7 269.875
380660 77760 300 430 30O
380660-1   300 430 300
380660-2   300 470 310
3806/300.038   300.038 422.275 311.15
3806/304.902 M257248D 304.902 412.648 266.7
  /M257210
  /M257210D
380662-1   310 430 310
380662-2   310 455 222
380662-3   310 460 325
3806/317.5 HM259049D 317.5 447.675 327.025
  /HM295010
  /HM259010D
380664 77764 320 460 338 180
380664/YB2 77864 320 460 380 218
380664-1 77764 320 460 338
380664-2 77864 320 460 380
3806/330.2 M261049D 330.2 444.5 301.625
  /M260110
  /M2601
380668   340 480 350
3806/343.052 LM761649D 343.052 457.098 254
  /LM761610
  /LM761610D
380670 77770 350 590 420 475
380670/HC 77770S 350 590 420 455
380670/C2 2G777770 350 590 420 475
380670/C3 3G777770 350 590 420 475
380671   355 490 316
380672 77872 360 480 375
380672   360 520 370
3806/368.3 HM265049D 368.3
  /HM265010
  /HM265010D
38O674   370 490 292
3806/377.09   377.09 519.862 439.7
380676 77776 380 55O 350 273
380676 2077776 380 620 388 443
380676   380 520 400
3806/385.762 LM665949D 385.762 514.35 317.5
  /LM665910
  /LM665910D
380678/HC   390 510 350
380679 77779 395 545 288.7 194
  77779K 395 545 268.7
380679/YA 77779K 395 545 288.7 194
380679/C9 77779U 395 545 288.7 194
380679/C2 2G77779 395 545 288.7 194
380679/HC   395 545 288.7 194
380679/HCC9 77779S 395 545 288.7 191
380679/C2 2G77779U 395 545 288.7 194
380679/HCYA3   395 545 288.7 194
380679/HCC9W33 77779SUY 396 545 288.7 189
380679X2/HC 77779 395 545 288.7
380680 77880 400 540 280 187
380680/HC 77880S 40O 540 280 177
380680/C2 2G77880 400 540 280 175
380680-1 77880 400 540 280
380680-2   400 564 412
380680-3   400 590 304
380680-XRS/HCC9   400 540 400 248
380680-XRS/HCP69   400 540 400 248
380680X2-XRS/HCC9   400 540 280 179
380680/HCP69   400 540 280 262
380680/HCC2-1/53   400 540 280 3.28
3806/406.4 LM767749D 406.4 546.1 288.625
  /LM767710
  /LM767710D
3806/409.575 M66794D 409.575 546.1 334.962
  /M667910
  /M667910D
3806/416   416 574 480
380684 1077784 420 700 480 745
  1077784K 420 700 480 749
380684 77884 420 760 500 1039
380684/HC   420 560 437 298
380684/HCC9   420 560 437
380684/HCP69   420 560 437 298
380684-XRS/HC9   420 560 437
380684-XRS/HCP69   420 560 437 292
380684-1   420 560 437
380684-2   420 592 432
380684-3   420 650 460
308684/C2 2G77884 420 760 500 1039
380686   430 570 336
3806/431.8 LM86949D 431.8 571.5 279.4
  /LM869410
  /LM869410D
380688 77888 440 620 454 432
380688-1 77888 440 620 454
380688 -2   440 635 470
380688/HC 77888S 440 620 454 434
380688/C9 77888U 440 620 454 432
380688/C2 2G777888 440 620 454 440
380688W   440 620 454
380688/HCC9YA8   440 620 454 422
380688/HC-1C9   440 620 454 422
3806/449.948 M270449D 449.948 594.949 368
  /M270410
  /M270410D
380690-1   450 580 450
380690-2   450 595 368
3806/457.2 L770847D 457.2 596.9 279.4
  /L770810
  /L77081 OD
  /L770810D
380692 77892 460 650 474 495
380692/C9 77892U 46O 650 474 506
380692/C2 2G77892 460 650 474 495
380692 77792 460 730 440 694
380692/YB2 77792 460 730 440 694
380692/C9YB2 77792U 460 730 440 694
380692/C2YB2 2G77792 460 730 440 694
380692-1   460 586 266
380692-2   460 590 360
380692-3   460 610 360
380692-4   460 615 360
380692-5   460 625 421
380692-6   460 650 474
380692-2RS   460 610 360
380692X2 77892 460 650 474 495



Bearing the new model Bearing the old model Shape dimension(mm) Weight
d D T B d1 D1 (kg)
SFTB0001   152.4 244.475 187.325 192.088 170 218 30
SFTB0002   203.2 317.5 266.7 266.7 230 282 76
SFTB0003   206.375 382.575 226 226 220 258 40
SFTB0004   220 295 315 315 236 272 55
SFTB0005   220.662 314.325 239.712 239.712 241 279 56
SFTB0006   228.6 400.05 296.875 296.875 265 346 148
SFTB0007   241.478 349.148 228.6 228.6 265 317 64
SFTB0008   254 358.775 269.875 269.875 272 320 84
SFTB0009   260 365 340 340 280 327 112
SFTB0010   266.7 355.6 228.6 230.188 285 330 68
SFTB0011   276.225 393.7 269.875 269.875 302 358 96
SFTB0012   279.4 393.7 269.875 269.875 302 358 69
SFTB0013   280 395 340 340 302 358 128
SFTB0014   285.75 380.898 244.475 244.475 303 344 74
SFTB0015   300 440 279.4 280.99 334 393 137
SFTB0016   304.648 438.045 179.4 480.99 334 393 139
SFTB0017   304.8 419.1 269.875 269.875 328 380 108
SFTB0018   304.902 412.648 266.7 266.7 328 374 98
SFTB0019   305 438.048 479.4 280.9 334 393 129
SFTB0020   317.5 422.175 269.875 269.875 338 388 98
SFTB0021   333.375 469.9 342.9 342. 9 362 426 182
SFTB0022   343.052 457.098 254 254 362 42O 109
SFTB0023   355.6 482.6 269.875 265.112 380 436 136
SFTB0024   385.762 514.35 317.5 317.5 412 470 174
SFTB0025   406.4 546.1 288.925 288.925 434 498 183
SFTB0026   409.575 546.1 334.962 334.962 434 498 210
SFTB0027   415.925 590.55 434.975 434.975 450 530 379
SFTB0028   416 574 440 440 450 530 341
SFTB0029   430 575 380 380 458 530 267
SFTB0030   440 590 480 480 468 539 371
SFTB0031   450 595 398 398 480 554 301
SFTB0032   457.2 596.9 279.4 276.225 484 550 191
SFTB0033   460 610 360 360 488 555 270
SFTB0034   475 600 368 368 498 560 235
SFTB0035   479.425 679.45 495.3 495.3 360 420 565
SFTB0036   482.6 615.95 330.2 330.2 505 577 232
SFTB0037   489.026 534.873 320.675 320.675 516 588 248
SFTB0038   510 655 379 377 536 594 311
SFTB0039   540 690 434 434 565 636 392
SFTB0040   558.8 736.6 322.262 322.262 595 685 343
SFTB0041   571.5 812.8 593.725 593.725 625 725 998
SFTB0042   585.788 771.525 479.425 479.425 622 708 596
SFTB0043   609.6 787.4 361.95 361.95 645 735 430
SFTB0044   635 901.7 654.05 654.05 692 805 1354
SFTB0045   679.45 901.7 552.45 552.45 722 824 975
SFTB0046   682.625 965.2 701.675 701.675 740 860 651
SFTB0047   685.8 876.3 355.6 355.425 730 818 506
SFTB0048   710 900 410 410 753 842 490
SFTB0049   711.2 914.4 317.5 317.5 760 852 490
SFTB0050   749.3 990.6 605 605 801 900 1274
SFTB0051   762 1079.5 787.4 784.4 825 964 2248
SFTB0052   825.5 1168.4 844. 55 844.55 900 1050 2958
SFTB0053   862.6 1169.987 844. 55 844.55 912 1050 2630




Copyright @ 2003-2010 Shanghai Sourcing Ltd. All rights reserved.
